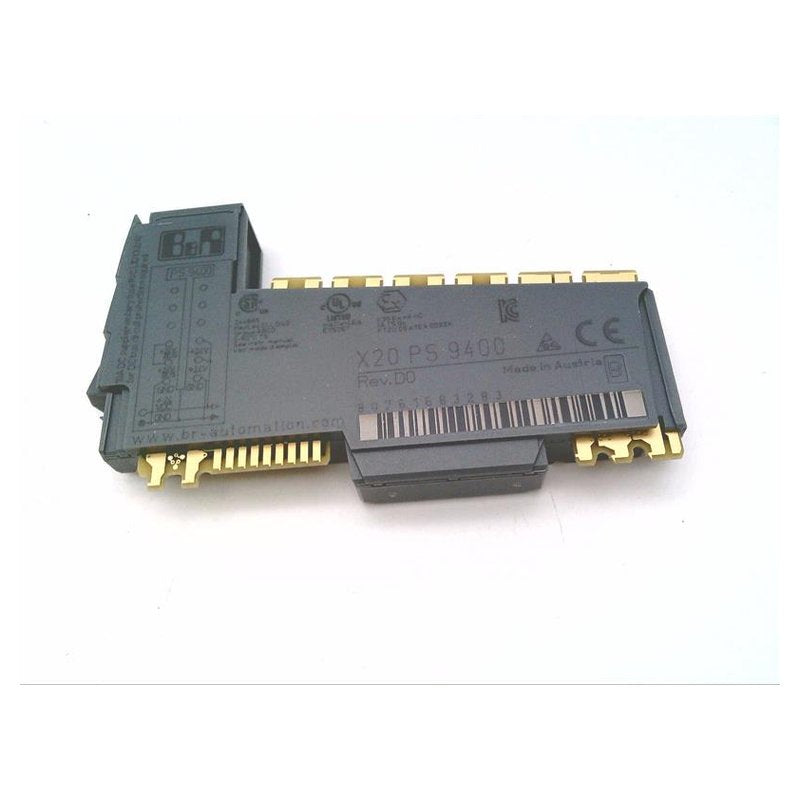

B&R X20PS9400 | Industrial Automation Component

Category: I/O systems > X20 System > System modules for bus controllers

Supply for the bus controller, X2X Link and internal I/O supply Feed and bus controller / X2X Link supply electrically isolated Redundancy of bus controller / X2X Link supply possible by operating multiple supply modules simultaneously Service interface (RS232) The supply module is used together with an X20 bus controller.

It is equipped with a feed for the bus controller, the X2X Link and the internal I/O supply.

Technical Specifications

Short description

• Power supply module = 24 VDC supply module for bus controller, X2X Link power supply and I/O
• Interfaces = 1x RS232 service interface

General information

• Diagnostics
• Module run/error = Yes, using LED status indicator and software
• RS232 data transfer = Yes, using LED status indicator
• Overload = Yes, using LED status indicator and software
• Power consumption
• Internal I/O = 0.6 W
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
• CCS = Yes
• LR = ENV1
• KR = Yes
• ABS = Yes
• BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
• KC = Yes
• B&R ID code = 0x1F8C
• Status indicators = Overload, operating status, module status, RS232
• Power consumption for X2X Link power supply = 1.42 W
• Additional power dissipation caused by actuators (resistive) [W] = -

Bus controller / X2X Link power supply input

• Input voltage = 24 VDC -15% / +20%
• Input current = Max. 0.7 A
• Fuse = Integrated, cannot be replaced
• Reverse polarity protection = Yes

Bus controller / X2X Link power supply output

• Nominal output power = 7 W
• Parallel connection = Yes
• Redundant operation = Yes
• Overload characteristics = Short-circuit proof, temporary overload

Input I/O power supply

• Input voltage = 24 VDC -15% / +20%
• Fuse = Required line fuse: Max. 10 A, slow-blow
• Reverse polarity protection = No

Output I/O power supply

• Nominal output voltage = 24 VDC
• Behavior on short circuit = Required line fuse
• Permissible contact load = 10 A

Interfaces

• Service interface
• Signal = RS232
• Variant = Connection made using 12-pin terminal block X20TB12
• Max. transfer rate = 115.2 kbit/s

Electrical properties

• Electrical isolation = BC/X2X Link supply isolated from BC/X2X Link power supply I/O supply not isolated from I/O power supply, and RS232 not isolated from bus

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = See section "Derating".
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Note = Order 1x terminal block X20TB12 separately. Order 1x bus base X20BB8x separately.
• Pitch = 12.5 +0.2 mm
