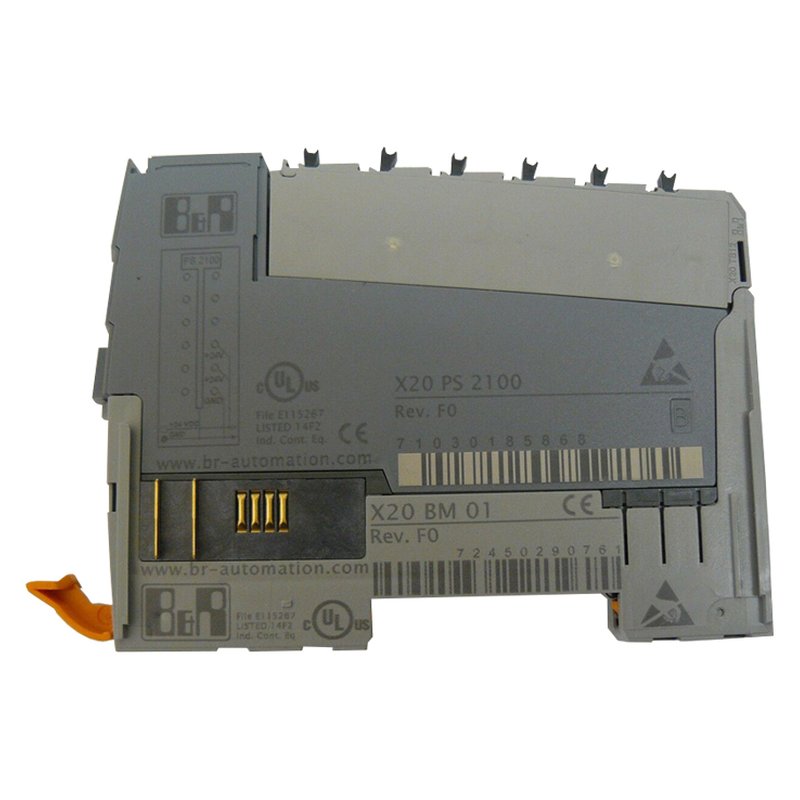

B&R X20PS2100 | Industrial Automation Component

SKU: X20PS2100
(1)
$280.71
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: I/O systems > X20 System > Power supplies

24 VDC supply module for internal I/O supply The supply module is used for the internal I/O supply.

Technical Specifications

Short description

  • Power supply module = 24 VDC power supply module for internal I/O power supply

General information

  • Diagnostics
  • Module run/error = Yes, using LED status indicator and software
  • Power consumption
  • Bus = 0.2 W
  • Internal I/O = 0.6 W
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = In preparation
  • ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
  • UL = cULus E115267 Industrial control equipment
  • HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
  • DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
  • CCS = Yes
  • LR = ENV1
  • KR = Yes
  • ABS = Yes
  • BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
  • KC = Yes
  • B&R ID code = 0x1BBF
  • Status indicators = Operating state, module status
  • Additional power dissipation caused by actuators (resistive) [W] = -

Input I/O power supply

  • Input voltage = 24 VDC -15% / +20%
  • Fuse = Required line fuse: Max. 10 A, slow-blow
  • Reverse polarity protection = No

Output I/O power supply

  • Nominal output voltage = 24 VDC
  • Behavior on short circuit = Required line fuse
  • Permissible contact load = 10 A

Electrical properties

  • Electrical isolation = I/O supply not isolated from I/O power supply

Operating conditions

  • Mounting orientation
  • Horizontal = Yes
  • Vertical = Yes
  • Installation elevation above sea level
  • 0 to 2000 m = No limitation
  • >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
  • Degree of protection per EN 60529 = IP20

Ambient conditions

  • Temperature
  • Operation
  • Horizontal mounting orientation = -25 to 60°C
  • Vertical mounting orientation = -25 to 50°C
  • Derating = -
  • Storage = -40 to 85°C
  • Transport = -40 to 85°C
  • Relative humidity
  • Operation = 5 to 95%, non-condensing
  • Storage = 5 to 95%, non-condensing
  • Transport = 5 to 95%, non-condensing

Mechanical properties

  • Note = Order 1x terminal block X20TB12 separately. Order 1x power supply bus module X20BM01 separately
  • Pitch = 12.5 +0.2 mm
