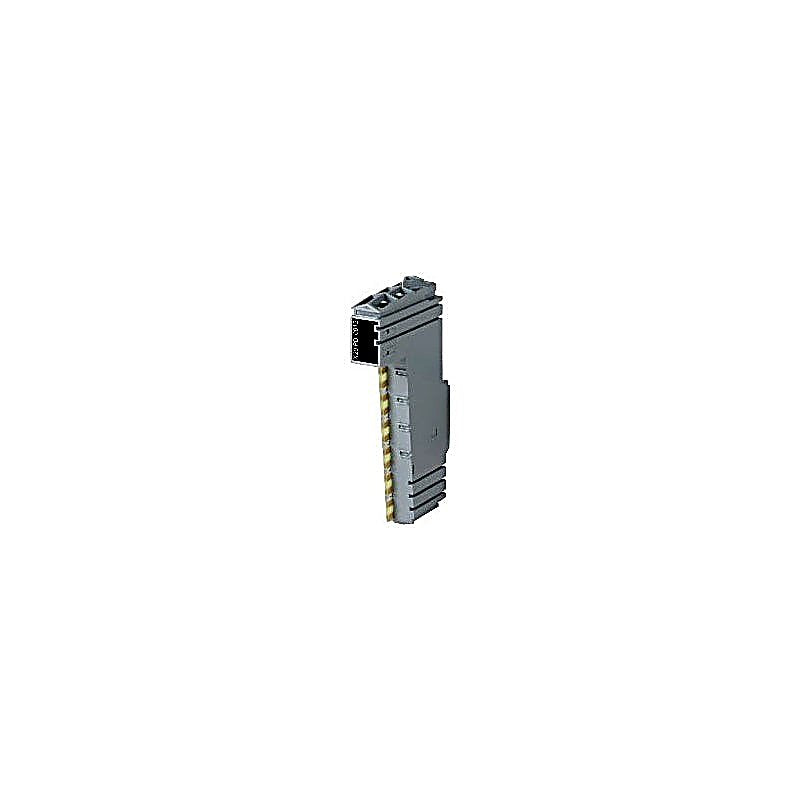

B&R X20PD0012 | Industrial Automation Component

Category: I/O systems > X20 System > Other functions

Integrated exchangeable microfuse Monitoring of the fuse Potential for routing as needed The potential distributor module provides 12x 24 VDC (from the internal I/O supply) on the terminal connections and opens up additional wiring possibilities for actuators and sensors.

The module is equipped with a replaceable microfuse between the 24 VDC potential on the terminal block and the X20 system I/O supply.

The function of the fuse is monitored.

Technical Specifications

Short description

• Potential distributor module = 12x 24 VDC at the terminals

General information

• Diagnostics
• Module run/error = Yes, using LED status indicator and software
• Fuse monitoring = Yes, using LED status indicator and software
• Power consumption
• Bus = 0.12 W
• Internal I/O = 1 W
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
• CCS = Yes
• LR = ENV1
• KR = Yes
• ABS = Yes
• BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
• KC = Yes
• B&R ID code = 0x267E
• Status indicators = Operating state, module status
• Additional power dissipation caused by actuators (resistive) [W] = -

Output I/O power supply

• Nominal output voltage = 24 VDC from the internal I/O power supply
• Fuse = Integrated 6.3 A, slow-blow, can be replaced
• Behavior on short circuit = Integrated fuse
• Permissible contact load = 10 A

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Note = Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately.
• Pitch = 12.5 +0.2 mm
