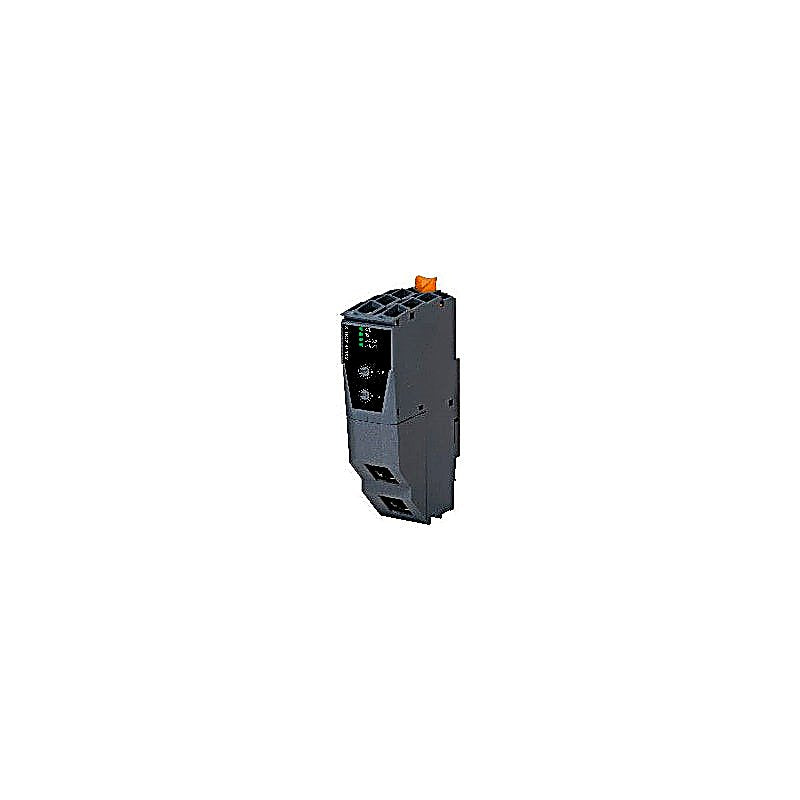

B&R X20IF2181-2 | Industrial Automation Component

Category: I/O systems > X20 System > X20 interface module communication

POWERLINK V2 for real-time Ethernet communication Integrated link selector function (preconfigured) Redundant Managing Node for controller redundancy Integrated hub for efficient cabling (configurable) Configurable ring redundancy Poll response chaining Dynamic Node Allocation (DNA) The interface module is used to expand the X20 CPU for specific applications.

It is equipped with an POWERLINK interface.

POWERLINK is a standard protocol for Fast Ethernet equipped with hard real-time characteristics.

The POWERLINK Standardization Group (EPSG, see www.ethernet-powerlink.org ) ensures its openness and continual development.

Systems with redundant cabling can be implemented easily using POWERLINK.

Unlike ring redundancy, cable redundancy does not require cable looping, which can sometimes be problematic.

This allows the creation of all types of tree structures.

When using a device with the link selector function, data is always transferred via the highest quality network lines.

The link selector function is integrated in the X20IF2181-2 module.

Technical Specifications

Short description

• Communication module = 1x POWERLINK managing or controlled node

General information

• Diagnostics
• Module status = Yes, using LED status indicator and software
• Bus function = Yes, using LED status indicator and software
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
• CCS = Yes
• LR = ENV1
• KR = Yes
• ABS = Yes
• BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
• KC = Yes
• B&R ID code = 0xC3B3
• Status indicators = Module status, bus function
• POWERLINK cable redundancy system = Configurable
• Controller redundancy = Configurable
• Power consumption = 2 W
• Additional power dissipation caused by actuators (resistive) [W] = -

Interfaces

• Transfer
• Physical layer = 100BASE-TX
• Half-duplex = Yes
• Full-duplex = No
• Autonegotiation = Yes
• Auto-MDI/MDIX = Yes
• Fieldbus = POWERLINK managing or controlled node
• Type = Type 5
• Execution = 2x shielded RJ45
• Line length = Max. 100 m between 2 stations (segment length)
• Transfer rate = 100 Mbit/s
• Hub propagation delay = 0.96 to 1 µs
• Controller = POWERLINK MAC

Electrical properties

• Electrical isolation = PLC isolated from POWERLINK (X1 and X2)

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Slot = In the X20 PLC
