B&R

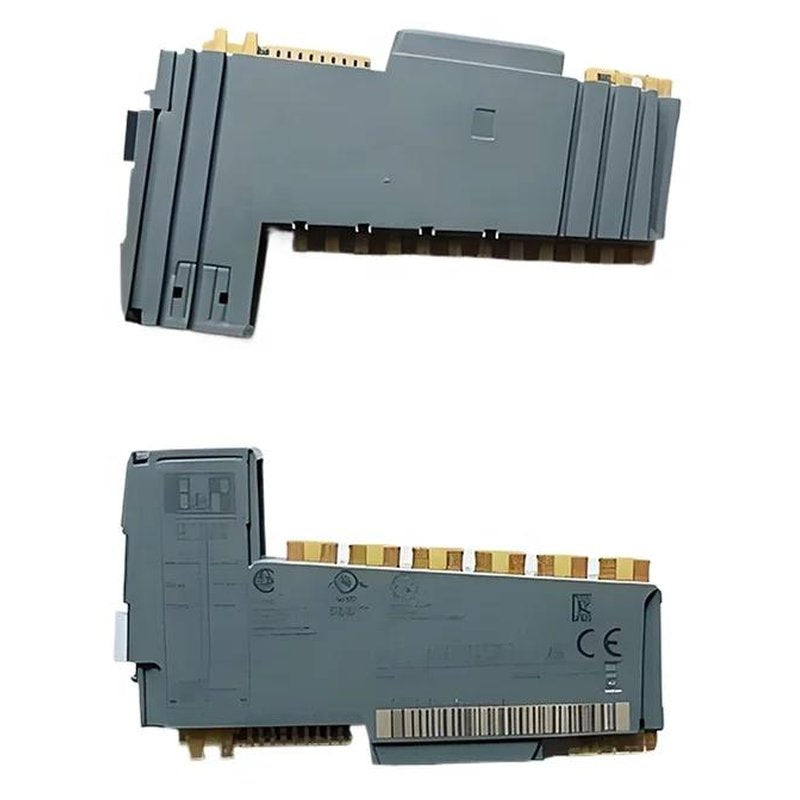

B&R X20IF1063 | Industrial Automation Component

SKU: X20IF1063
(3)
$440.83
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: I/O systems > X20 System > X20 interface module communication

X20 interface module, 1 PROFIBUS DP V0 slave interface, max. 12 Mbit/s, electrically isolated.

Technical Specifications

Short description

  • Communication module = 1x PROFIBUS DP V0 slave

General information

  • Diagnostics
  • Module status = Yes, using LED status indicator
  • Data transfer = Yes, using LED status indicator
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = In preparation
  • ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
  • UL = cULus E115267 Industrial control equipment
  • HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
  • KC = Yes
  • B&R ID code = 0x1F23
  • Status indicators = Module status, data transfer
  • Power consumption = 0.87 W
  • Additional power dissipation caused by actuators (resistive) [W] = -

Interfaces

  • Interface IF1
  • Fieldbus = PROFIBUS DP V0 slave
  • Variant = 9-pin female DSUB connector
  • Max. distance = 1200 m
  • Transfer rate = Max. 12 Mbit/s
  • Terminating resistor = External using T-connector (0G1000.00-090)
  • Controller = VPC3+C

Electrical properties

  • Electrical isolation = PLC isolated from PROFIBUS (IF1)

Operating conditions

  • Mounting orientation
  • Horizontal = Yes
  • Vertical = Yes
  • Installation elevation above sea level
  • 0 to 2000 m = No limitation
  • >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
  • Degree of protection per EN 60529 = IP20

Ambient conditions

  • Temperature
  • Operation
  • Horizontal mounting orientation = -25 to 60°C
  • Vertical mounting orientation = -25 to 50°C
  • Derating = -
  • Storage = -40 to 85°C
  • Transport = -40 to 85°C
  • Relative humidity
  • Operation = 5 to 95%, non-condensing
  • Storage = 5 to 95%, non-condensing
  • Transport = 5 to 95%, non-condensing

Mechanical properties

  • Slot = In the X20 PLC
