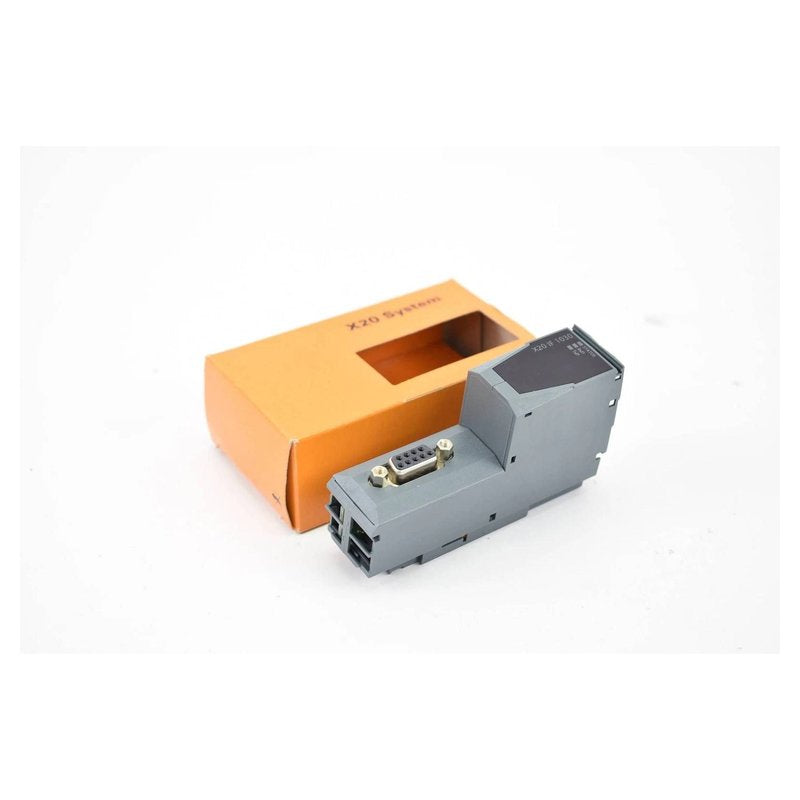

B&R X20IF1030 | Industrial Automation Component

SKU: X20IF1030
(1)
$671.90
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: I/O systems > X20 System > X20 interface module communication

RS485/RS422 connection The interface module is used for application-specific expansion of the X20 controllers.

It is equipped with an RS485/RS422 interface.

Technical Specifications

Short description

  • Communication module = 1x RS485/RS422

General information

  • Diagnostics
  • Module status = Yes, using LED status indicator
  • Data transfer = Yes, using LED status indicator
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = In preparation
  • ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
  • UL = cULus E115267 Industrial control equipment
  • HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
  • DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
  • CCS = Yes
  • LR = ENV1
  • KR = Yes
  • ABS = Yes
  • BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
  • KC = Yes
  • B&R ID code = 0x1F28
  • Status indicators = Module status, data transfer
  • Power consumption = 0.42 W
  • Additional power dissipation caused by actuators (resistive) [W] = -

Interfaces

  • Interface IF1
  • Signal = RS485/RS422
  • Execution = 9-pin female DSUB connector
  • Max. distance = 1200 m
  • Transfer rate = Max. 115.2 kbit/s
  • FIFO buffer = 16 bytes in the transmit and receive directions
  • Terminating resistor = External using T-connector (0G1000.00-090)
  • Controller = UART type 16C550 compatible

Electrical properties

  • Electrical isolation = PLC isolated from RS485/RS422 (IF1)

Operating conditions

  • Mounting orientation
  • Horizontal = Yes
  • Vertical = Yes
  • Installation elevation above sea level
  • 0 to 2000 m = No limitation
  • >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
  • Degree of protection per EN 60529 = IP20

Ambient conditions

  • Temperature
  • Operation
  • Horizontal mounting orientation = -25 to 60°C
  • Vertical mounting orientation = -25 to 50°C
  • Derating = -
  • Storage = -40 to 85°C
  • Transport = -40 to 85°C
  • Relative humidity
  • Operation = 5 to 95%, non-condensing
  • Storage = 5 to 95%, non-condensing
  • Transport = 5 to 95%, non-condensing

Mechanical properties

  • Slot = In the X20 PLC

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.
