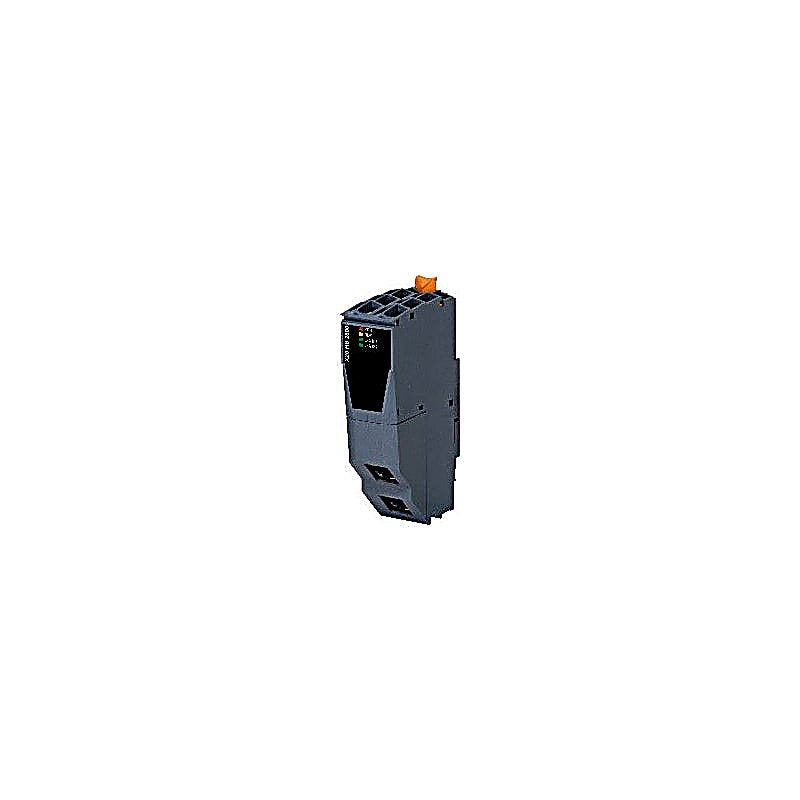

B&R X20HB2880 | Industrial Automation Component

Category: I/O systems > X20 System > System modules for the X20 hub system

Hub expansion module 2x hub 100 BASE-TX POWERLINK bus controller X20BC8083, standalone hub X20HB8880 and the POWERLINK TCP/IP gateway X20HB8815 are equipped with a modular hub extension.

1 or 2 additional slots are available depending on the bus base.

The X20HB2880 hub expansion module can be operated in these slots.

The status of the module and network are indicated by LEDs.

Technical Specifications

Short description

• Hub = 2-port Fast Ethernet hub for hub expansion

General information

• Diagnostics
• Module status = Yes, using LED status indicator
• Bus function = Yes, using LED status indicator
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
• CCS = Yes
• LR = ENV1
• KR = Yes
• ABS = Yes
• BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
• KC = Yes
• Status indicators = Module status, bus function
• Power consumption = 1.17 W
• Additional power dissipation caused by actuators (resistive) [W] = -

Interfaces

• Transfer
• Physical layer = 100BASE-TX
• Half-duplex = Yes
• Full-duplex = No
• Autonegotiation = Yes
• Auto-MDI/MDIX = Yes
• Type = Hub expansion module
• Variant = 2x shielded RJ45
• Line length = Max. 100 m between 2 stations (segment length)
• Transfer rate = 100 Mbit/s
• Hub propagation delay = 0.96 to 1 µs

Electrical properties

• Electrical isolation = Power supply isolated from Ethernet (IF1 and IF2)

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Slot = Hub expansion for X20BC8083 and X20HB8880
