Category: I/O systems > X20 System > Digital outputs

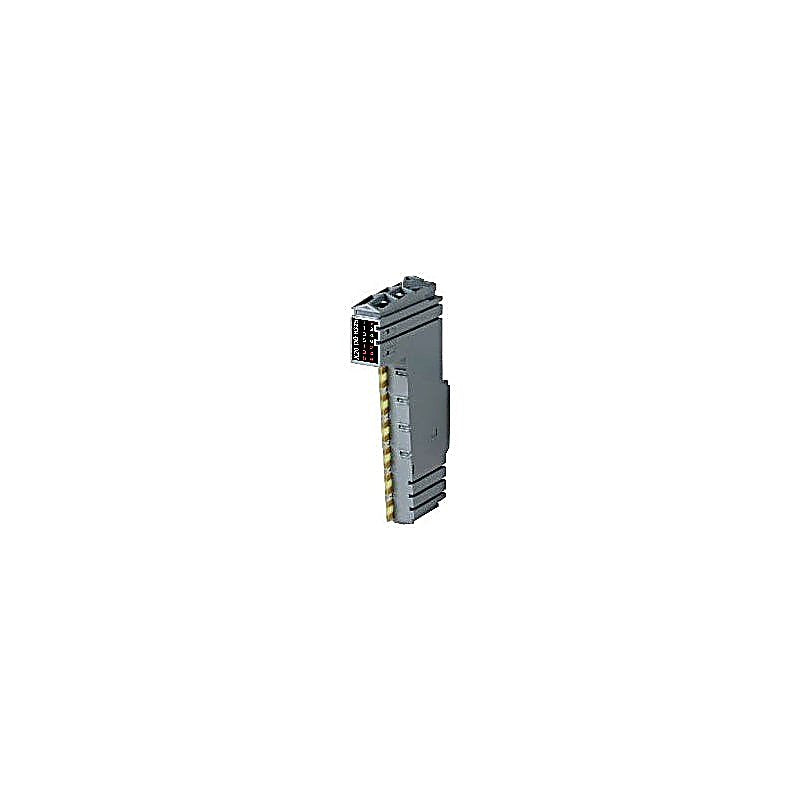

6 digital outputs Source connection 2-wire connections GND for signal supply Integrated output protection 1-wire connection type with 6-pin terminal block Diagnostic functions (open line, short circuit and overload/overtemperature) OSP mode The module is equipped with six outputs for 1 or 2-wire connections with diagnostic functions.
The X20 6-pin terminal block can be used for universal 1-line wiring.
Two-line wiring can be implemented using the 12-pin terminal block.
The outputs on the module are designed for source connections.
Technical Specifications
Short description
- I/O module = 6 digital outputs 24 VDC for 1- or 2-wire connections with diagnostic function
General information
- Diagnostics
- Module run/error = Yes, using LED status indicator and software
- Status outputs = Yes, using LED status indicator and software
- Diagnostic outputs = Yes, using LED status indicator and software
- Power consumption
- Bus = 0.15 W
- Internal I/O = 0.4 W
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = In preparation
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cULus E115267 Industrial control equipment
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
- B&R ID code = 0xE284
- Status indicators = I/O function per channel, diagnostics per channel, operating state, module status
- Additional power dissipation caused by actuators (resistive) [W] = 0.225
Digital outputs
- Diagnostic status
- Open circuit = At <1 mA (typ.), detected if output OFF, delay approx. 10 ms
- Short circuit to 24 VDC = Detected if output OFF, delay approx. 10 ms
- Short circuit to GND = Detected if output ON, delay approx. 10 ms
- Overload/Overtemperature = Detected if output ON, delay approx. 10 ms
- Switching delay
- 0 → 1 = <100 μs
- 1 → 0 = <300 μs
- Switching frequency
- Resistive load = Max. 2000 Hz
- Inductive load = See section "Switching inductive loads".
- Variant = Current-sourcing FET
- Nominal voltage = 24 VDC
- Switching voltage = 24 VDC -15% / +20%
- Nominal output current = 0.5 A
- Total nominal current = 3 A
- Connection type = 1- or 2-wire connections
- Output circuit = Source
- Output protection = Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current") Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads")
- Leakage current when the output is switched off = <160 μA
- R DS(on) = 150 mΩ
- Peak short-circuit current = <40 A
- Switch-on in the event of overload shutdown or short-circuit shutdown = Depends on the module temperature
- Braking voltage when switching off inductive loads = 45 to 52 VDC
- Insulation voltage between channel and bus = 510 V eff
Electrical properties
- Electrical isolation = Channel isolated from bus Channel not isolated from channel and I/O power supply
Operating conditions
- Mounting orientation
- Horizontal = Yes
- Vertical = Yes
- Installation elevation above sea level
- 0 to 2000 m = No limitation
- >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
- Degree of protection per EN 60529 = IP20
Ambient conditions
- Temperature
- Operation
- Horizontal mounting orientation = -25 to 60°C
- Vertical mounting orientation = -25 to 50°C
- Derating = -
- Storage = -40 to 85°C
- Transport = -40 to 85°C
- Relative humidity
- Operation = 5 to 95%, non-condensing
- Storage = 5 to 95%, non-condensing
- Transport = 5 to 95%, non-condensing
Mechanical properties
- Note = Order 1x terminal block X20TB06 or X20TB12 separately. Order 1x bus module X20BM11 separately.
- Pitch = 12.5 +0.2 mm
