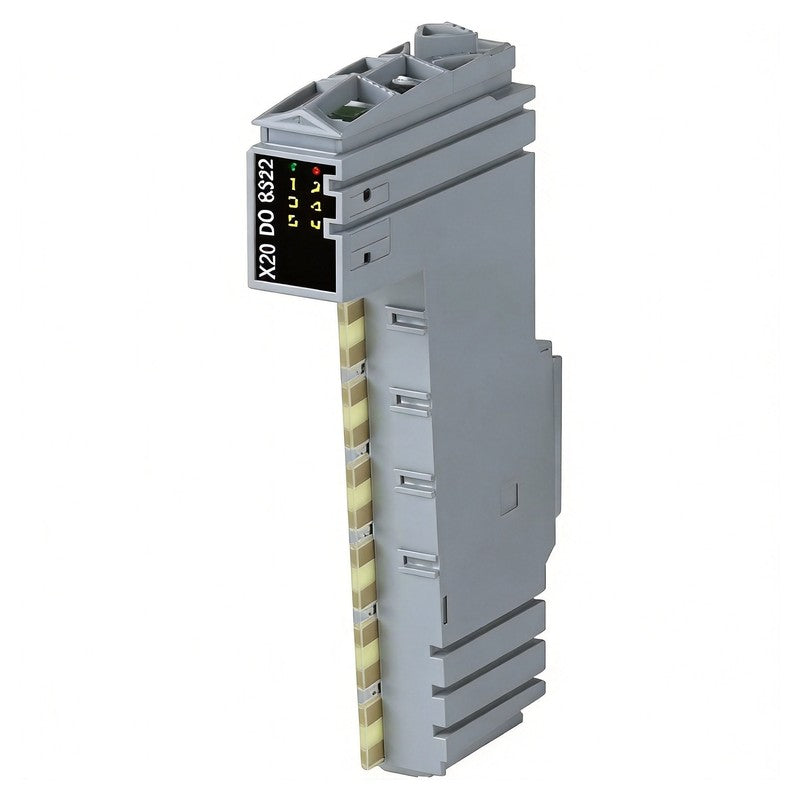

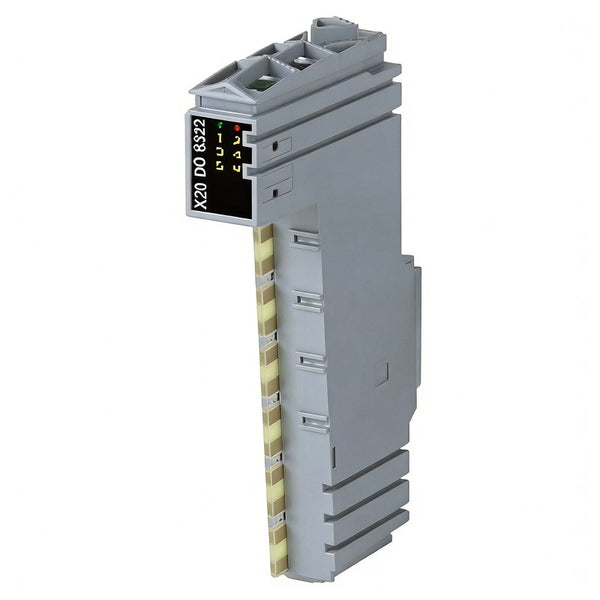

6 digital outputs Source connection 2-wire connections GND for signal supply Integrated output protection 1-wire connection type with 6-pin terminal block OSP mode This module is equipped with 6 outputs with 1- or 2-wire connections and GND for signal power supply.
The outputs are designed for a source circuit. For continuous 1-wire wiring, the 6x X20 terminal block can be used.
2-wire wiring can be implemented with the 12x terminal block.
Technical Specifications
Short description
- I/O module = 6 digital outputs 24 VDC for 1- or 2-wire connections
General information
- Diagnostics
- Module run/error = Yes, using LED status indicator and software
- Outputs = Yes, using LED status indicator and software (output error status)
- Power consumption
- Bus = 0.18 W
- Internal I/O = 0.71 W
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = In preparation
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cULus E115267 Industrial control equipment
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
- KC = Yes
- B&R ID code = 0x1B98
- Status indicators = I/O function per channel, operating state, module status
- Additional power dissipation caused by actuators (resistive) [W] = +0.31
Digital outputs
- Switching delay
- 0 → 1 = <300 µs
- 1 → 0 = <300 µs
- Switching frequency
- Resistive load = Max. 500 Hz
- Inductive load = See section "Switching inductive loads".
- Variant = Current-sourcing FET
- Nominal voltage = 24 VDC
- Switching voltage = 24 VDC -15% / +20%
- Nominal output current = 0.5 A
- Total nominal current = 3 A
- Connection type = 1- or 2-wire connections
- Output circuit = Source
- Output protection = Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current") Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads")
- Diagnostic status = Output monitoring with 10 ms delay
- Leakage current when the output is switched off = 5 µA
- R DS(on) = 210 mΩ
- Peak short-circuit current = <12 A
- Switch-on in the event of overload shutdown or short-circuit shutdown = Approx. 10 ms (depends on the module temperature)
- Braking voltage when switching off inductive loads = Typ. 50 VDC
- Insulation voltage between channel and bus = 500 V eff
Electrical properties
- Electrical isolation = Channel isolated from bus Channel not isolated from channel and I/O power supply
Operating conditions
- Mounting orientation
- Horizontal = Yes
- Vertical = Yes
- Installation elevation above sea level
- 0 to 2000 m = No limitation
- >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
- Degree of protection per EN 60529 = IP20
Ambient conditions
- Temperature
- Operation
- Horizontal mounting orientation = -25 to 60°C
- Vertical mounting orientation = -25 to 50°C
- Derating = -
- Storage = -40 to 85°C
- Transport = -40 to 85°C
- Relative humidity
- Operation = 5 to 95%, non-condensing
- Storage = 5 to 95%, non-condensing
- Transport = 5 to 95%, non-condensing
Mechanical properties
- Note = Order 1x terminal block X20TB06 or X20TB12 separately. Order 1x bus module X20BM11 separately.
- Pitch = 12.5 +0.2 mm
