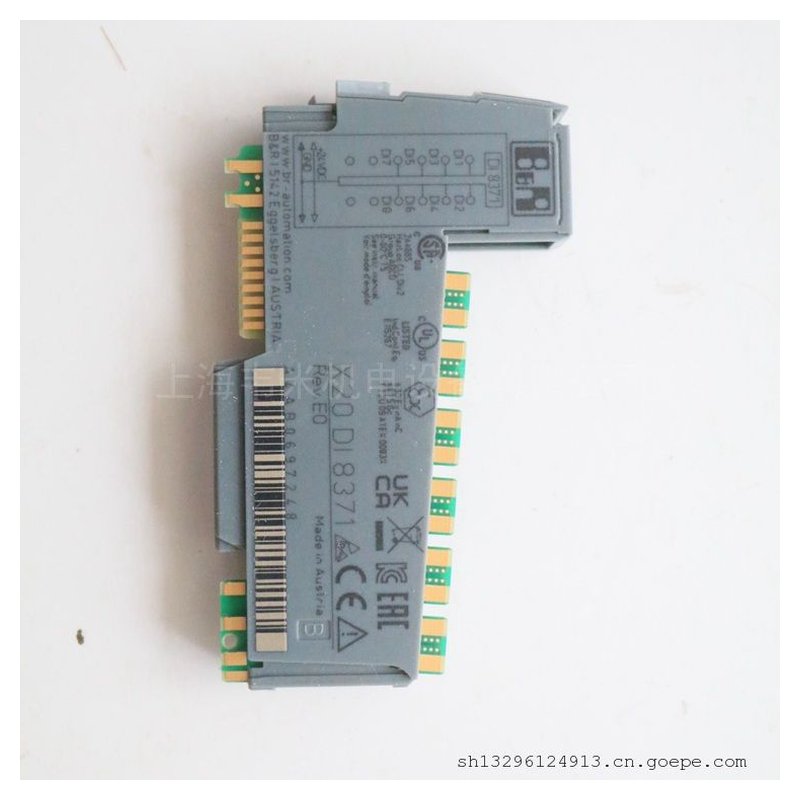

B&R X20DI8371 | Industrial Automation Component

Category: I/O systems > X20 System > Digital inputs

8 digital inputs Sink connection 1-wire connections Software input filter can be configured for entire module The module is equipped with eight inputs for 1-wire connections.

The module is designed for sink input wiring.

Technical Specifications

Short description

• I/O module = 8 digital inputs 24 VDC for 1-wire connections

General information

• Diagnostics
• Module run/error = Yes, using LED status indicator and software
• Power consumption
• Bus = 0.18 W
• Internal I/O = 1.2 W
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
• CCS = Yes
• LR = ENV1
• KR = Yes
• ABS = Yes
• BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
• KC = Yes
• B&R ID code = 0xA4AB
• Status indicators = I/O function per channel, operating state, module status
• Additional power dissipation caused by actuators (resistive) [W] = -

Digital inputs

• Input filter
• Hardware = ≤100 μs
• Software = Default 1 ms, configurable between 0 and 25 ms in 0.2 ms increments
• Switching threshold
• Low = <5 VDC
• High = >15 VDC
• Nominal voltage = 24 VDC
• Input characteristics per EN 61131-2 = Type 1
• Input voltage = 24 VDC -15% / +20%
• Input current at 24 VDC = Typ. 3.75 mA
• Input circuit = Sink
• Connection type = 1-wire connections
• Input resistance = Typ. 6.4 kΩ
• Insulation voltage between channel and bus = 500 V eff

Electrical properties

• Electrical isolation = Channel isolated from bus Channel not isolated from channel

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Note = Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately.
• Pitch = 12.5 +0.2 mm
