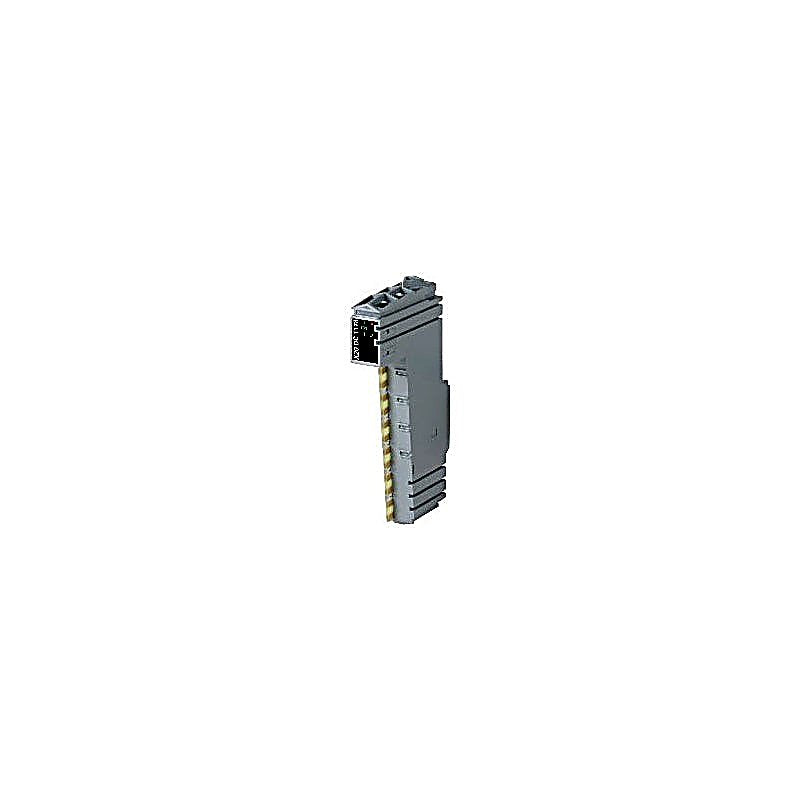

B&R X20DC1178 | Industrial Automation Component

Category: I/O systems > X20 System > Counter functions

1 SSI absolute encoder 5 V Monitoring the data signal 2 additional inputs 5 VDC, 24 VDC and GND for encoder supply NetTime timestamp: Counter change Can be used with a SafeLOGIC controller This module is equipped with 1 input for SSI absolute encoders with 5 V encoder signal.

The data signal is monitored (Data, Data\).

Technical Specifications

Short description

• I/O module = 1 SSI absolute encoder 5 V

General information

• Diagnostics
• Module run/error = Yes, using LED status indicator and software
• Power consumption
• Bus = 0.01 W
• Internal I/O = 1.1 W
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
• CCS = Yes
• LR = ENV1
• KR = Yes
• ABS = Yes
• BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
• KC = Yes
• B&R ID code = 0xA708
• Status indicators = I/O function per channel, operating state, module status
• Additional power dissipation caused by actuators (resistive) [W] = -
• Type of signal lines = Shielded lines must be used for all signal lines.

Digital inputs

• Input filter
• Hardware = ≤2 µs
• Software = -
• Switching threshold
• Low = <5 VDC
• High = >15 VDC
• Quantity = 2
• Nominal voltage = 24 VDC
• Input characteristics per EN 61131-2 = Type 1
• Input voltage = 24 VDC -15% / +20%
• Input current at 24 VDC = Approx. 3.3 mA
• Input circuit = Sink
• Connection type = 3-wire connections
• Input resistance = 7.03 kΩ
• Insulation voltage between channel and bus = 500 V eff

SSI absolute encoder

• Encoder power supply
• 5 VDC = ±5%, module-internal, max. 300 mA
• 24 VDC = Module-internal, max. 300 mA
• Switching threshold
• Low = >1 V
• Encoder inputs = 5 V, symmetrical
• Counter size = Up to 32-bit depending on encoder
• Max. transfer rate = 1 Mbit/s
• Coding = Gray/Binary
• Minimum diff. slew rate = 1 V/μs
• Insulation voltage between encoder and bus = 500 V eff
• Overload characteristics of encoder power supply = Short-circuit proof, overload-proof
• Transfer rate = 125 kbit/s / 250 kbit/s / 500 kbit/s / 1 Mbit/s

Electrical properties

• Electrical isolation = Channel isolated from bus Channel not isolated from channel

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Note = Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately.
• Pitch = 12.5 +0.2 mm
