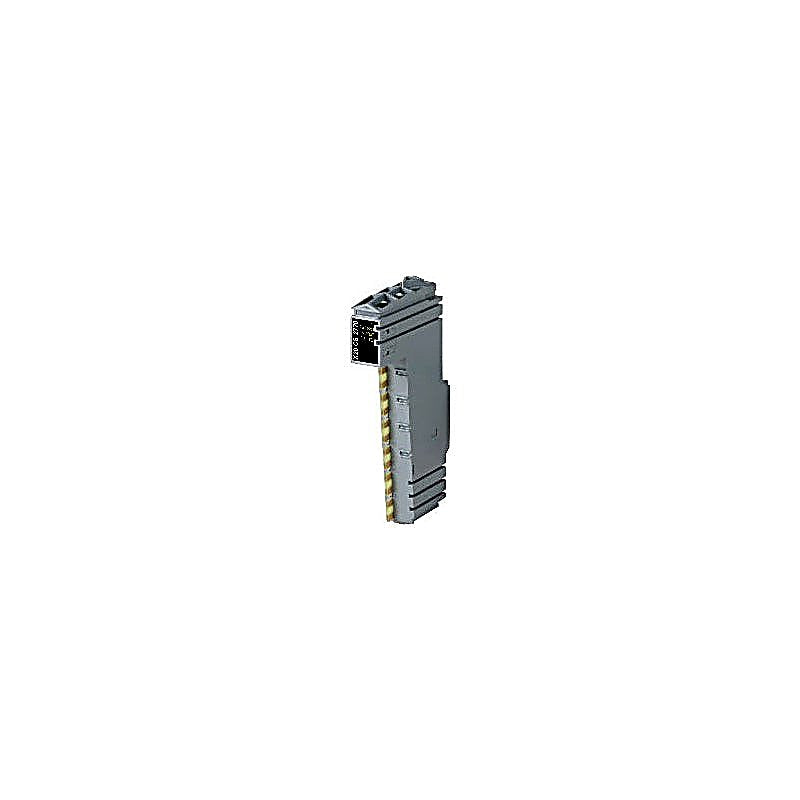

B&R X20CS2770 | Industrial Automation Component

Category: I/O systems > X20 System > X20 electronics module communication

2 CAN bus interfaces for serial, remote connection of complex devices to the X20 system Integrated terminating resistors In addition to the standard I/O, complex devices often need to be connected.

The X20 CS communication modules are intended precisely for cases like this.

As normal X20 electronics modules, they can be placed anywhere on the remote backplane.

Technical Specifications

Short description

• Communication module = 2x CAN bus

General information

• Diagnostics
• Module run/error = Yes, using LED status indicator and software
• Data transfer = Yes, using LED status indicator
• Terminating resistor = Yes, using LED status indicator
• Power consumption
• Bus = 0.01 W
• Internal I/O = 0.55 W (Rev. ≤D0 1.5 W)
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
• CCS = Yes
• LR = ENV1
• KR = Yes
• ABS = Yes
• BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
• KC = Yes
• B&R ID code = 0xA009
• Status indicators = Data transfer, terminating resistor, operating state, module status
• Additional power dissipation caused by actuators (resistive) [W] = -

Interfaces

• Interface IF1
• Signal = CAN bus
• Variant = Connection via 12-pin terminal block X20TB12
• Max. distance = 1000 m
• Transfer rate = Max. 1 Mbit/s
• Terminating resistor = Integrated in module
• Controller = SJA 1000
• Interface IF2

Electrical properties

• Electrical isolation = CAN (IF1, IF2) isolated from bus and I/O power supply CAN (IF1, IF2) not isolated from each other

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = See section "Derating".
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Note = Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately.
• Pitch = 12.5 +0.2 mm
