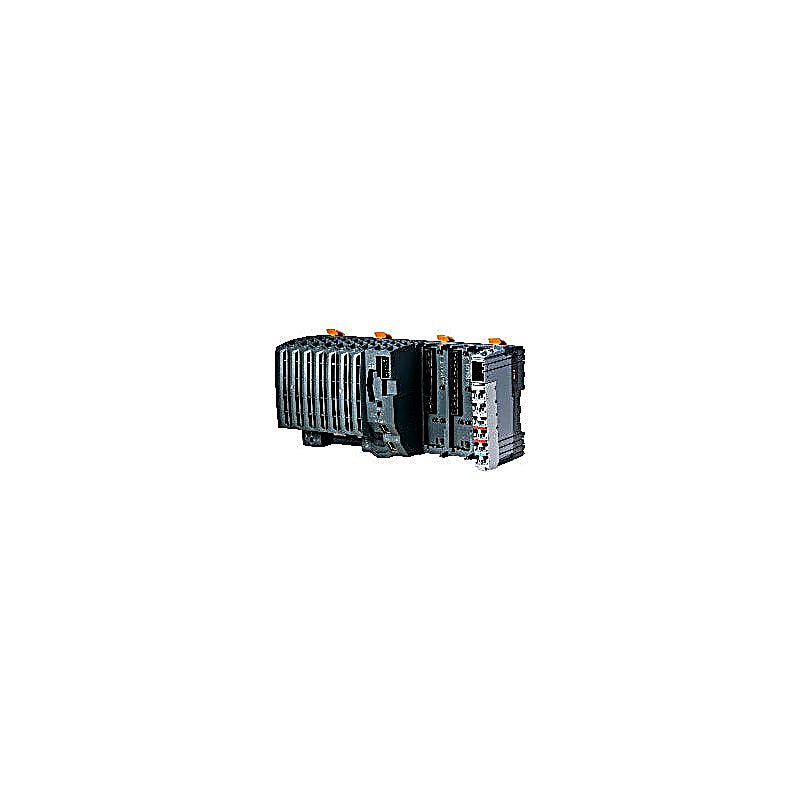

Intel Atom 1.0 GHz processor with an additional I/O processor Onboard Ethernet, POWERLINK with poll response chaining and USB 3 slots for modular interface expansion CompactFlash as removable application memory 256 MB DDR2-SDRAM Controller redundancy possible Fanless The X20CP3585 controller is based on an Atom processor clocked at 1 GHz and equipped with 256 MB DDR2 SDRAM.
USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features.
A Gigabit Ethernet interface is a standard feature.
For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).
The controller is equipped with 3 slots available for X20 communication modules.
Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.
Technical Specifications
Short description
- Interfaces = 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link
- System module = Controller
General information
- Diagnostics
- Battery = Yes, using LED status indicator and software
- CPU function = Yes, using LED status indicator
- CompactFlash = Yes, using LED status indicator
- Ethernet = Yes, using LED status indicator
- POWERLINK = Yes, using LED status indicator
- Temperature = Yes, using software register
- Support
- Controller redundancy = Yes
- Storage health data support = Yes
- ACOPOS support = Yes
- Visual Components support = Yes
- Power consumption
- Internal I/O = 0.6 W
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = Non-compliant
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cULus E115267 Industrial control equipment
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
- KC = Yes
- B&R ID code = 0xC3AF
- Cooling = Fanless
- Status indicators = CPU function, Ethernet, POWERLINK, CompactFlash, battery
- Power consumption without interface module and USB = 8.8 W
- Power consumption for X2X Link power supply = 1.42 W
- Additional power dissipation caused by actuators (resistive) [W] = -
CPU and X2X Link power supply
- Input voltage = 24 VDC -15% / +20%
- Input current = Max. 1.5 A
- Fuse = Integrated, cannot be replaced
- Reverse polarity protection = Yes
X2X Link power supply output
- Nominal output power = 7 W
- Parallel connection = Yes
- Redundant operation = Yes
Input I/O power supply
- Input voltage = 24 VDC -15% / +20%
- Fuse = Required line fuse: Max. 10 A, slow-blow
Output I/O power supply
- Nominal output voltage = 24 VDC
- Permissible contact load = 10 A
Power supply - General information
- Diagnostics
- RS232 data transfer = Yes, using LED status indicator
- Module run/error = Yes, using LED status indicator and software
- Overload = Yes, using LED status indicator and software
- Electrical isolation
- I/O supply - I/O power supply = No
- CPU/X2X Link supply - CPU/X2X Link power supply = Yes
- Status indicators = Overload, operating status, module status, RS232 data transfer
Controller
- Processor
- L1 cache
- Data code = 24 kB
- Program code = 32 kB
- Type = Atom E640T
- Clock frequency = 1 GHz
- L2 cache = 512 kB
- Data buffering
- Battery monitoring = Yes
- Lithium battery = Min. 2 years at 23°C ambient temperature
- Standard memory
- RAM = 256 MB DDR2 SDRAM
- User RAM = 1 MB SRAM
- CompactFlash slot = 1
- Real-time clock = Nonvolatile, resolution 1 s, -10 to 10 ppm accuracy at 25°C
- Floating point unit (FPU) = Yes
- Integrated I/O processor = Processes I/O data points in the background
- Modular interface slots = 3
- Remanent variables = Max. 256 kB
- Shortest task class cycle time = 200 µs
- Typical instruction cycle time = 0.0044 µs
Interfaces
- Interface IF1
- Signal = RS232
- Variant = Connection via 12-pin terminal block X20TB12
- Max. distance = 900 m
- Transfer rate = Max. 115.2 kbit/s
- Interface IF2
- Transfer
- Physical layer = 10BASE-T/100BASE-TX/1000BASE-T
- Half-duplex = Yes
- Full-duplex = Yes
- Autonegotiation = Yes
- Auto-MDI/MDIX = Yes
- Signal = Ethernet
- Variant = 1x RJ45 shielded
- Line length = Max. 100 m between 2 stations (segment length)
- Transfer rate = 10/100/1000 Mbit/s
- Interface IF3
- Physical layer = 100BASE-TX
- Full-duplex = POWERLINK mode: No / Ethernet mode: Yes
- Fieldbus = POWERLINK (V1/V2) managing or controlled node
- Type = Type 4
- Transfer rate = 100 Mbit/s
- Interface IF4
- Type = USB 1.1/2.0
- Variant = Type A
- Max. output current = 0.5 A
- Interface IF5
- Interface IF6
- Fieldbus = X2X Link master
