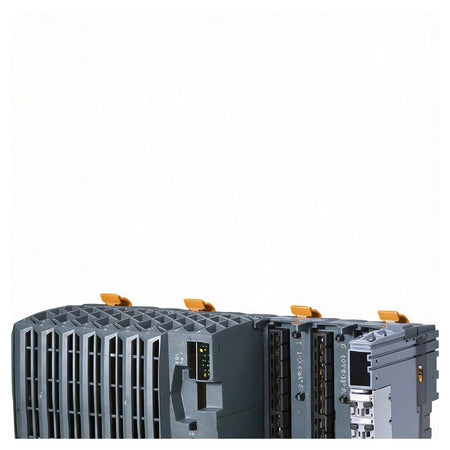

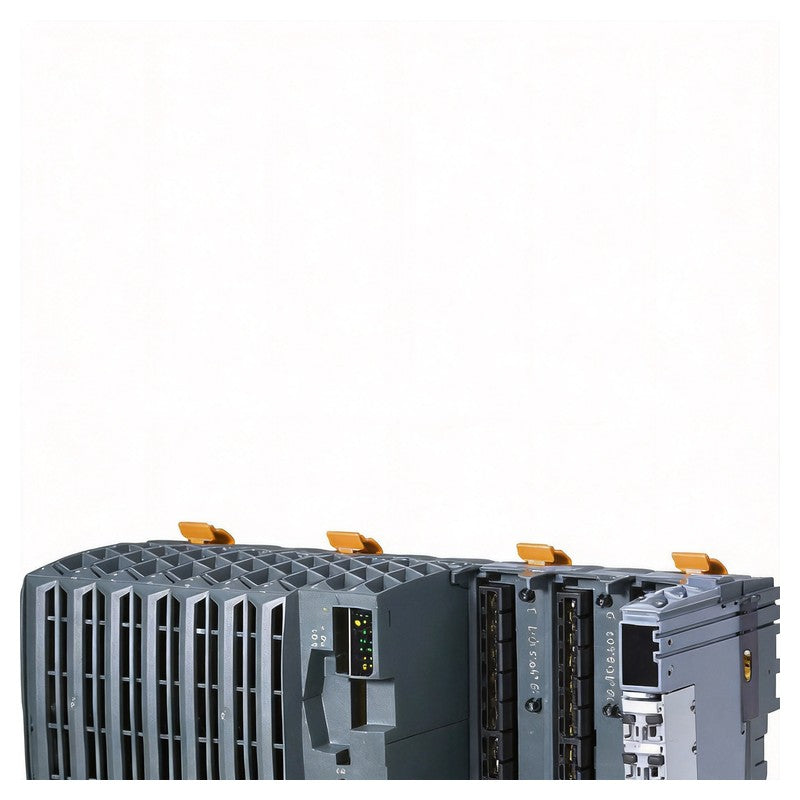

Intel Atom 600 MHz processor with an additional I/O-processor Onboard Ethernet, POWERLINK with poll response chaining and USB 3 slots for modular interface expansion CompactFlash as removable application memory 256 MB DDR2-SDRAM Controller redundancy possible Fanless The X20CP3585 controller is based on an Atom processor clocked at 0.6 GHz and equipped with 256 MB DDR2 SDRAM.
USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features.
A Gigabit Ethernet interface is a standard feature.
For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).
The controller is equipped with 3 slots available for X20 communication modules.
Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.
Technical Specifications
Short description
- Interfaces = 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link
- System module = Controller
General information
- Diagnostics
- Battery = Yes, using LED status indicator and software
- CPU function = Yes, using LED status indicator
- CompactFlash = Yes, using LED status indicator
- Ethernet = Yes, using LED status indicator
- POWERLINK = Yes, using LED status indicator
- Temperature = Yes, using software register
- Support
- Controller redundancy = Yes
- Storage health data support = Yes
- ACOPOS support = Yes
- Visual Components support = Yes
- Power consumption
- Internal I/O = 0.6 W
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = Non-compliant
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cULus E115267 Industrial control equipment
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
- KC = Yes
- B&R ID code = 0xC3AD
- Cooling = Fanless
- Status indicators = CPU function, Ethernet, POWERLINK, CompactFlash, battery
- Power consumption without interface module and USB = 8.6 W
- Power consumption for X2X Link power supply = 1.42 W
- Additional power dissipation caused by actuators (resistive) [W] = -
CPU and X2X Link power supply
- Input voltage = 24 VDC -15% / +20%
- Input current = Max. 1.5 A
- Fuse = Integrated, cannot be replaced
- Reverse polarity protection = Yes
X2X Link power supply output
- Nominal output power = 7 W
- Parallel connection = Yes
- Redundant operation = Yes
Input I/O power supply
- Input voltage = 24 VDC -15% / +20%
- Fuse = Required line fuse: Max. 10 A, slow-blow
Output I/O power supply
- Nominal output voltage = 24 VDC
- Permissible contact load = 10 A
Power supply - General information
- Diagnostics
- RS232 data transfer = Yes, using LED status indicator
- Module run/error = Yes, using LED status indicator and software
- Overload = Yes, using LED status indicator and software
- Electrical isolation
- I/O supply - I/O power supply = No
- CPU/X2X Link supply - CPU/X2X Link power supply = Yes
- Status indicators = Overload, operating status, module status, RS232 data transfer
Controller
- Processor
- L1 cache
- Data code = 24 kB
- Program code = 32 kB
- Type = Atom E620T
- Clock frequency = 0.6 GHz
- L2 cache = 512 kB
- Data buffering
- Battery monitoring = Yes
- Lithium battery = Min. 2 years at 23°C ambient temperature
- Standard memory
- RAM = 256 MB DDR2 SDRAM
- User RAM = 1 MB SRAM
- CompactFlash slot = 1
- Real-time clock = Nonvolatile, resolution 1 s, -10 to 10 ppm accuracy at 25°C
- Floating point unit (FPU) = Yes
- Integrated I/O processor = Processes I/O data points in the background
- Modular interface slots = 3
- Remanent variables = Max. 256 kB
- Shortest task class cycle time = 400 µs
- Typical instruction cycle time = 0.0075 µs
Interfaces
- Interface IF1
- Signal = RS232
- Variant = Connection via 12-pin terminal block X20TB12
- Max. distance = 900 m
- Transfer rate = Max. 115.2 kbit/s
- Interface IF2
- Transfer
- Physical layer = 10BASE-T/100BASE-TX/1000BASE-T
- Half-duplex = Yes
- Full-duplex = Yes
- Autonegotiation = Yes
- Auto-MDI/MDIX = Yes
- Signal = Ethernet
- Variant = 1x RJ45 shielded
- Line length = Max. 100 m between 2 stations (segment length)
- Transfer rate = 10/100/1000 Mbit/s
- Interface IF3
- Physical layer = 100BASE-TX
- Full-duplex = POWERLINK mode: No / Ethernet mode: Yes
- Fieldbus = POWERLINK (V1/V2) managing or controlled node
- Type = Type 4
- Transfer rate = 100 Mbit/s
- Interface IF4
- Type = USB 1.1/2.0
- Variant = Type A
- Max. output current = 0.5 A
- Interface IF5
- Interface IF6
- Fieldbus = X2X Link master
