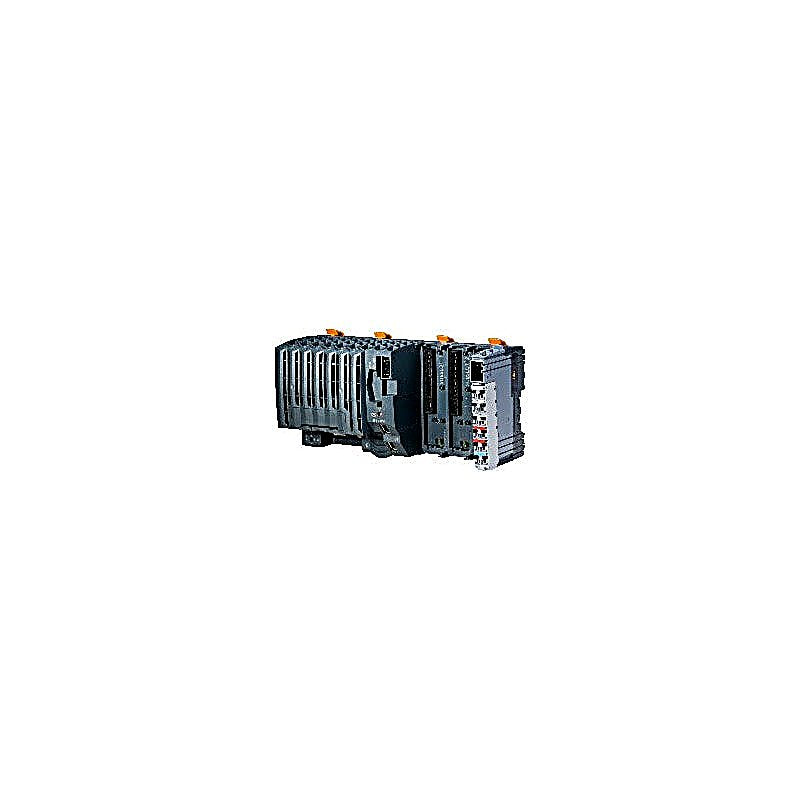

Intel Celeron 400 Performance with additional I/O processor Ethernet, POWERLINK and USB onboard 3 slots for modular interface expansion CompactFlash as removable application memory Fan-free Extremely compact The X20CP3485-1 is a powerful CPU for the X20 System.
This CPU is especially useful for applications that require short cycle times, have to process very large amounts of data, or carry out floating point operations.
Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication.
There are also three multi-purpose slots for additional interface modules.
The CPU models X20CP3485 and X20CP3485-1 differ only by SDRAM size.
Technical Specifications
Short description
- Interfaces = 1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
- System module = CPU
General information
- Diagnostics
- Battery = Yes, using LED status indicator and software
- CPU function = Yes, using LED status indicator
- CompactFlash = Yes, using LED status indicator
- Ethernet = Yes, using LED status indicator
- POWERLINK = Yes, using LED status indicator
- Overtemperature = Yes, using LED status indicator
- Support
- ACOPOS support = Yes
- Visual Components support = Yes
- Internal power consumption of X2X Link and I/O power supply
- Bus = 1.42 W
- Internal I/O = 0.6 W
- Electrical isolation
- IF1 - IF2 = Yes
- IF1 - IF3 = Yes
- IF1 - IF4 = No
- IF1 - IF5 = No
- IF1 - IF6 = Yes
- IF2 - IF4 = Yes
- IF2 - IF5 = Yes
- IF3 - IF4 = Yes
- IF3 - IF5 = Yes
- IF4 - IF5 = No
- IF4 - IF6 = Yes
- IF5 - IF6 = Yes
- PLC - IF1 = No
- PLC - IF2 = Yes
- PLC - IF3 = Yes
- PLC - IF4 = No
- PLC - IF5 = No
- PLC - IF6 = Yes
- Certifications
- CE = Yes
- UKCA = Yes
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cULus E115267 Industrial control equipment
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
- KC = Yes
- B&R ID code = 0xA2AC
- Cooling = Fanless
- Status indicators = CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, battery
- Diagnostics - Fan = -
- Power consumption without memory card, interface module and USB = 10.5 W
- Additional power dissipation caused by actuators (resistive) [W] = -
CPU and X2X Link power supply
- Input voltage = 24 VDC -15% / +20%
- Input current = Max. 2.2 A
- Fuse = Integrated, cannot be replaced
- Reverse polarity protection = Yes
X2X Link power supply output
- Nominal output power = 7 W
- Parallel connection = Yes
- Redundant operation = Yes
Input I/O power supply
- Input voltage = 24 VDC -15% / +20%
- Fuse = Required line fuse: Max. 10 A, slow-blow
Output I/O power supply
- Nominal output voltage = 24 VDC
- Permissible contact load = 10 A
Power supply - General information
- Diagnostics
- RS232 data transfer = Yes, using LED status indicator
- Module run/error = Yes, using LED status indicator and software
- Overload = Yes, using LED status indicator and software
- Electrical isolation
- I/O supply - I/O power supply = No
- CPU/X2X Link supply - CPU/X2X Link power supply = Yes
- Status indicators = Overload, operating status, module status, RS232 data transfer
Controller
- Processor
- Type = Celeron 400
- L2 cache = 256 kB
- L1 cache for data and program code = 2x 16 kB
- Data buffering
- Battery monitoring = Yes
- Lithium battery = At least 3 years
- Standard memory
- RAM = 64 MB SDRAM
- User RAM = 1 MB SRAM
- CompactFlash slot = 1
- Real-time clock = Nonvolatile, resolution 1 s, -20 to 20 ppm accuracy at 25°C
- FPU = Yes
- Integrated I/O processor = Processes I/O data points in the background
- Modular interface slots = 3
- Remanent variables = Max. 256 kB
- Shortest task class cycle time = 400 µs
- Typical instruction cycle time = 0.0055 µs
Interfaces
- Interface IF1
- Type = RS232
- Variant = Connection via 12-pin terminal block TB12
- Transfer rate = Max. 115.2 kbit/s
- Interface IF2
- Type = Ethernet
- Variant = Shielded RJ45
- Line length = Max. 100 m between 2 stations (segment length)
- Transfer rate = 10/100 Mbit/s
- Interface IF3
- Fieldbus = POWERLINK V1/V2
- Type = 100BASE-T (ANSI/IEEE 802.3)
- Transfer rate = 100 Mbit/s
- Interface IF4
- Type = USB 1.1
- Variant = Type A
- Max. output current = 0.5 A
- Interface IF5
- Interface IF6
- Type = X2X Link master
- Quantity = 1
