Category: PLC systems > X20 System > X20 PLC

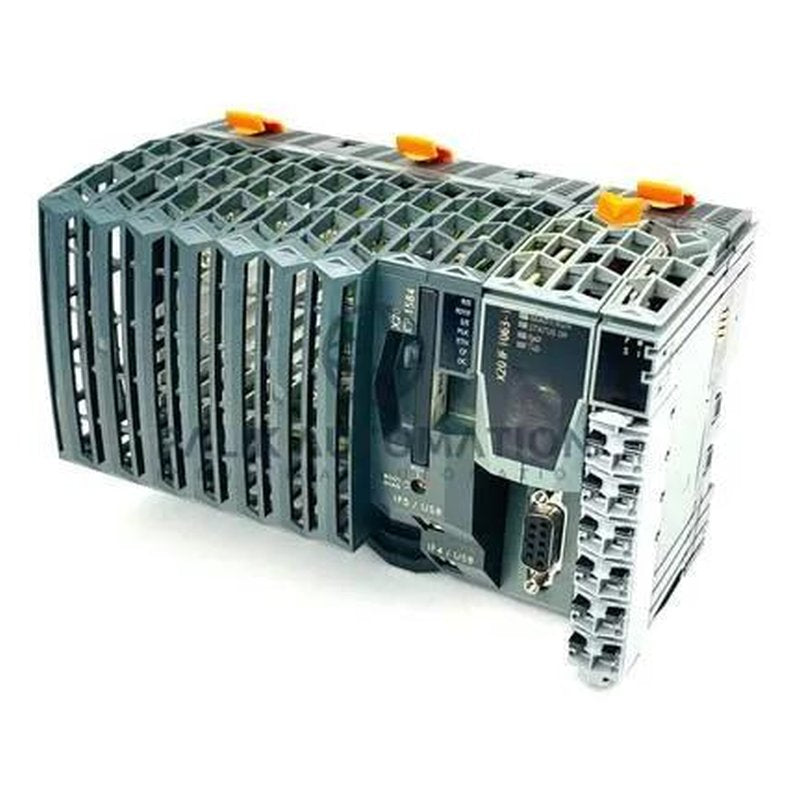

Intel Celeron 650 Performance with additional I/O processor Ethernet, POWERLINK and USB onboard 1 slot for modular interface expansion CompactFlash as removable application memory Fan can be exchanged from the outside, tool-free Extremely compact The X20CP1486 is a high-performance CPU for the X20 System.
This CPU can be used anywhere from high-end applications in machine manufacturing to demanding tasks in process control.
Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication.
The only differences from the X20CP3486 are that the X20CP1486 only has one slot for interface modules and a smaller width.
Technical Specifications
Short description
- Interfaces = 1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
- System module = CPU
General information
- Diagnostics
- Battery = Yes, using LED status indicator and software
- CPU function = Yes, using LED status indicator
- CompactFlash = Yes, using LED status indicator
- Ethernet = Yes, using LED status indicator
- POWERLINK = Yes, using LED status indicator
- Overtemperature = Yes, using LED status indicator
- Support
- ACOPOS support = Yes
- Visual Components support = Yes
- Internal power consumption of X2X Link and I/O power supply
- Bus = 1.42 W
- Internal I/O = 0.6 W
- Electrical isolation
- IF1 - IF2 = Yes
- IF1 - IF3 = Yes
- IF1 - IF4 = No
- IF1 - IF5 = No
- IF1 - IF6 = Yes
- IF2 - IF4 = Yes
- IF2 - IF5 = Yes
- IF3 - IF4 = Yes
- IF3 - IF5 = Yes
- IF4 - IF5 = No
- IF4 - IF6 = Yes
- IF5 - IF6 = Yes
- PLC - IF1 = No
- PLC - IF2 = Yes
- PLC - IF3 = Yes
- PLC - IF4 = No
- PLC - IF5 = No
- PLC - IF6 = Yes
- Certifications
- CE = Yes
- UKCA = Yes
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cULus E115267 Industrial control equipment
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
- KC = Yes
- B&R ID code = 0x2164
- Cooling = Fanless with derating (see operating conditions) Replaceable fan for full temperature range Fan monitored
- Status indicators = CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, battery
- Diagnostics - Fan = Yes, using software
- Power consumption without memory card, interface module and USB = 13.5 W
- Additional power dissipation caused by actuators (resistive) [W] = -
CPU and X2X Link power supply
- Input voltage = 24 VDC -15% / +20%
- Input current = Max. 2.2 A
- Fuse = Integrated, cannot be replaced
- Reverse polarity protection = Yes
X2X Link power supply output
- Nominal output power = 7 W
- Parallel connection = Yes
- Redundant operation = Yes
Input I/O power supply
- Input voltage = 24 VDC -15% / +20%
- Fuse = Required line fuse: Max. 10 A, slow-blow
Output I/O power supply
- Nominal output voltage = 24 VDC
- Permissible contact load = 10 A
Power supply - General information
- Diagnostics
- RS232 data transfer = Yes, using LED status indicator
- Module run/error = Yes, using LED status indicator and software
- Overload = Yes, using LED status indicator and software
- Electrical isolation
- I/O supply - I/O power supply = No
- CPU/X2X Link supply - CPU/X2X Link power supply = Yes
- Status indicators = Overload, operating status, module status, RS232 data transfer
Controller
- Processor
- Type = Celeron 650
- L2 cache = 256 kB
- L1 cache for data and program code = 2x 16 kB
- Data buffering
- Battery monitoring = Yes
- Lithium battery = At least 3 years
- Standard memory
- RAM = 64 MB SDRAM
- User RAM = 1 MB SRAM
- CompactFlash slot = 1
- Real-time clock = Nonvolatile, resolution 1 s, -20 to 20 ppm accuracy at 25°C
- FPU = Yes
- Integrated I/O processor = Processes I/O data points in the background
- Modular interface slots = 1
- Remanent variables = Max. 256 kB
- Shortest task class cycle time = 200 µs
- Typical instruction cycle time = 0.0034 µs
Interfaces
- Interface IF1
- Type = RS232
- Variant = Connection via 12-pin terminal block TB12
- Transfer rate = Max. 115.2 kbit/s
- Interface IF2
- Type = Ethernet
- Variant = Shielded RJ45
- Line length = Max. 100 m between 2 stations (segment length)
- Transfer rate = 10/100 Mbit/s
- Interface IF3
- Fieldbus = POWERLINK V1/V2
- Type = 100BASE-T (ANSI/IEEE 802.3)
- Transfer rate = 100 Mbit/s
- Interface IF4
- Type = USB 1.1
- Variant = Type A
- Max. output current = 0.5 A
- Interface IF5
- Interface IF6
- Type = X2X Link master
- Quantity = 1
