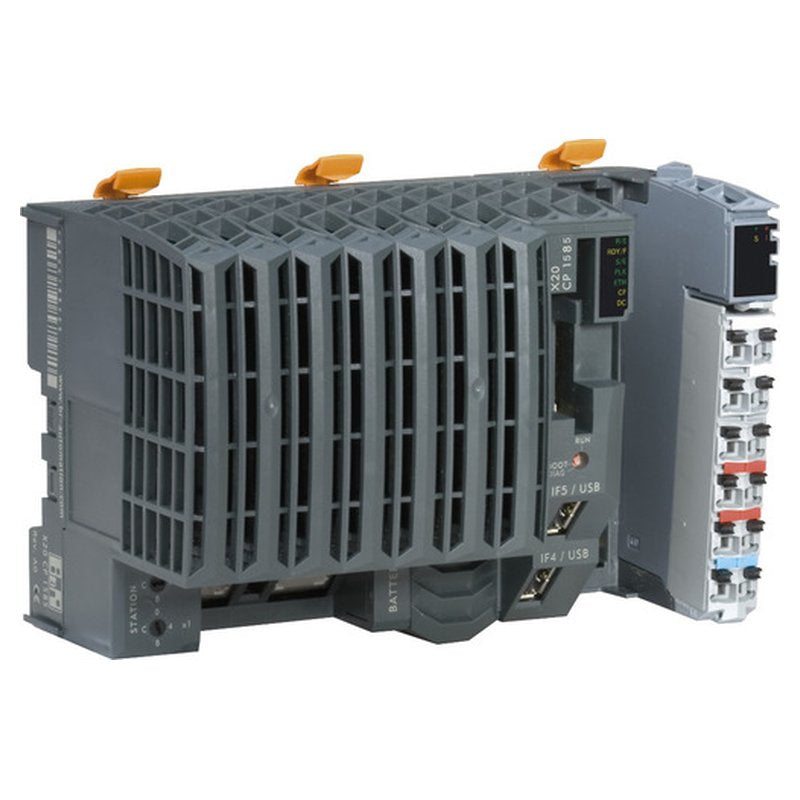

Intel x86-based, 100 MHz-compatible CPU with integrated I/O processor Onboard Ethernet, POWERLINK and USB 1 slot for modular interface expansion CompactFlash as removable application memory Fanless The Intel x86-based, 100 MHz-compatible X20CP1483 represents the entry-level X20 controllers.
With an optimum price/performance ratio, it has the same basic features as all of the larger controllers.
Onboard Ethernet and USB are standard.
In addition, the controller has a POWERLINK connection for hard real-time communication.
Another slot is available for an additional interface module to increase flexibility.
The only difference between the two variants X20CP1483 and X20CP1483-1 is the size of the SDRAM.
Technical Specifications
Short description
- Interfaces = 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link
- System module = Controller
General information
- Diagnostics
- Battery = Yes, using LED status indicator and software
- CPU function = Yes, using LED status indicator
- CompactFlash = Yes, using LED status indicator
- Ethernet = Yes, using LED status indicator
- POWERLINK = Yes, using LED status indicator
- Temperature = Yes, using software register
- Support
- ACOPOS support = Yes
- Visual Components support = Yes
- Power consumption
- Internal I/O = 0.6 W
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = Non-compliant
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cULus E115267 Industrial control equipment
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
- KC = Yes
- B&R ID code = 0xA239
- Cooling = Fanless
- Status indicators = CPU function, Ethernet, POWERLINK, CompactFlash, battery
- Power consumption without memory card, interface module and USB = 6 W
- Power consumption for X2X Link power supply = 1.42 W
- Additional power dissipation caused by actuators (resistive) [W] = -
CPU and X2X Link power supply
- Input voltage = 24 VDC -15% / +20%
- Input current = Max. 2.2 A
- Fuse = Integrated, cannot be replaced
- Reverse polarity protection = Yes
X2X Link power supply output
- Nominal output power = 7 W
- Parallel connection = Yes
- Redundant operation = Yes
Input I/O power supply
- Input voltage = 24 VDC -15% / +20%
- Fuse = Required line fuse: Max. 10 A, slow-blow
Output I/O power supply
- Nominal output voltage = 24 VDC
- Permissible contact load = 10 A
Power supply - General information
- Diagnostics
- RS232 data transfer = Yes, using LED status indicator
- Module run/error = Yes, using LED status indicator and software
- Overload = Yes, using LED status indicator and software
- Electrical isolation
- I/O supply - I/O power supply = No
- CPU/X2X Link supply - CPU/X2X Link power supply = Yes
- Status indicators = Overload, operating status, module status, RS232 data transfer
Controller
- Processor
- Type = x86 100 (compatible)
- Clock frequency = 100 MHz
- L2 cache = -
- L1 cache for data and program code = 16 kB
- Data buffering
- Battery monitoring = Yes
- Lithium battery = At least 3 years
- Standard memory
- RAM = 32 MB SDRAM
- User RAM = 128 kB SRAM
- CompactFlash slot = 1
- Real-time clock = Nonvolatile, resolution 1 s, -10 to 10 ppm accuracy at 25°C
- Floating point unit (FPU) = Yes
- Integrated I/O processor = Processes I/O data points in the background
- Modular interface slots = 1
- Remanent variables = Max. 32 kB
- Shortest task class cycle time = 1 ms
- Typical instruction cycle time = 0.09 μs
Interfaces
- Interface IF1
- Signal = RS232
- Variant = Connection via 12-pin terminal block X20TB12
- Max. distance = 900 m
- Transfer rate = Max. 115.2 kbit/s
- Interface IF2
- Transfer
- Physical layer = 10BASE-T/100BASE-TX
- Half-duplex = Yes
- Full-duplex = Yes
- Autonegotiation = Yes
- Auto-MDI/MDIX = Yes
- Signal = Ethernet
- Variant = 1x RJ45 shielded
- Line length = Max. 100 m between 2 stations (segment length)
- Transfer rate = 10/100 Mbit/s
- Interface IF3
- Physical layer = 100BASE-TX
- Full-duplex = POWERLINK mode: No / Ethernet mode: Yes
- Fieldbus = POWERLINK (V1/V2) managing or controlled node
- Type = Type 4
- Transfer rate = 100 Mbit/s
- Interface IF4
- Type = USB 1.1
- Variant = Type A
- Max. output current = 0.5 A
- Interface IF5
- Interface IF6
- Fieldbus = X2X Link master
