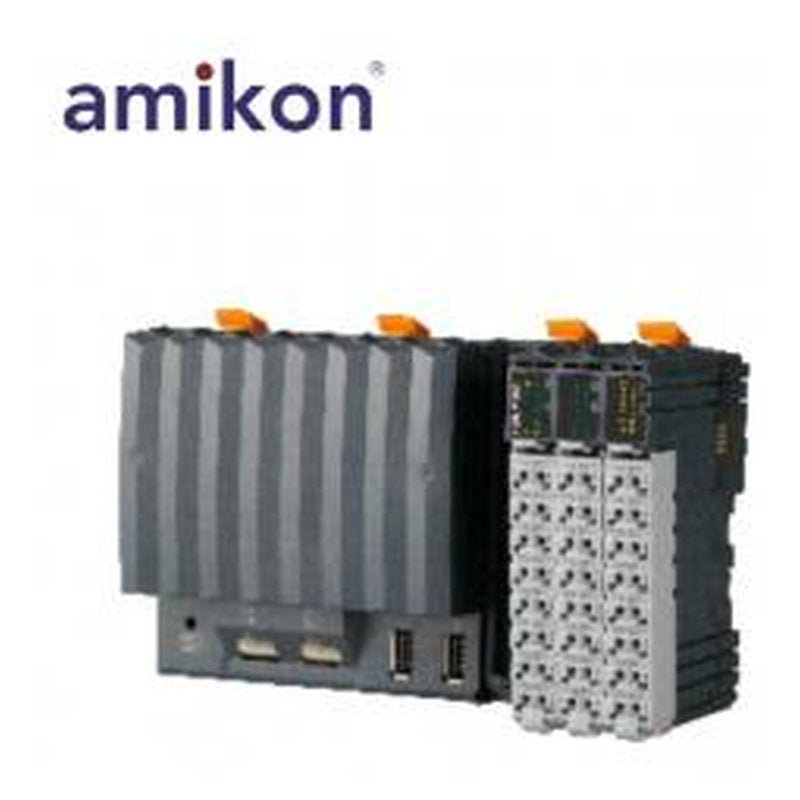

Intel x86 400 MHz compatible with integrated I/O processor Ethernet, POWERLINK with poll-response chaining and onboard USB 1 slot for modular interface expansion 30 digital inputs/outputs and 2 analog inputs integrated in the device 2 GB onboard flash drive 256 MB DDR3 SDRAM Fanless No battery Backed-up real-time clock The X20 Compact controller series is characterized by 3 integrated I/O modules.
The device is equipped with 30 different digital inputs/outputs and 2 analog inputs .
1 analog input can be used for Pt1000 resistance temperature measurement.
The X20CP1382 is equipped with an Intel x86 400 MHz compatible processor, 256 MB RAM and 2 GB built-in flash drive.
The FRAM for storing remanent variables has 32 kB available.
A fanless and battery-free design ensures maintenance-free operation.
The controller is equipped with Ethernet, 2x USB and an RS232 interface.
In addition, POWERLINK and CAN bus are available as integrated interfaces.
For additional fieldbus connections, each controller can be expanded with an interface module from the X20 standard portfolio.
Technical Specifications
Short description
- Interfaces = 1x RS232, 1x Ethernet, 1x POWERLINK, 2x USB, 1x X2X Link, 1x CAN bus
- System module = Controller
General information
- Diagnostics
- Outputs = Digital outputs: Yes, using LED status indicator and software (output error status)
- CPU function = Yes, using LED status indicator
- CAN bus data transfer = Yes, using LED status indicator
- RS232 data transfer = Yes, using LED status indicator
- Inputs = Analog inputs: Yes, using LED status indicator and software
- Ethernet = Yes, using LED status indicator
- I/O power supply = Yes, using LED status indicator
- POWERLINK = Yes, using LED status indicator
- Supply voltage monitoring = Yes, using LED status indicator
- Temperature = Yes, using software register
- Terminating resistor = Yes, using LED status indicator
- Support
- Controller redundancy = No
- ACOPOS support = Yes
- reACTION-capable I/O channels = No
- Visual Components support = Yes
- Power consumption
- Internal I/O = 2.3 W
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = Non-compliant
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cULus E115267 Industrial control equipment
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
- B&R ID code = 0xDABB
- Cooling = Fanless
- Status indicators = CPU function, Ethernet, POWERLINK, RS232, CAN bus, CAN bus terminating resistor, PLC power supply, I/O power supply, I/O function per channel
- Power consumption without interface module and USB = 5.5 W
- Power consumption for X2X Link power supply = 0.8 W
- Additional power dissipation caused by actuators (resistive) [W] = -
- Type of signal lines = Shielded lines must be used for all high-speed digital inputs/outputs, line length: Max. 20 m
CPU and X2X Link power supply
- Input voltage = 24 VDC -15% / +20%
- Input current = Max. 1 A
- Fuse = Integrated, cannot be replaced
- Reverse polarity protection = Yes
X2X Link power supply output
- Nominal output power = 2 W
- Parallel connection = Yes
- Redundant operation = Yes
Input I/O power supply
- Input voltage = 24 VDC -15% / +20%
- Fuse = Required line fuse: Max. 10 A, slow-blow
Output I/O power supply
- Nominal output voltage = 24 VDC
- Permissible contact load = 10 A
Controller
- Processor
- L1 cache
- Data code = 16 kB
- Program code = 16 kB
- Type = Vx86EX
- Clock frequency = 400 MHz
- L2 cache = 128 kB
- Standard memory
- RAM = 256 MB DDR3 SDRAM
- Application memory
- Writable data amount
- Guaranteed = 40 TB
- Results for 5 years = 21.9 GB/day
- Type = 2 GB eMMC flash memory
- Data retention = 10 years
- Guaranteed erase/write cycles = 20,000
- Error-correcting code (ECC) = Yes
- Real-time clock = Retention for at least 300 hours, typ. 1000 hours at 25°C, 1 s resolution, -18 to 28 ppm accuracy at 25°C
- Floating point unit (FPU) = Yes
- Integrated I/O processor = Processes I/O data points in the background
- Modular interface slots = 1
- Remanent variables = 32 kB FRAM, retention >10 years
- Shortest task class cycle time = 1 ms
- Typical instruction cycle time = 0.0199 µs
Interfaces
- Interface IF1
- Signal = RS232
- Variant = Connection via 16-pin terminal block X20TB1F
- Max. distance = 900 m
- Transfer rate = Max. 115.2 kbit/s
- Interface IF2
- Transfer
- Physical layer = 10BASE-T/100BASE-TX
- Half-duplex = Yes
- Full-duplex = Yes
- Autonegotiation = Yes
- Auto-MDI/MDIX = Yes
- Signal = Ethernet
- Variant = 1x RJ45 shielded
- Line length = Max. 100 m between 2 stations (segment length)
- Transfer rate = 10/100 Mbit/s
- Interface IF3
- Physical layer = 100BASE-TX
- Full-duplex = POWERLINK mode: No / Ethernet mode: Yes
- Fieldbus = POWERLINK managing or controlled node
- Type = Type 4
- Transfer rate = 100 Mbit/s
- Interface IF4
- Type = USB 1.1/2.0
- Variant = Type A
