Category: PLC systems > X20 System > Compact-S PLC
ARM Cortex-A9 processor with 500 MHz and integrated I/O processor POWERLINK with onboard poll response chaining Onboard Ethernet 2x onboard USB 256 MB DDR3 SDRAM 1 GB onboard flash drive Fanless No battery Extremely compact The controllers in the X20 Compact-S family are both powerful and compact.
The fanless, battery-free design of these controllers means they are completely maintenance-free.

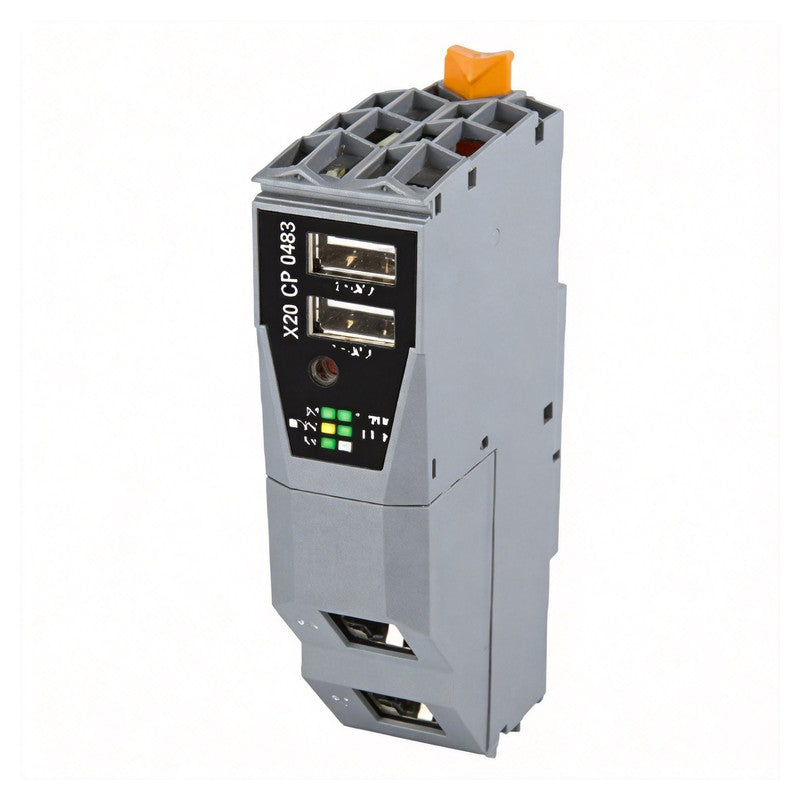

The X20CP0483 is equipped with an ARM Cortex- A9-500 processor, 256 MB RAM and 1 GB built-in flash drive.
The FRAM for storing remanent variables has 32 kB available.
With POWERLINK, Ethernet, USB and RS232, the controller offers a wide range of communication options.
An optional RS485 or CAN interface is available.
If the application requires additional interfaces, the controller can be modularly expanded by one or two X20 interface slots.
This allows the entire product range of X20 fieldbus interfaces to be used.
Technical Specifications
Short description
- Interfaces = 1x Ethernet, 1x POWERLINK V2, 2x USB, 1x X2X Link
- System module = Controller
General information
- Diagnostics
- CPU function = Yes, using LED status indicator
- Ethernet = Yes, using LED status indicator
- POWERLINK = Yes, using LED status indicator
- Temperature = Yes, using software register
- Support
- Controller redundancy = No
- Storage health data support = Yes
- ACOPOS support = Yes
- Visual Components support = Yes
- Multicore support = No
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = In preparation
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cULus E115267 Industrial control equipment
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
- B&R ID code = 0xE952
- Cooling = Fanless
- Status indicators = CPU function, Ethernet, POWERLINK
- Power consumption = 2.9 W
- Additional power dissipation caused by actuators (resistive) [W] = -
Controller
- Processor
- L1 cache
- Data code = 32 kB
- Program code = 32 kB
- Type = ARM Cortex-A9
- Clock frequency = 500 MHz
- L2 cache = 512 kB
- Standard memory
- RAM = 256 MB DDR3 SDRAM
- Application memory
- Writable data amount
- Guaranteed = 40 TB
- Results for 5 years = 21.9 GB/day
- Type = 1 GB eMMC flash memory
- Data retention = 10 years
- Guaranteed erase/write cycles = 20,000
- Error-correcting code (ECC) = Yes
- Slots for interface modules
- X20BB5x = 0
- X20BB6x = 1
- X20BB7x = 2
- Real-time clock = Retention for at least 300 hours, typ. 1000 hours at 25°C, 1 s resolution, -18 to 28 ppm accuracy at 25°C
- Floating point unit (FPU) = Yes
- Integrated I/O processor = Processes I/O data points in the background
- Remanent variables = 32 kB FRAM, retention >10 years
- Shortest task class cycle time = 0.8 ms
- Typical instruction cycle time = 0.0145 µs
Interfaces
- Interface IF2
- Transfer
- Physical layer = 10BASE-T/100BASE-TX
- Half-duplex = Yes
- Full-duplex = Yes
- Autonegotiation = Yes
- Auto-MDI/MDIX = Yes
- Signal = Ethernet
- Variant = 1x RJ45 shielded
- Line length = Max. 100 m between 2 stations (segment length)
- Transfer rate = 10/100 Mbit/s
- Interface IF3
- Physical layer = 100BASE-TX
- Full-duplex = POWERLINK mode: No / Ethernet mode: Yes
- Fieldbus = POWERLINK V2 managing or controlled node
- Type = Type 6
- Transfer rate = 100 Mbit/s
- Interface IF4
- Type = USB 1.1/2.0
- Variant = Type A
- Max. output current = 0.2 A
- Interface IF5
- Interface IF6
- Fieldbus = X2X Link master
- On base module = X20BBx2: Compact-S PLC base module with integrated RS232 interface X20BBx3: Compact-S PLC base module with integrated RS485 interface X20BBx7: Compact-S PLC base module with integrated RS232 and CAN bus interface
Electrical properties
- Electrical isolation = Ethernet (IF2) and POWERLINK (IF3) isolated from each other, from other interfaces and from PLC X2X (IF6) isolated from other interfaces and PLC: Yes, with X20PS9600 / No, with X20PS9602 USB (IF4, IF5) not isolated from each other and PLC
Operating conditions
- Mounting orientation
- Horizontal = Yes
- Vertical = Yes
- Installation elevation above sea level
- 0 to 2000 m = No limitation
- >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
- Degree of protection per EN 60529 = IP20
Ambient conditions
- Temperature
- Operation
- Horizontal mounting orientation = -25 to 60°C
- Vertical mounting orientation = -25 to 50°C
- Derating = See section "Derating" in the X20PS960x data sheet.
- Storage = -40 to 85°C
- Transport = -40 to 85°C
- Relative humidity
- Operation = 5 to 95%, non-condensing
- Storage = 5 to 95%, non-condensing
- Transport = 5 to 95%, non-condensing
