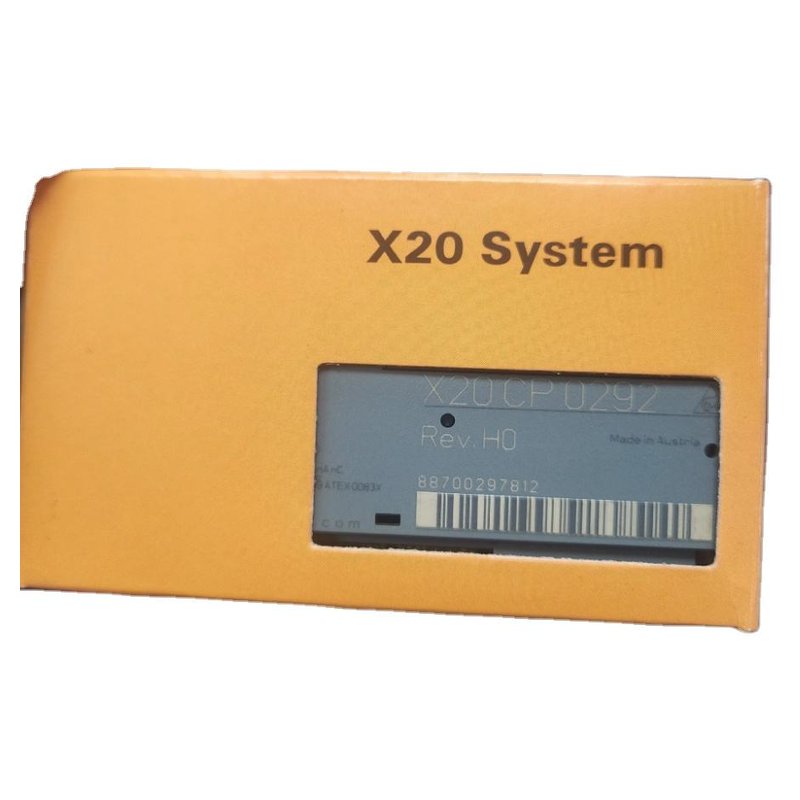

B&R X20CP0292 | Industrial Automation Component

Category: To Confirm

Embedded µP25 with additional I/O processor 750 kB User SRAM 3 MB User FlashPROM Onboard Ethernet Only 37.5 mm wide Battery-free The X20CP0292 is the most powerful of the X20 Compact CPUs.

Equipped with Embedded μP 25 and additional memory, it is predestined for basic drive and visualization applications.

The network capability of the CPU is ensured by an onboard Ethernet interface.

Technical Specifications

Short description

• Interfaces = 1x onboard Ethernet
• System module = CPU

General information

• Diagnostics
• CPU function = Yes, using LED status indicator
• Ethernet = Yes, using LED status indicator
• Overtemperature = Yes, using software
• Support
• ACOPOS support = Yes, via CAN bus
• Visual Components support = Yes
• Certifications
• CE = Yes
• UKCA = Yes
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
• CCS = Yes
• LR = ENV1
• KR = Yes
• ABS = Yes
• BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
• KC = Yes
• B&R ID code = 0x22A6
• Status indicators = CPU function, Ethernet
• Temperature sensor = Yes
• Power consumption = 3 W
• Additional power dissipation caused by actuators (resistive) [W] = -

Controller

• Processor
• Type = Embedded µP 25
• Permanent variables
• Retention time = >10 years
• Memory = 2.75 kB FRAM
• Standard memory
• User PROM = 3 MB FlashPROM
• User RAM = 750 kB SRAM
• Real-time clock = Yes, resolution 1 s, -18 to 28 ppm accuracy at 25°C
• Integrated I/O processor = Processes I/O data points in the background
• Backup battery = No
• Shortest task class cycle time = 2 ms
• Typical instruction cycle time = 0.5 µs

Interfaces

• Interface IF2
• Transfer
• Physical layer = 100BASE-TX
• Half-duplex = Yes
• Full-duplex = No
• Autonegotiation = No
• Auto-MDI/MDIX = Yes
• Signal = Ethernet
• Variant = 1x RJ45 shielded
• Line length = Max. 100 m between 2 stations (segment length)
• Transfer rate = 100 Mbit/s
• On base module
• X20BB22 = Compact CPU base module with integrated RS232 interface
• X20BB27 = Compact CPU base module with integrated RS232 and CAN interface

Electrical properties

• Electrical isolation = PLC isolated from Ethernet (IF2)

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Note = Order 1x terminal block X20TB12 separately. Order 1x power supply module X20PS9500 or X20PS9502 separately. Order 1x Compact CPU base X20BB22 or X20BB27 separately.
• Pitch = 37.5 +0.2 mm
