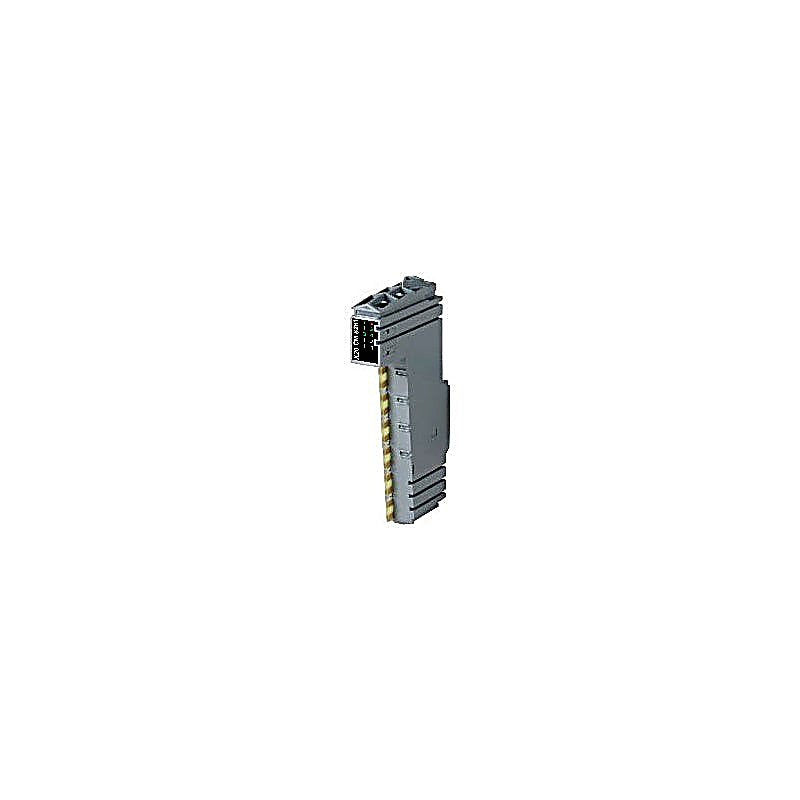

Digital and analog channels Selectable current and voltage for AI and AO Counter functions The module is a universal mixed module.
On this module, digital I/O and analog I/O are combined.
A current or voltage signal can be used for the analog I/O as desired.
Counter functions on two of the digital inputs expand the range of use.
Technical Specifications
Short description
- I/O module = 4 digital inputs, 2 digital outputs, 1 analog input, 1 analog output, special functions
General information
- Diagnostics
- Module run/error = Yes, using LED status indicator and software
- Analog inputs = Yes, using LED status indicator and software
- Digital outputs = Yes, using LED status indicator and software (output error status)
- Power consumption
- Bus = 0.01 W
- Internal I/O = 1.75 W
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = In preparation
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cULus E115267 Industrial control equipment
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
- KC = Yes
- B&R ID code = 0x24C3
- Status indicators = I/O function per channel, operating state, module status
- Additional power dissipation caused by actuators (resistive) [W] = -
Digital inputs
- Input filter
- Hardware = ≤2 µs
- Software = Default 1 ms, configurable between 0 and 25 ms in 0.2 ms increments
- Switching threshold
- Low = <5 VDC
- High = >15 VDC
- Quantity = 4
- Nominal voltage = 24 VDC
- Input characteristics per EN 61131-2 = Type 1
- Input voltage = 24 VDC -15% / +20%
- Input current at 24 VDC = Typ. 3.3 mA
- Input circuit = Sink
- Connection type = 1-wire connections
- Input resistance = Typ. 7.18 kΩ
- Additional functions = 20 kHz event counting, gate measurement
- Insulation voltage between channel and bus = 500 V eff
Event counters
- Quantity = 2
- Signal form = Square wave pulse
- Evaluation = Each negative edge, cyclic counter
- Input frequency = Max. 20 kHz
- Counter 1 = Input 1
- Counter 2 = Input 3
- Counter frequency = Max. 20 kHz
- Counter size = 16-bit
Gate time measurement
- Counter frequency
- Internal = 48 MHz, 24 MHz, 12 MHz, 6 MHz, 3 MHz, 1.5 MHz, 750 kHz, 375 kHz, 187.5 kHz
- Quantity = 1
- Signal form = Square wave pulse
- Evaluation = Positive edge - Negative edge
- Counter size = 16-bit
- Length of pause between pulses = ≥100 µs
- Pulse length = ≥20 µs
- Supported inputs = Input 4
Analog inputs
- Digital converter resolution
- Voltage = ±12-bit
- Current = 12-bit
- Output format
- Voltage = INT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV
- Current = INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA
- Input impedance in signal range
- Voltage = >1 MΩ
- Current = -
- Load
- Voltage = -
- Current = <300 Ω
- Permissible input signal
- Voltage = Max. ±15 V
- Current = Max. ±50 mA
- Output of digital value during overload
- Undershoot
- Voltage = 0x8001
- Current = 0x0000
- Overshoot
- Voltage = 0x7FFF
- Current = 0x7FFF
- Max. error
- Voltage
- Gain = 0.08%
- Offset = 0.02%
- Current
- Gain = 0 to 20 mA = 0.08% / 4 to 20 mA = 0.1%
- Offset = 0 to 20 mA = 0.03% / 4 to 20 mA = 0.16%
- Max. gain drift
- Voltage = 0.01%/°C
- Current = 0 to 20 mA = 0.009 %/°C 4 to 20 mA = 0.0113 %/°C
- Max. offset drift
- Voltage = 0.002%/°C
- Current = 0 to 20 mA = 0.004 %/°C 4 to 20 mA = 0.005 %/°C
- Nonlinearity
- Voltage = <0.02%
- Current = <0.02%
- Quantity = 1
- Input = ±10 V or 0 to 20 mA / 4 to 20 mA, via different terminal connections
- Input type = Single-ended
- Conversion time = 400 µs, conversion runs asynchronous to the X2X Link cycle
- Output format = INT
- Input protection = Protection against wiring with supply voltage
- Conversion procedure = Successive approximation
- Input filter = Second-order low-pass filter / Cutoff frequency 1 kHz
- Insulation voltage between channel and bus = 500 V eff
