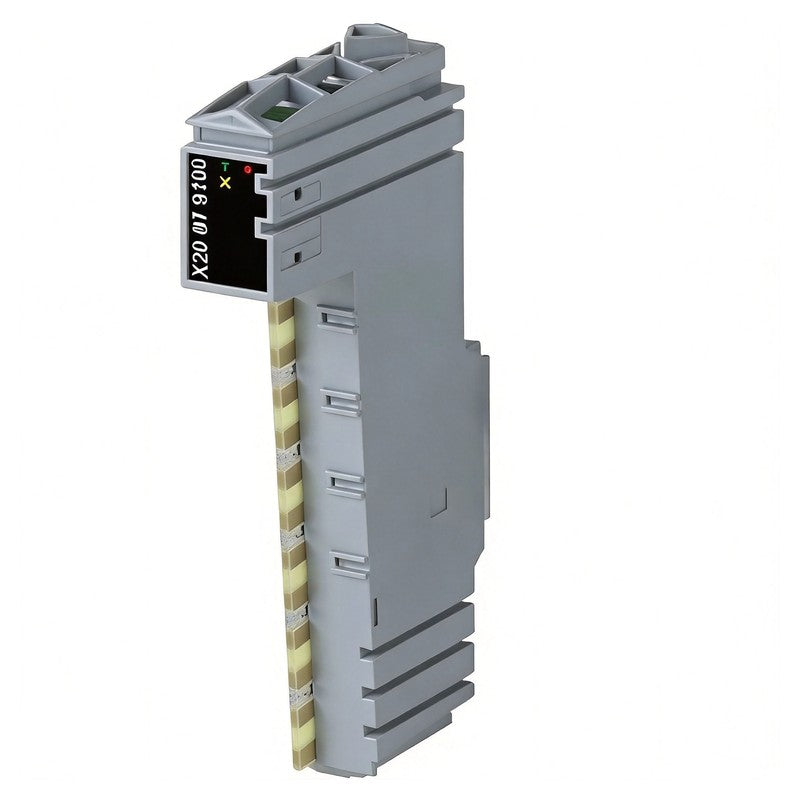

B&R X20BT9100 | Industrial Automation Component

Category: I/O systems > X20 System > Bus receivers and transmitters

X2X Link bus transmitter For seamless expansion of the system Up to 100 m segment length Supply for internal I/O power supply Operation only on the rightmost slot The bus transmitter is used for seamless expansion of the X20 system.

Stations can be up to 100 m apart.

The bus transmitter module is only permitted to be operated with a bus module where the internal I/O power supply is connected through (e.g.

X20BM11).

If the supply is used for the internal I/O power supply, this potential group is not permitted to be supplied by any other module.

An I/O module with bus module X20BM01 must be used to isolate the potential group.

Technical Specifications

Short description

• Bus transmitter = X2X Link bus transmitter with supply for I/O

General information

• Diagnostics
• Module run/error = Yes, using LED status indicator and software
• X2X bus function = Yes, using LED status indicator
• Power consumption
• Internal I/O
• As bus transmitter = 0.1 W
• Additionally as supply module = 0.6 W
• Bus = 0.5 W
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• KC = Yes
• B&R ID code = 0x1BC2
• Status indicators = X2X bus function, operating state, module status
• Additional power dissipation caused by actuators (resistive) [W] = -

Input I/O power supply

• Input voltage = 24 VDC -15% / +20%
• Fuse = Required line fuse: Max. 10 A, slow-blow
• Reverse polarity protection = No

Output I/O power supply

• Nominal output voltage = 24 VDC
• Behavior on short circuit = Required line fuse
• Permissible contact load = 10 A

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Note = Order 1x terminal block X20TB06 or X20TB12 separately. Order 1x bus module X20BM11 or X20BM15 separately.
• Pitch = 12.5 +0.2 mm
