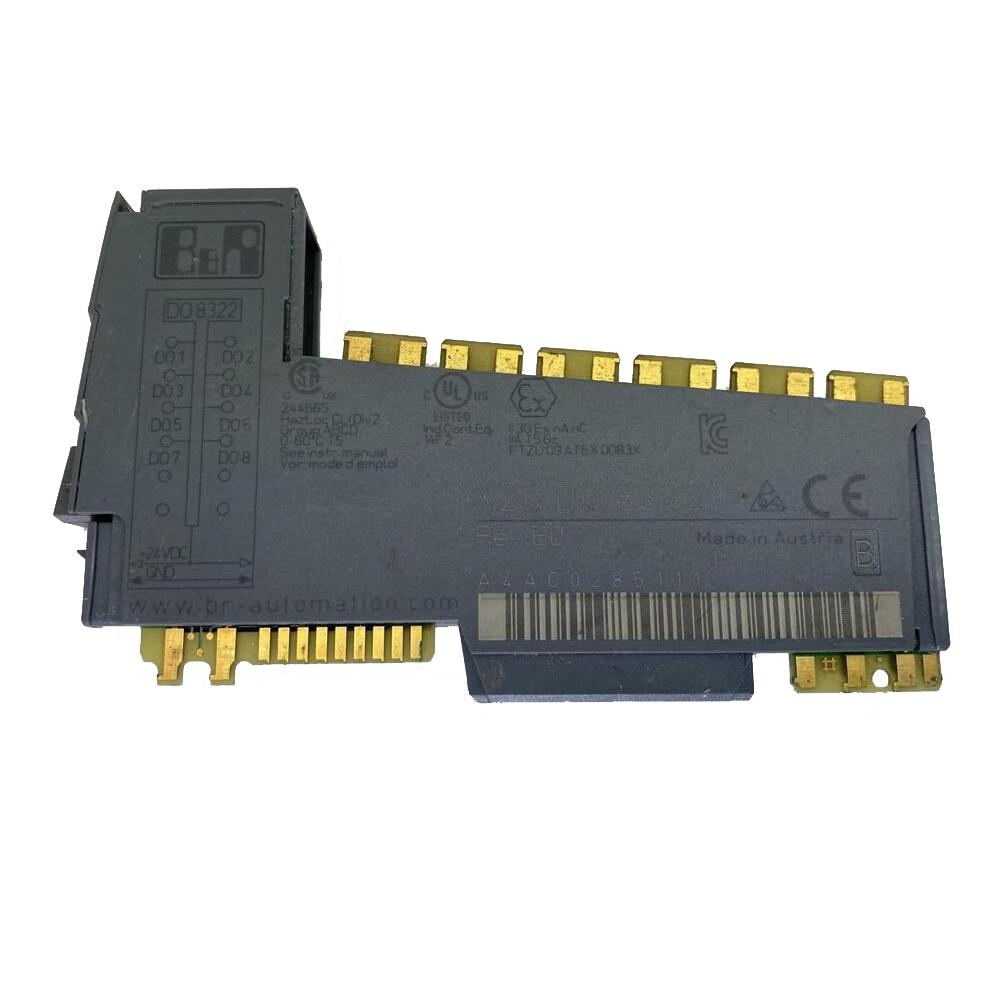

B&R X20BR9300 | Industrial Automation Component

Category: I/O systems > X20 System > Bus receivers and transmitters

X2X Link bus receiver Feed for X2X Link and internal I/O supply Electrical isolation of feed and X2X Link supply Redundancy of X2X Link supply possible by operating multiple supply modules simultaneously Operation only on the slot to the far left The bus receiver is used to connect the X20 System to the X2X Link.

The module is equipped with a feed for the X2X Link as well as the internal I/O supply.

Technical Specifications

Short description

• Bus receiver = X2X Link bus receiver with supply for I/O and bus

General information

• Diagnostics
• Module run/error = Yes, using LED status indicator and software
• Overload = Yes, using LED status indicator and software
• X2X bus function = Yes, using LED status indicator
• Power consumption
• Internal I/O = 0.6 W
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• KC = Yes
• B&R ID code = 0x1BC1
• Status indicators = X2X bus function, overload, operating state, module status
• Power consumption for X2X Link power supply = 1.62 W
• Additional power dissipation caused by actuators (resistive) [W] = -

X2X Link power supply input

• Input voltage = 24 VDC -15% / +20%
• Input current = Max. 0.7 A
• Fuse = Integrated, cannot be replaced
• Reverse polarity protection = Yes

X2X Link power supply output

• Nominal output power = 7 W
• Parallel connection = Yes
• Redundant operation = Yes
• Overload characteristics = Short-circuit proof, temporary overload

Input I/O power supply

• Input voltage = 24 VDC -15% / +20%
• Fuse = Required line fuse: Max. 10 A slow-blow
• Reverse polarity protection = No

Output I/O power supply

• Nominal output voltage = 24 VDC
• Behavior on short circuit = Required line fuse
• Permissible contact load = 10 A

Electrical properties

• Electrical isolation = X2X Link supply isolated from X2X Link power supply I/O supply not isolated from I/O power supply

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = See section "Derating".
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Note = Order 1x terminal block X20TB12 separately. Order 1x power supply bus module X20BM01 separately
• Pitch = 12.5 +0.2 mm
