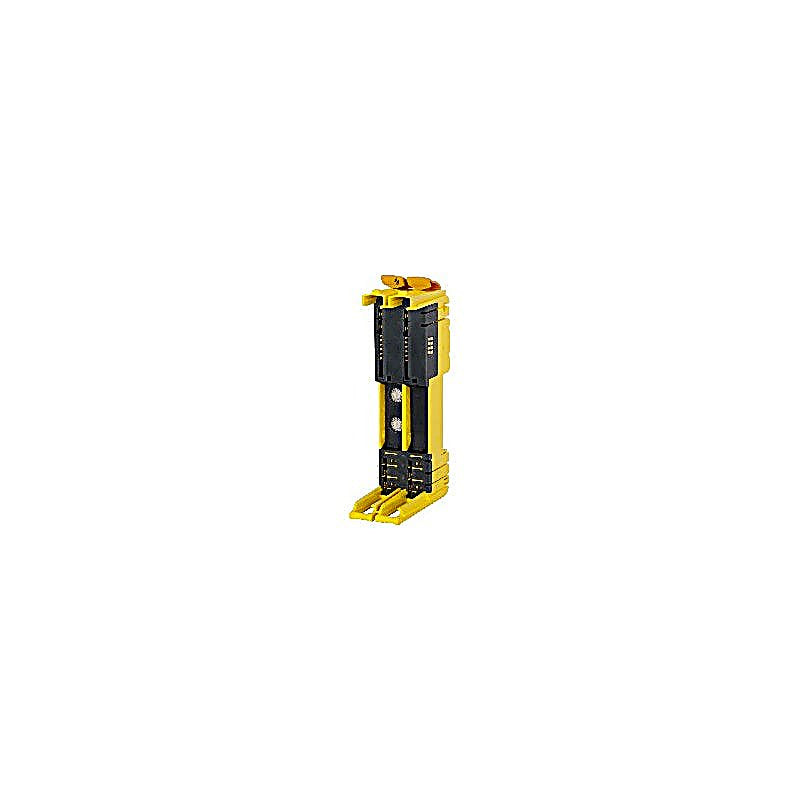

B&R X20BM36 | Industrial Automation Component

Category: Safety technology > X20 System > Bus modules

Bus module for SafeIO modules The internal I/O power supply is continuous.

Manual node number assignment Independent from the electronics module Manual and automatic addressing can be combined as desired.

The bus module is the base for all SafeIO modules. The internal I/O power supply is continuous.

In addition, a unique address is defined with this bus module using a node number switch.

Technical Specifications

Short description

• Bus module = Bus module, for X20 SafeIO modules, with node number switch, internal I/O power supply connected through

General information

• Power consumption
• Bus = 0.13 W
• Internal I/O = -
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• DNV = In preparation
• KC = Yes
• Additional power dissipation caused by actuators (resistive) [W] = -

I/O power supply

• Nominal voltage = 24 VDC
• Permissible contact load = 10 A

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level = 0 to 2000 m, no limitation
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Pitch = 25 +0.2 mm
