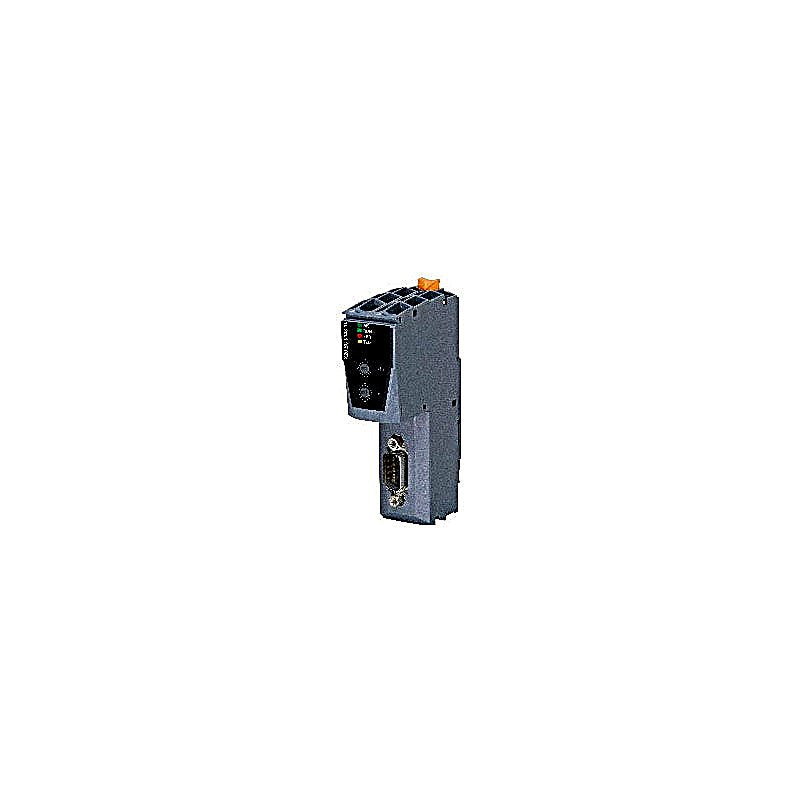

B&R X20BC0143-10 | Industrial Automation Component

Category: I/O systems > X20 System > Bus controllers

Fieldbus: CANopen Auto-configuration of I/O modules I/O configuration via the fieldbus Constant response times even with large amounts of data (max.

32 Rx and 32 Tx PDOs) Configurable I/O cycle (0.5 to 4 ms) Possible to configure the transfer rate or have it detected automatically Heartbeat consumer and producer Emergency producer 2x SDO server, NMT slave Simple bootup (autostart) Terminal access via the serial interface on the X20PS9400 Controller Area Network (CAN) is widespread in automation technology.

CAN topology is based on a line structure and uses twisted wire pairs for data transfer.

CANopen is a higher-layer protocol based on CAN. The standardized protocol offers very flexible configuration options.

This bus controller makes it possible to connect up to 253 X2X Link I/O modules to CANopen.

A transition between IP20 and IP67 protection is possible by directly connecting X20, X67 or XV modules to one another at distances of up to 100 m each across control cabinet boundaries as required.

All CANopen operating modes such as synchronous, event and polling are supported as well as PDO linking, life/node guarding, heartbeat, emergency objects and much more.

With multifunction modules, the bus controller supports only the default function model in the event of automatic configuration by the bus controller (see the respective module description).

Automation Studio V4.3 or later can be used to easily create configuration files (e.g. DCF files).

All other function models are also supported by transferring configuration data to the bus controller (e.g.

via the master environment with an SDO download).

Automation Studio can be downloaded at no cost from the B&R website ( www.br-automation.com ).

The evaluation license is permitted to be used to create complete configurations for fieldbus bus controllers at no cost.

Technical Specifications

Short description

• Bus controller = CANopen slave

General information

• Diagnostics
• Module status = Yes, using LED status indicator and software
• Bus function = Yes, using LED status indicator and software
• Data transfer = Yes, using LED status indicator
• Power consumption
• Bus = 2 W
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
• CCS = Yes
• LR = ENV1
• KR = Yes
• ABS = Yes
• BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
• B&R ID code = 0xAD3E
• Status indicators = Module status, bus function, data transfer
• Additional power dissipation caused by actuators (resistive) [W] = -

Interfaces

• Min. cycle time
• Fieldbus = No limitation
• X2X Link = 500 μs
• Fieldbus = CANopen slave
• Variant = 9-pin male DSUB connector
• Max. distance = 1000 m
• Transfer rate = Max. 1 Mbit/s
• Default transfer rate = Automatic transfer rate detection or fixed setting
• Synchronization between bus systems possible = No

Electrical properties

• Electrical isolation = CANopen isolated from I/O CANopen not isolated from bus

Operating conditions

• Mounting orientation
• Horizontal = Yes
• Vertical = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Horizontal mounting orientation = -25 to 60°C
• Vertical mounting orientation = -25 to 50°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C
• Relative humidity
• Operation = 5 to 95%, non-condensing
• Storage = 5 to 95%, non-condensing
• Transport = 5 to 95%, non-condensing

Mechanical properties

• Note = Order 1x terminal block X20TB12 separately. Order 1x power supply module X20PS9400 or X20PS9402 separately. Order 1x bus base X20BB80 separately.
• Pitch = 37.5 +0.2 mm
