Category: I/O systems > X20 System > Temperature measurement

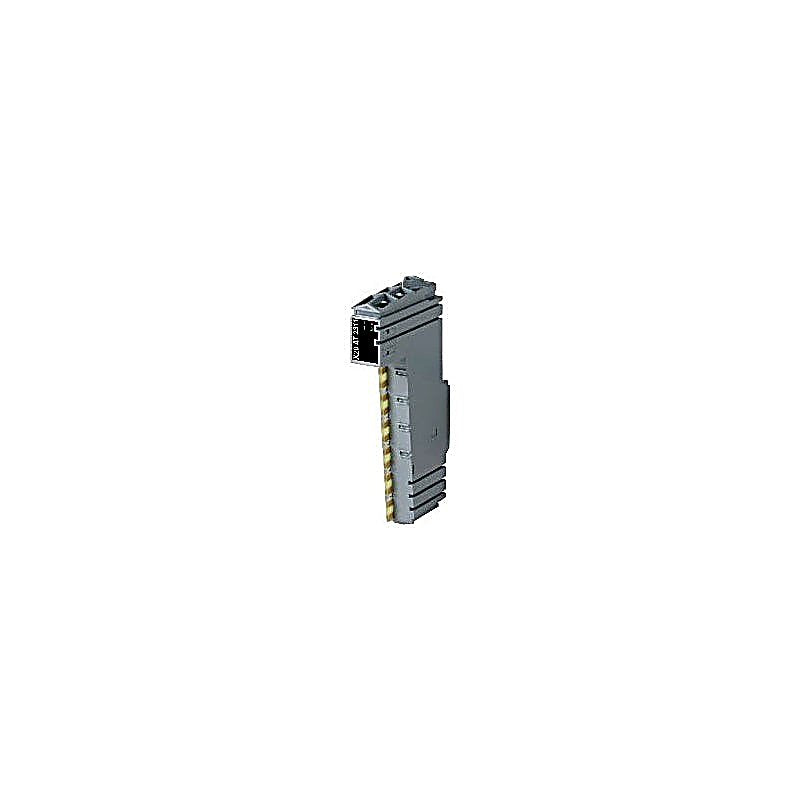

2 inputs for resistance temperature measurement PT100 sensor Direct resistance measurement 4-wire measurement Configurable filter time The module is equipped with 2 inputs for PT100 4-line resistance temperature measurement.
Technical Specifications
Short description
- I/O module = 2 inputs for PT100 resistance temperature measurement
General information
- Diagnostics
- Module run/error = Yes, using LED status indicator and software
- Inputs = Yes, using LED status indicator and software
- Power consumption
- Bus = 0.35 W
- Internal I/O = 0.85 W
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = In preparation
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cULus E115267 Industrial control equipment
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
- KC = Yes
- B&R ID code = 0xA4AA
- Status indicators = I/O function per channel, operating state, module status
- Additional power dissipation caused by actuators (resistive) [W] = -
Resistance measurement temperature inputs
- Conversion time
- 1000 Hz filter = 1 ms for all inputs
- 50 Hz filter = 20 ms for all inputs
- Max. error at 25°C
- Gain = ±0.0059%
- Offset = ±0.0015%
- Temperature measurement monitoring
- Range undershoot = 0x80000001
- Range overshoot = 0x7FFFFFFF
- Open circuit = 0x7FFFFFFF
- General fault = 0x80000000
- Open inputs = 0x7FFFFFFF
- Resistance measurement monitoring
- Range overshoot = 0xFFFFFFFF
- Open circuit = 0xFFFFFFFF
- Input = Resistance measurement with constant current supply for 4-wire connections
- Digital converter resolution = 24-bit
- Filter time = Configurable between 1 ms and 400 ms
- Conversion procedure = Sigma-delta
- Output format = DINT or UDINT for resistance measurement
- Temperature measurement range = -200 to 850°C
- Resistance measurement range = 0.5 to 390 Ω
- Temperature sensor resolution = 1 LSB = 0.001°C
- Resistance measurement resolution = 0.001 Ω
- Input filter = First-order low-pass filter / cutoff frequency 1050 Hz
- Sensor standard = EN 60751
- Insulation voltage between channel and bus = 500 V eff
- Insulation voltage between channel and channel = 500 V eff
- Linearization method = Internal
- Measuring current = 1 mA
- Temperature sensor normalization = -200.0 to 850.0°C
- Reference = 1568 Ω ±0.1%
- Permissible input signal = Short-term max. 28.8 V
- Max. gain drift = ±0.00065%/°C
- Max. offset drift = ±0.000025%/°C
- Nonlinearity = <0.001%
- Standardized range of values for resistance measurement = 0.5 Ω to 390 Ω
Electrical properties
- Electrical isolation = Channel isolated from channel and bus
Operating conditions
- Mounting orientation
- Horizontal = Yes
- Vertical = Yes
- Installation elevation above sea level
- 0 to 2000 m = No limitation
- >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
- Degree of protection per EN 60529 = IP20
Ambient conditions
- Temperature
- Operation
- Horizontal mounting orientation = -25 to 60°C
- Vertical mounting orientation = -25 to 50°C
- Derating = -
- Storage = -40 to 85°C
- Transport = -40 to 85°C
- Relative humidity
- Operation = 5 to 95%, non-condensing
- Storage = 5 to 95%, non-condensing
- Transport = 5 to 95%, non-condensing
Mechanical properties
- Note = Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately.
- Pitch = 12.5 +0.2 mm
