750-653/025-000 official manufacturer specifications

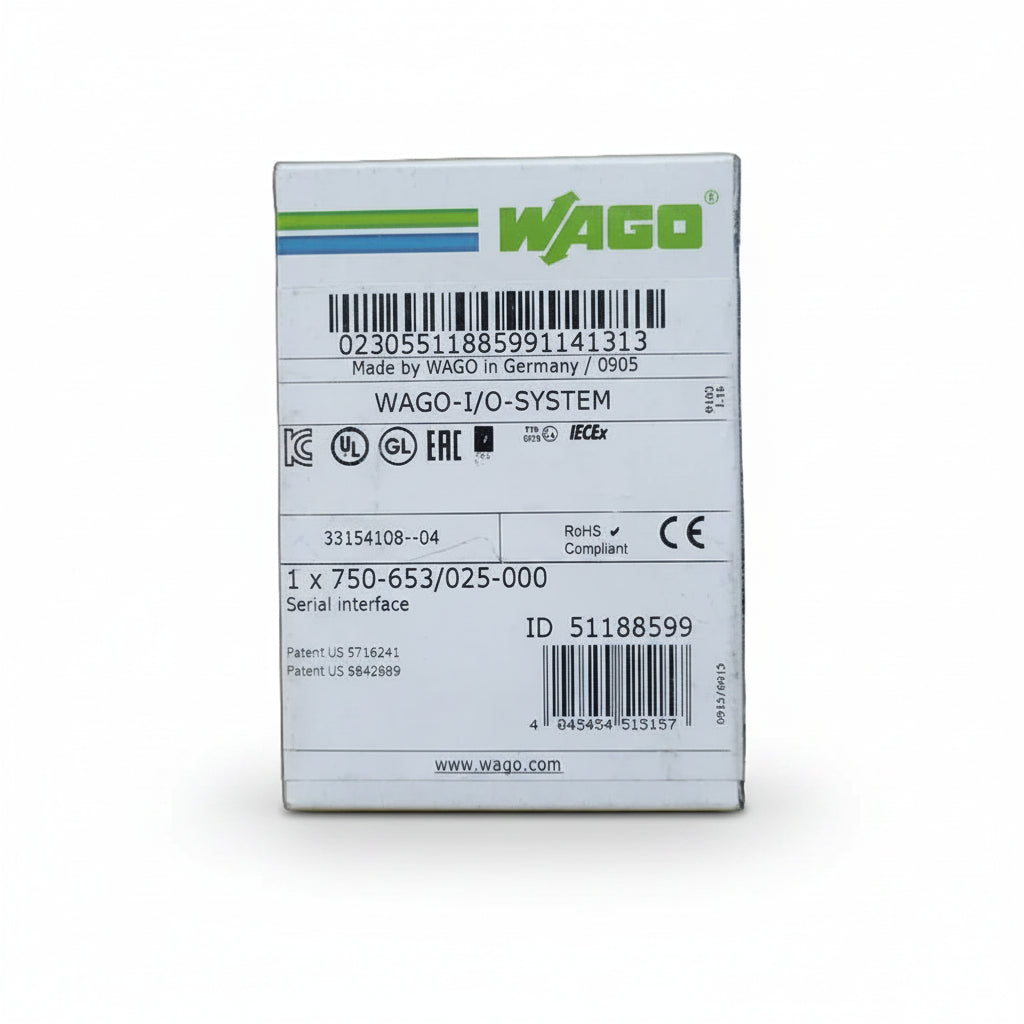

750-653/025-000
| Transmission Channel | 1 TxD / 1 RxD, full/half duplex |
|---|---|
| Baud Rate | 1200 ... 19200 baud |
| Bit Transfer | Differential signals |
| Transmission Length | ~1000 m twisted pair |
| Buffer | 120 byte input / 16 byte output |
| Current Consumption (internal) | 65 mA |
| Voltage Supply | Via system voltage DC/DC |
| Isolation | 500 V (System/Supply) |
| Bit Width | 1 x 40 bits data; 1 x 8 bits control/status |
| Standard | DIN 66259, RS-485 |
|---|---|
| Protocol | RS 485 adjustable |
| Configuration | Data transmission and handshake parameterizable with WAGO-I/O-CHECK 2 |
| Duplex | Full/half duplex |

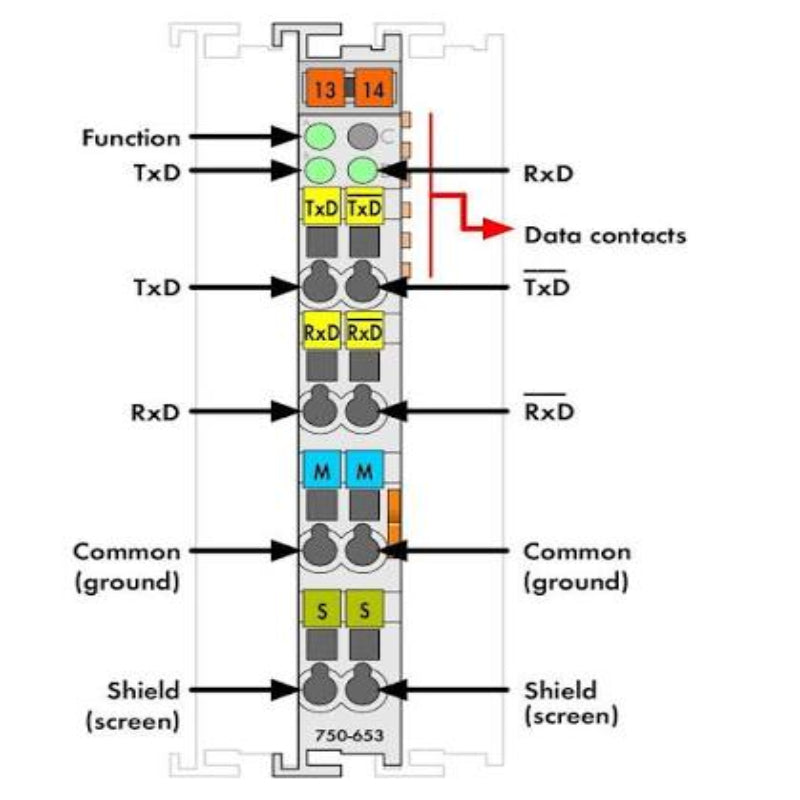

| LED Indicators | 3 green LEDs: Function, TxD, RxD |
| Shield Connection | Direct to mounting rail |
| Width | 12 mm |
|---|---|
| Height | 64 mm (from upper edge of 35 DIN rail) |
| Length | 100 mm |
| Weight | ~55 g |
| Mounting | DIN-rail mount |
| Note | No power contacts; supply module needed for downstream I/O |
| Operating Temperature | -20°C to +60°C (extended) |
|---|---|
| Variant | RS 485 adjustable/T |
| Compatibility | All WAGO-I/O-SYSTEM 750 couplers/controllers (except 750-320/323/324/327 economy types) |
| CE | EN 50082-2 immunity; EN 50081-1 emission |
|---|---|
| UL | UL508; UL1604 Class I Div 2 Groups A,B,C,D T4A |
| Marine | ABS, BV, DNV Cl.B, GL Cat.A-D, KR, LR Env.1-4, NKK, RINA |
| KEMA | II 3 G EEx nA II T4 |
| Product approvals | CE, UKCA, UL/cUL, RoHS |
|---|---|
| EMC | EN 61000-6-x / EN 55011 (industrial environment) |
| Safety standard | IEC/EN 61131 / 61800 / 60947 (product-specific) |
