Schneider Electric VW3M8102R70 | Variable Frequency Drive

SKU: VW3M8102R70
(3)
$255.00
-13% $293.25 $255.00
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

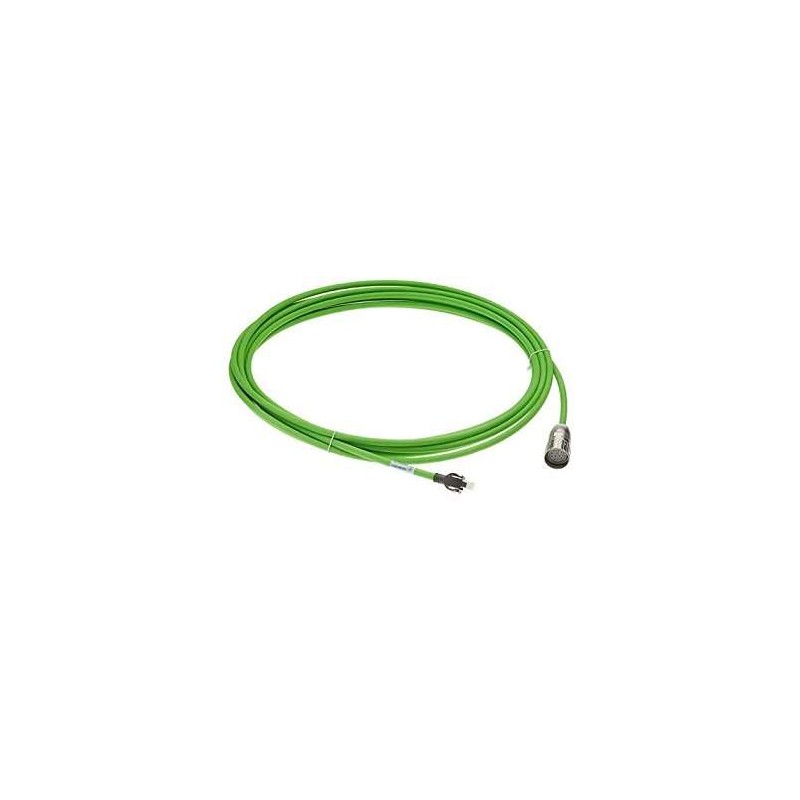

VW3M8102R70 Schneider Electric - Lexium SinCos Hiperface Encoder Cable - 7 Meters. SinCos Hiperface encoder cable for connecting Lexium 32 servo drives (LXM32) to BMH and BSH servo motors. Features M23 industrial connector on motor side and RJ45 connector on drive side. Cable composition of 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²) with 7-meter length.

  • Brand: Schneider Electric
  • Category: Drive Accessory
  • Series: Lexium
  • Product Type: Encoder cable (SinCos Hiperface)
  • Cable Length: 7 m
  • Cable Composition: 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²)
  • Motor Side Connector: M23 industrial (12-pin circular)
  • Drive Side Connector: RJ45 (10-pin)
  • Cable Jacket: PUR green (RAL 6018)
  • Insulation: Polypropylene (PP)
  • Rated Voltage: 300 V
  • Cable Diameter: 6.8 +/- 0.2 mm
  • Minimum Bending Radius: 68 mm
  • Temperature Range (fixed): -40 to 80 degrees C
  • Temperature Range (flexing): -20 to 80 degrees C
  • Weight: 0.491 kg
  • For Use With: Lexium 32 (LXM32) servo drives with BMH/BSH servo motors
  • Certifications: CE, DESINA

Designed for Lexium 32 motion control systems requiring encoder feedback between servo motor and drive. Suitable for industrial machinery, robotics, packaging, and material handling applications using SinCos Hiperface encoder technology.
