Schneider Electric VW3M5104R30 | Variable Frequency Drive

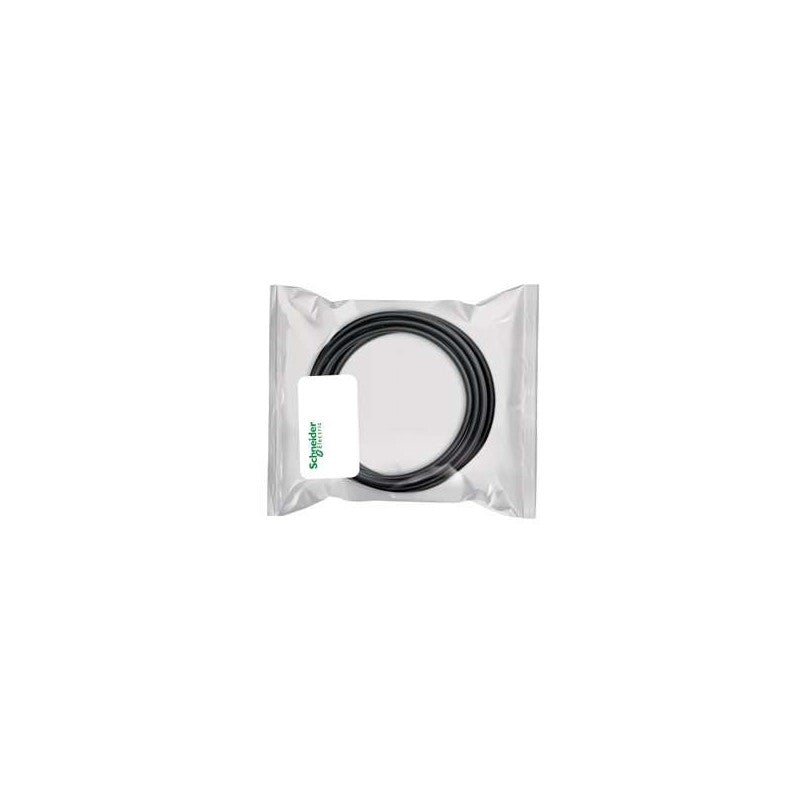

VW3M5104R30 Schneider Electric - Lexium Servo Motor Power Cable 4x10mm2 with M40 Connector, 3m. The Schneider Electric VW3M5104R30 is a pre-assembled power cable for connecting Lexium servo drives to BSH series servo motors. It features an M40 industrial connector on the motor side and open leads on the drive side.

• Brand: Schneider Electric
• Category: Servo Drive Accessories
• Brand: Schneider Electric
• Product Range: Lexium
• Product Type: Power Cable
• Cable Length: 3m
• Wire Configuration: 4 x 10mm2 + 2 x 1mm2
• Motor Side Connector: M40 (8-pin circular)
• Drive Side: Open leads
• Cable Jacket: PUR orange (RAL 2003)
• Cable Diameter: 23.5mm
• Min Bend Radius (fixed): 5x cable diameter
• Min Bend Radius (flexing): 10x cable diameter
• For Use With: BSH series servo motors, Lexium 32 servo drives
• Standards: EN 60204-1, RoHS, REACH compliant

Used to connect Schneider Electric Lexium servo drives to high-power BSH series servo motors in industrial automation, heavy machinery, and CNC machine applications requiring larger wire gauge for higher current capacity.
