Schneider Electric VW3A7741 | Variable Frequency Drive

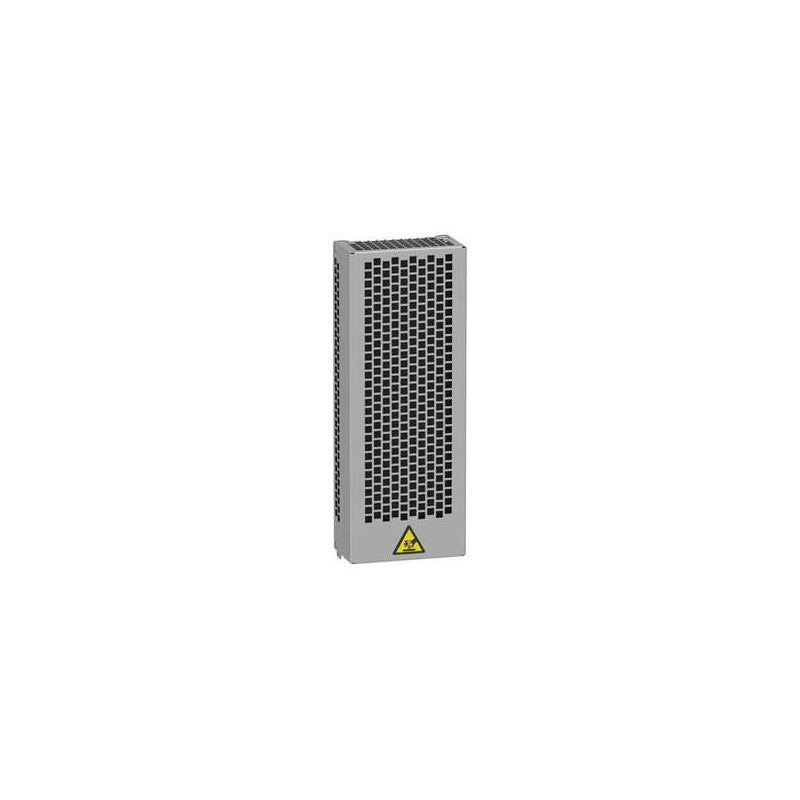

VW3A7741 Schneider Electric - Schneider Electric VW3A7741 Braking Resistor 60 Ohm 0.5 kW IP20. Braking resistor rated at 60 ohms and 0.5 kW average power, designed for Altivar ATV340 and ATV900 series drives with thermal protection via drive.

• Brand: Schneider Electric
• Category: Braking Resistor
• Product Type: Braking Resistor
• Series: Altivar
• Range Compatibility: Altivar Machine ATV340, Altivar Process ATV900 (ATV930, ATV950)
• Ohmic Value: 60 Ohm
• Average Power: 0.5 kW at 50 degrees C
• Duty Cycle: Medium cycle: <= 4s braking at 135% torque per 40s cycle; Severe cycle: <= 54s braking at 100% torque per 120s cycle
• Electrical Connection: Terminal, clamping capacity <= 10 mm² / AWG 8
• Protection Type: Thermal protection via drive (no built-in temperature sensor)
• IP Rating: IP20
• Dimensions: 175 x 465 x 100 mm (W x H x D)
• Weight: 3.8 kg
• Operating Temperature: 0 to 50 degrees C
• Storage Temperature: -25 to 70 degrees C
• Country of Origin: Germany
• RoHS Compliant: Yes

Dissipates regenerative braking energy from Altivar ATV340 and ATV900 variable speed drives in deceleration and braking applications for industrial machinery.
