Schneider Electric VW3A7732 | Variable Frequency Drive

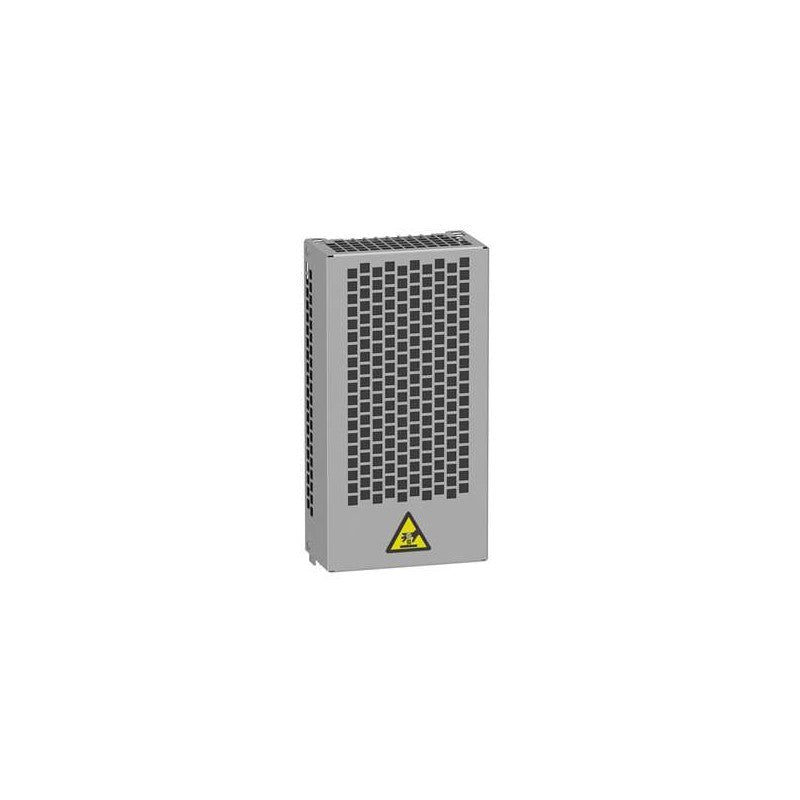

VW3A7732 Schneider Electric - Schneider Electric VW3A7732 Braking Resistor 28 Ohm 0.3 kW IP20. Braking resistor rated at 28 ohms and 0.3 kW average power, designed for Altivar variable speed drives with thermal protection via drive and IP20 protection.

• Brand: Schneider Electric
• Category: Braking Resistor
• Product Type: Braking Resistor
• Series: Altivar
• Range Compatibility: Altivar Easy 310, ATV320, ATV340, Altivar Process ATV900
• Ohmic Value: 28 Ohm
• Average Power: 0.3 kW at 50°C
• Duty Cycle: Light cycle: <= 0.8s braking at 150% torque per 40s cycle; Medium cycle: <= 4s braking at 135% torque per 40s cycle
• Electrical Connection: Terminal, clamping capacity <= 10 mm² / AWG 8
• Protection Type: Thermal protection via drive
• IP Rating: IP20
• Dimensions: 175 x 345 x 100 mm (W x H x D)
• Weight: 2.7 kg
• Operating Temperature: 0 to 50°C
• Storage Temperature: -25 to 70°C

Dissipates regenerative braking energy from Altivar variable speed drives in deceleration and braking applications for industrial machinery.
