Schneider Electric VW3A7604R07 | Variable Frequency Drive

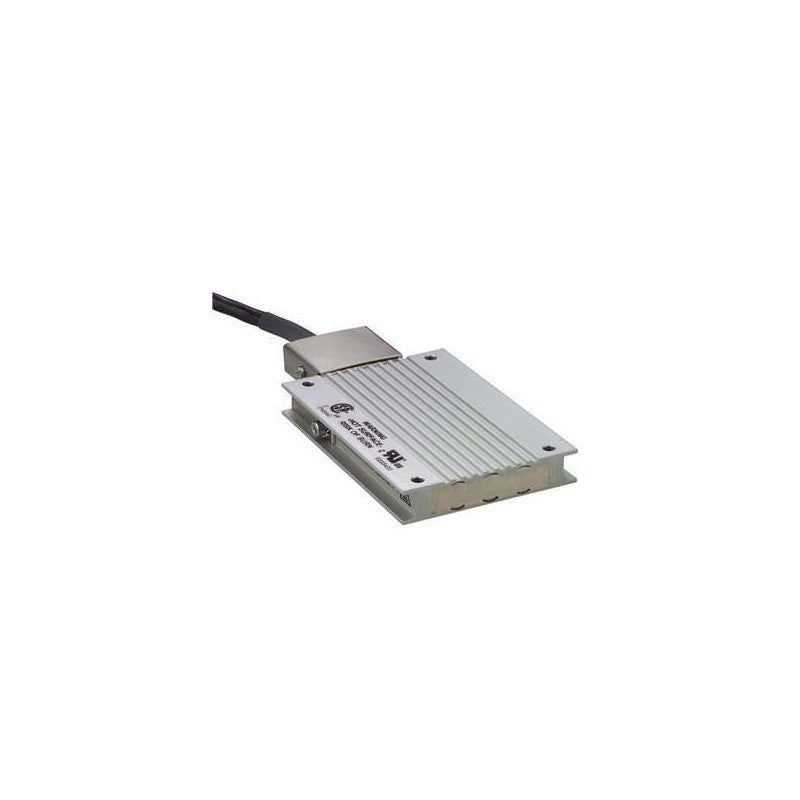

VW3A7604R07 Schneider Electric - Altivar Lexium Braking Resistor 27 Ohm 400W with 0.75m Cable. The Schneider Electric VW3A7604R07 is a braking resistor for Altivar and Lexium series drives. It provides high power dissipation capability with robust IP65 protection for demanding industrial environments.

• Brand: Schneider Electric
• Category: Variable Speed Drive Accessories
• Brand: Schneider Electric
• Product Range: Altivar Lexium
• Product Type: Braking Resistor
• Resistance: 27 Ohm
• Continuous Power: 400W
• Average Power Available: 100W at 50 degrees C
• Cable Length: 0.75m (2.46 ft)
• Energy Peak: 10500J at 480V, 11400J at 400V, 18100J at 230V
• IP Rating: IP65
• Dimensions: 257 x 30 x 204 mm
• Weight: 1.42 kg
• Thermal Protection: Via servo drive
• Operating Temperature: 0 to 50 degrees C
• Storage Temperature: -25 to 85 degrees C
• Warranty: 18 months
• Compatible Drives: ATV32HU55N4, ATV32HU75N4, ATV320 (5.5-7.5kW)
• Standards: RoHS compliant

Designed for use with Altivar 32, Altivar Machine ATV320, and Lexium 32 servo drives in applications requiring high braking energy dissipation such as elevators, cranes, centrifuges, and heavy-duty manufacturing equipment.
