Schneider Electric VW3A7601R20 | Variable Frequency Drive

SKU: VW3A7601R20
(4)
$148.01
-13% $170.21 $148.01
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

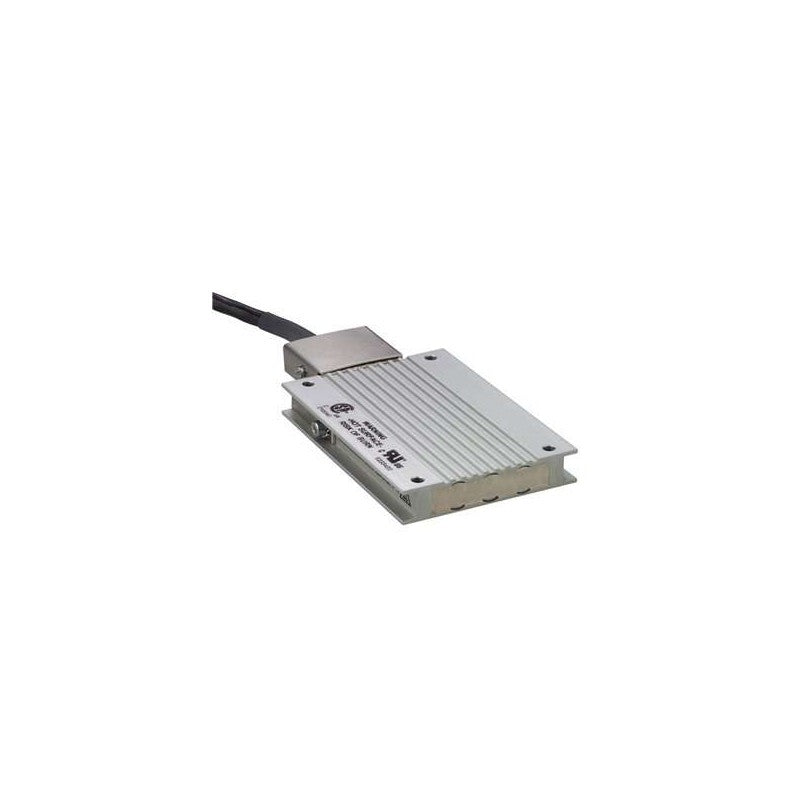

VW3A7601R20 Schneider Electric - Altivar Lexium Braking Resistor 10 Ohm 400W with 2m Cable. The Schneider Electric VW3A7601R20 is a braking resistor for Altivar and Lexium series drives. It provides high power dissipation for dynamic braking of servo motors and variable speed drives.

  • Brand: Schneider Electric
  • Category: Variable Speed Drive Accessories
  • Brand: Schneider Electric
  • Product Range: Altivar Lexium
  • Product Type: Braking Resistor
  • Resistance: 10 Ohm
  • Continuous Power: 400W
  • Cable Length: 2m
  • IP Rating: IP20
  • Peak Power at 115V: 5.6 kW
  • Peak Power at 230V: 18.5 kW
  • Peak Power at 400/480V: 60.8 kW
  • Max Peak Energy at 115V: 16.7 kWs
  • Max Peak Energy at 230V: 13.3 kWs
  • Max Peak Energy at 400/480V: 7.3 kWs
  • Max Braking Time at 115V: 3 s
  • Max Braking Time at 230V: 0.72 s
  • Max Braking Time at 400/480V: 0.12 s
  • Thermal Protection: Via servo drive
  • Package Weight: 1.47 kg
  • Compatible Drives: Lexium 05, Lexium 15, Lexium 28, Lexium 32, Lexium 32i, Lexium 52
  • Standards: RoHS compliant

Designed for use with Lexium series servo drives requiring high braking energy dissipation. Ideal for applications with high inertia loads, vertical movements, and frequent deceleration cycles in industrial automation.
