Schneider Electric VW3A5305 | Variable Frequency Drive

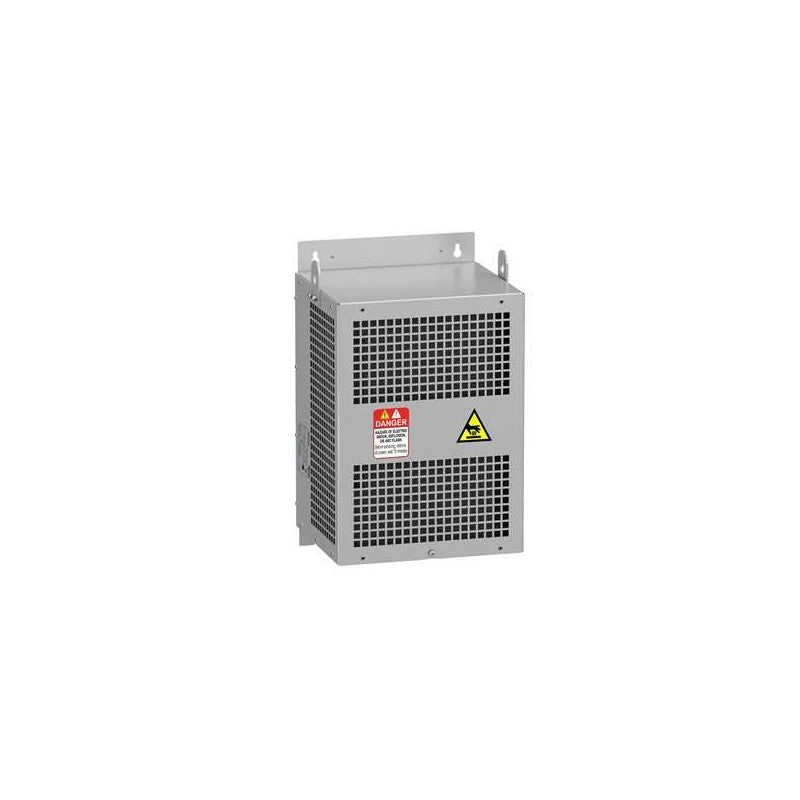

VW3A5305 Schneider Electric - Schneider Electric VW3A5305 Output dv/dt Filter 95A IP20 for Altivar Process. Output dv/dt filter for variable speed drives, rated at 95A, limiting voltage rise to 3000 V/us for motor cable lengths up to 500m unshielded, designed for high-power Altivar drives.

• Brand: Schneider Electric
• Category: Output Filter
• Product Type: dv/dt Filter
• Series: Altivar
• Range Compatibility: Altivar Easy 610, Altivar Process ATV600, ATV900, Altivar Machine ATV340
• Rated Current: 95 A
• dv/dt: 3000 V/us max at 200-240 V and 380-480 V
• Motor Cable Length: Up to 500 m unshielded at 4 kHz, up to 300 m shielded at 4 kHz
• Max Drive Output Frequency: 100 Hz
• Operating Temperature: -10 to 50 degrees C (without derating), 50-60 degrees C (with 1.5%/degree C derating)
• IP Rating: IP20 (IP21 with kit)
• Dimensions: 300 x 590 x 245 mm (W x H x D)
• Standards: REACH, EU RoHS, China RoHS

Limits overvoltages at motor terminals, filters interference, and reduces motor earth leakage current for high-power Altivar variable speed drives with extended motor cable lengths.
