Schneider Electric VW3A5304 | Variable Frequency Drive

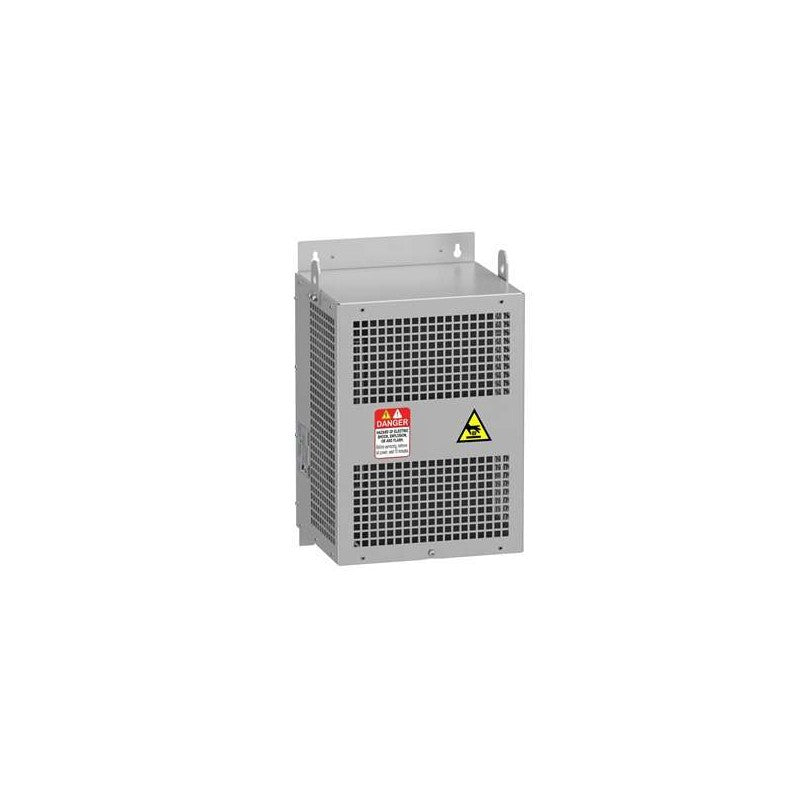

VW3A5304 Schneider Electric - Schneider Electric VW3A5304 Output dv/dt Filter 50A IP20 for Altivar Process. Output dv/dt filter for variable speed drives, rated at 50A, limiting voltage rise to 3000 V/us for motor cable lengths up to 500m unshielded.

• Brand: Schneider Electric
• Category: Output Filter
• Product Type: dv/dt Filter
• Series: Altivar
• Range Compatibility: Altivar Easy 610, Altivar Process ATV600, ATV900, Altivar Machine ATV340
• Rated Current: 50 A
• dv/dt: 3000 V/us max at 200-240 V and 380-480 V
• Motor Cable Length: Up to 500 m unshielded at 4 kHz, up to 300 m shielded at 4 kHz
• Thermal Losses: 65 W at 4 kHz
• Max Drive Output Frequency: 100 Hz
• Operating Temperature: -10 to 50 degrees C (without derating), 50-60 degrees C (with 1.5%/degree C derating)
• IP Rating: IP20 (IP21 with kit VW3A53903)
• Electrical Connection: Terminal block, connection capacity 16 mm² / AWG 4
• Dimensions: 300 x 560 x 245 mm (W x H x D)
• Weight: 18 kg
• Warranty: 18 months
• Standards: REACH, EU RoHS, China RoHS
• Mercury Free: Yes

Limits overvoltages at motor terminals, filters interference, and reduces motor earth leakage current for Altivar variable speed drives with extended motor cable lengths.
