Schneider Electric VW3A5303 | Variable Frequency Drive

SKU: VW3A5303
(5)
$730.00
-13% $839.50 $730.00
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

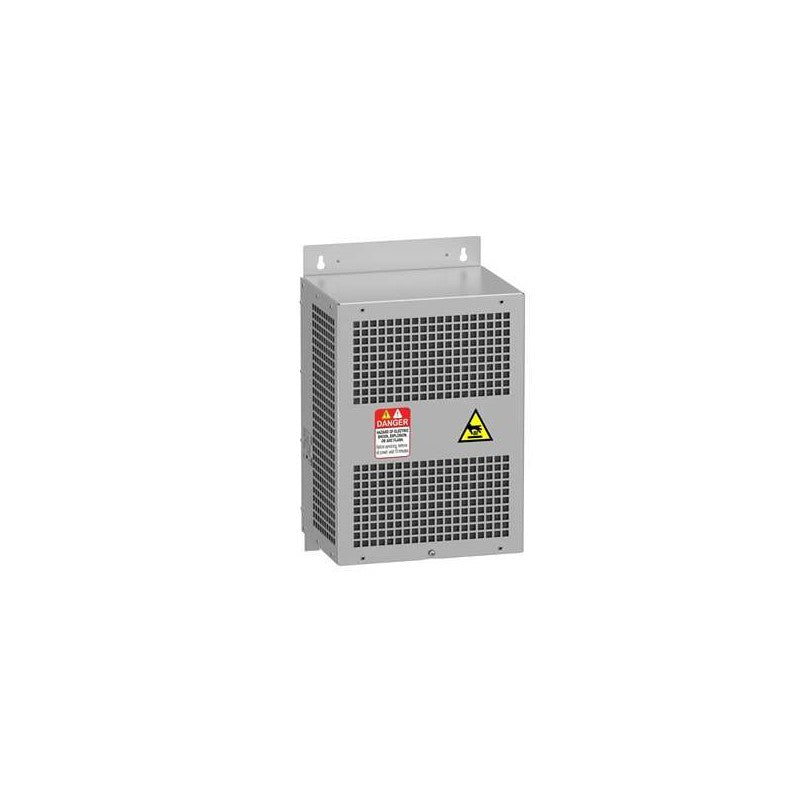

VW3A5303 Schneider Electric - Schneider Electric VW3A5303 Output dv/dt Filter 25A IP20 for Altivar Process. Output dv/dt filter for variable speed drives, rated at 25A with 480V max voltage, limiting voltage rise to 3000 V/us for motor cable lengths up to 500m unshielded.

  • Brand: Schneider Electric
  • Category: Output Filter
  • Product Type: dv/dt Filter
  • Series: Altivar
  • Range Compatibility: Altivar Easy 610, Altivar Process ATV600, ATV630, ATV930, ATV340
  • Maximum Current: 25 A
  • Maximum Voltage: 480 V
  • dv/dt: 3000 V/us max at 200-240 V and 380-480 V
  • Motor Cable Length: Up to 500 m unshielded at 4 kHz, up to 300 m shielded at 4 kHz
  • Thermal Losses: 49 W at 4 kHz
  • Max Drive Output Frequency: 100 Hz
  • Operating Temperature: -10 to 50 degrees C (without derating), 50-60 degrees C (with 1.5%/degree C derating)
  • Operating Altitude: 0-1000 m (without derating), 1000-4000 m (with 1%/100m derating)
  • IP Rating: IP20 (IP21 with kit VW3A53902)
  • Electrical Connection: Terminal block, connection capacity 10 mm² / AWG 6
  • Dimensions: 285 x 530 x 215 mm (W x H x D)
  • Weight: 12 kg
  • Standards: REACH, EU RoHS, China RoHS
  • Mercury Free: Yes

Limits overvoltages at motor terminals, filters interference, and reduces motor earth leakage current for Altivar variable speed drives with extended motor cable lengths.
