Schneider Electric VW3A5302 | Variable Frequency Drive

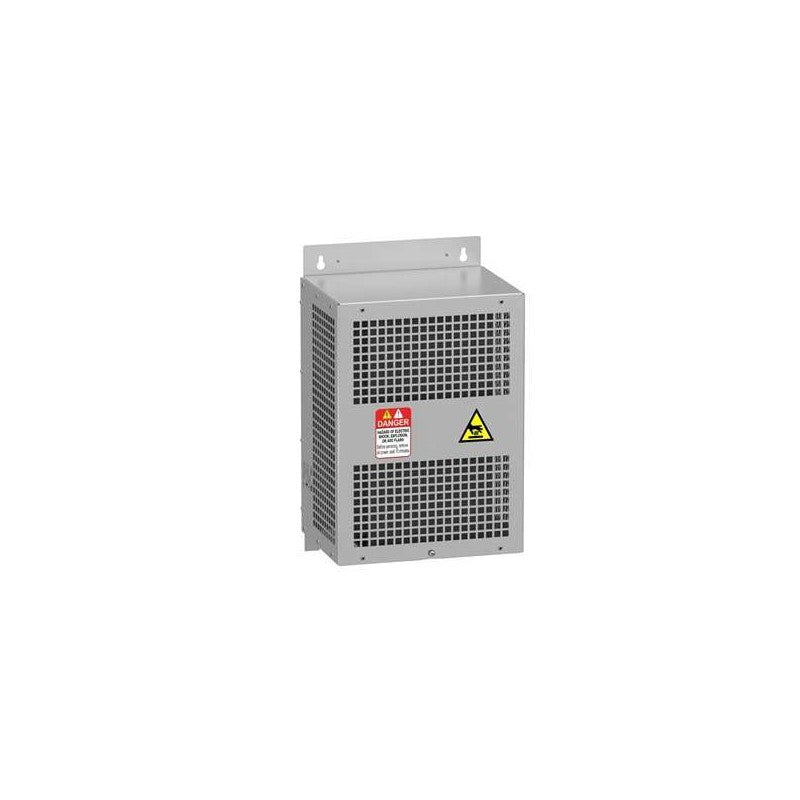

VW3A5302 Schneider Electric - Schneider Electric VW3A5302 Output dv/dt Filter 15A IP20 for Altivar Process. Output dv/dt filter for variable speed drives, rated at 15A with 480V max voltage, limiting voltage rise to 3000 V/us for motor cable lengths up to 300m.

• Brand: Schneider Electric
• Category: Output Filter
• Product Type: dv/dt Filter
• Series: Altivar
• Range Compatibility: Altivar Easy 610, Altivar Process ATV600, ATV630, ATV340
• Maximum Current: 15 A
• Maximum Voltage: 480 V
• dv/dt: 3000 V/us max
• Power Range: 1.5 to 5.5 kW
• Motor Cable Length: Up to 300 m shielded at 4 kHz, up to 300 m unshielded at 4 kHz
• Thermal Losses: At 4 kHz
• Max Drive Output Frequency: 100 Hz
• Operating Temperature: -10 to 50 degrees C (without derating), 50-60 degrees C (with 1.5%/degree C derating)
• IP Rating: IP20 (IP21 with kit VW3A53902)
• Mounting Type: Wall
• Dimensions: 295 x 535 x 215 mm (W x H x D)
• Weight: 12 kg
• Country of Origin: China

Limits overvoltages at motor terminals, filters interference, and reduces motor earth leakage current for Altivar variable speed drives with extended motor cable lengths.
