Schneider Electric VW3A4406 | Variable Frequency Drive

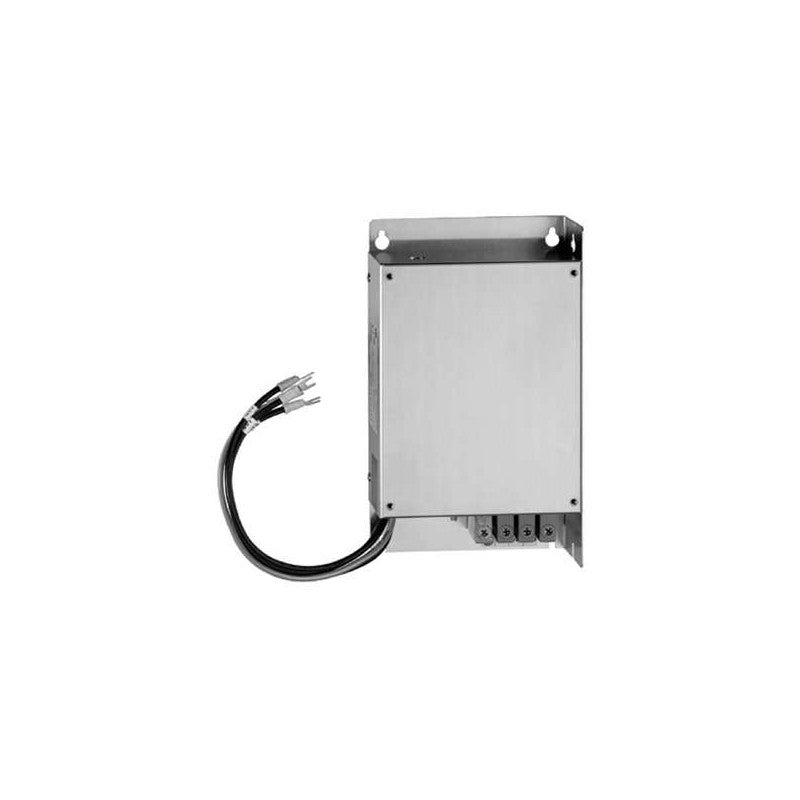

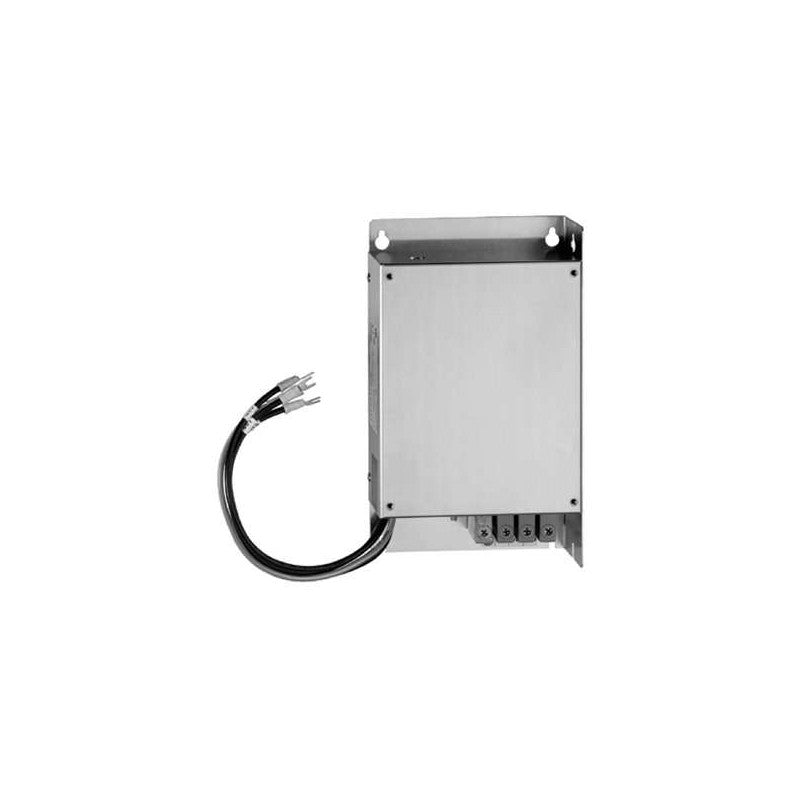

VW3A4406 Schneider Electric - Schneider Electric VW3A4406 Additional EMC Input Filter 90A 3-Phase for Altivar/Lexium. Additional EMC input filter for 3-phase supply, rated at 90A, designed to reduce conducted emissions for Altivar and Lexium drives below EN 55011 Group 1 Class A/B and IEC/EN 61800-3 Category C1/C2 limits.

• Brand: Schneider Electric
• Category: EMC Input Filter
• Product Type: EMC Input Filter
• Series: Altivar / Lexium
• For Use With: Altivar variable speed drives, Lexium servo drives
• Rated Current: 90 A
• Number of Phases: 3
• IP Rating: IP20
• Weight: 15 kg
• Mounting Type: Screw Mount
• Termination Style: Fast-On
• System Compatibility: TN and TT type systems
• Standards: EN 55011 Group 1 Class A/B, IEC/EN 61800-3 Category C1/C2
• Country of Origin: Hungary
• RoHS Status: Exempt
• Mercury Free: Yes

Reduces conducted electromagnetic emissions on the line supply for Altivar and Lexium variable speed drives, ensuring compliance with EMC standards in industrial environments.
