Schneider Electric VW3A3424 | Variable Frequency Drive

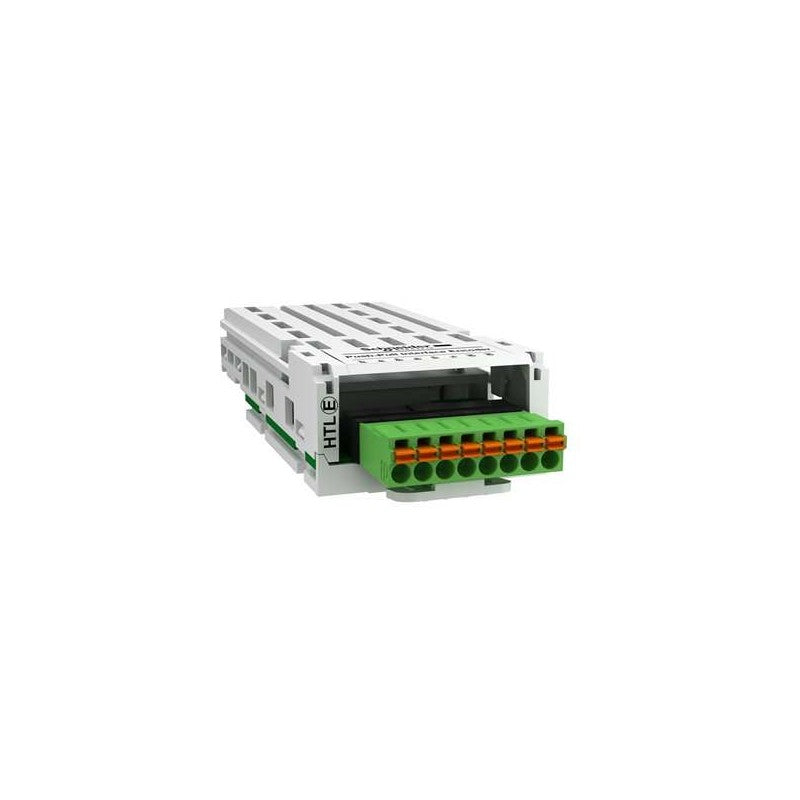

VW3A3424 Schneider Electric - Schneider Electric VW3A3424 HTL Encoder Interface Module. HTL encoder interface module supporting push-pull and open collector signals, designed for Altivar Process ATV900 and ATV340 drives.

• Brand: Schneider Electric
• Category: Encoder Interface Module
• Product Type: Encoder Interface Module
• Range of Product: Altivar
• Range Compatibility: Altivar Process ATV900, Altivar Machine ATV340, Altivar Process Modular
• Encoder Type: High Threshold Logic (HTL)
• Rated Supply Voltage: 12 V DC / 15 V DC / 24 V DC
• Max Supply Current: 0.2 A (12V), 0.175 A (15V), 0.1 A (24V)
• Maximum Operating Frequency: 300 kHz
• Input Signal: Push-pull differential (A/AB/B), Push-pull single ended (A/AB), Open collector differential, Open collector PNP/NPN
• Protection Type: Short-circuit protection, Overload protection
• Max Cable Distance: 500 m
• Connector Type: 1 removable spring connector
• Weight: 0.15 kg
• RoHS Compliant: Yes
• Mercury Free: Yes

HTL encoder signal interface for Altivar Process ATV900, ATV340, and Altivar Process Modular drives in industrial motion control applications.
