Schneider Electric VW3A3423 | Variable Frequency Drive

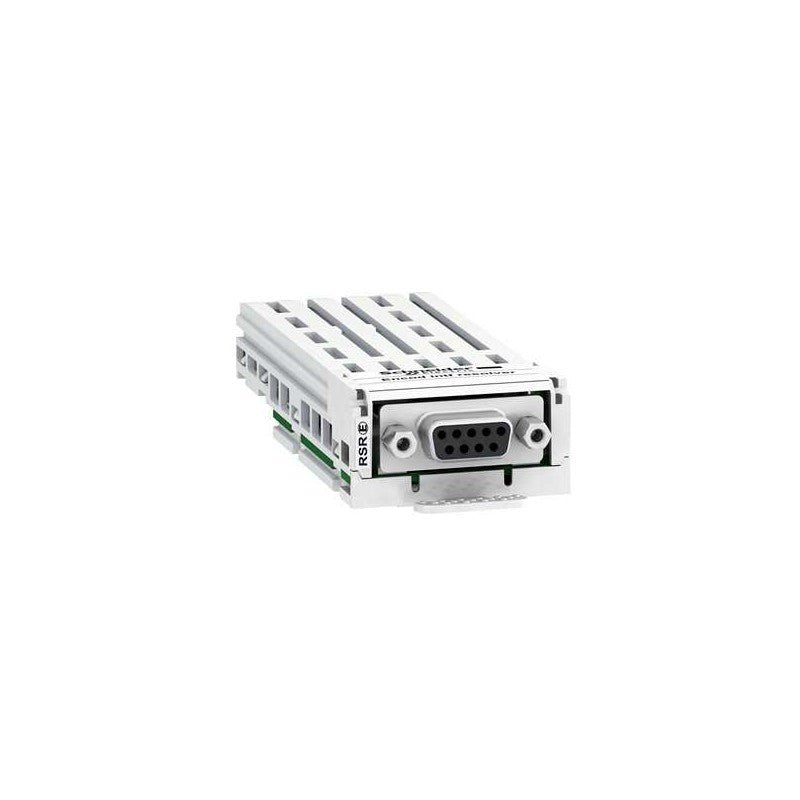

VW3A3423 Schneider Electric - Schneider Electric VW3A3423 Resolver Interface Module. Resolver encoder interface module for Altivar Process ATV900, ATV340, and Altivar Process Modular drives, supporting resolver-type encoders for flux vector control with feedback.

• Brand: Schneider Electric
• Category: Encoder Interface Module
• Product Type: Encoder Interface Module
• Range of Product: Altivar
• Range Compatibility: Altivar Process ATV900, Altivar Machine ATV340, Altivar Process Modular
• Encoder Type: Resolver
• Input Signal: Sin+, Sin-, Cos+, Cos-, Temp+, Temp-
• Output Signal: Ref+, Ref-
• Ratio: 3/10, 1/2, 3/4, 1
• Max Supply Current: 0.05 A
• Max Operating Frequency: 12 kHz
• Max Cable Distance: 100 m (328 ft)
• Protection Type: Overload protection, Short-circuit protection
• Connector Type: 1 female SUB-D 9
• Weight: 0.15 kg
• Country of Origin: ID
• RoHS Compliant: Yes
• Mercury Free: Yes
• PVC Free: Yes

Resolver encoder feedback interface for flux vector control with sensor feedback in Altivar Process ATV900, ATV340, and Modular drives, improving drive performance regardless of motor load conditions.
