Schneider Electric VW3A3420 | Variable Frequency Drive

SKU: VW3A3420
(1)
$94.29
-13% $108.43 $94.29
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

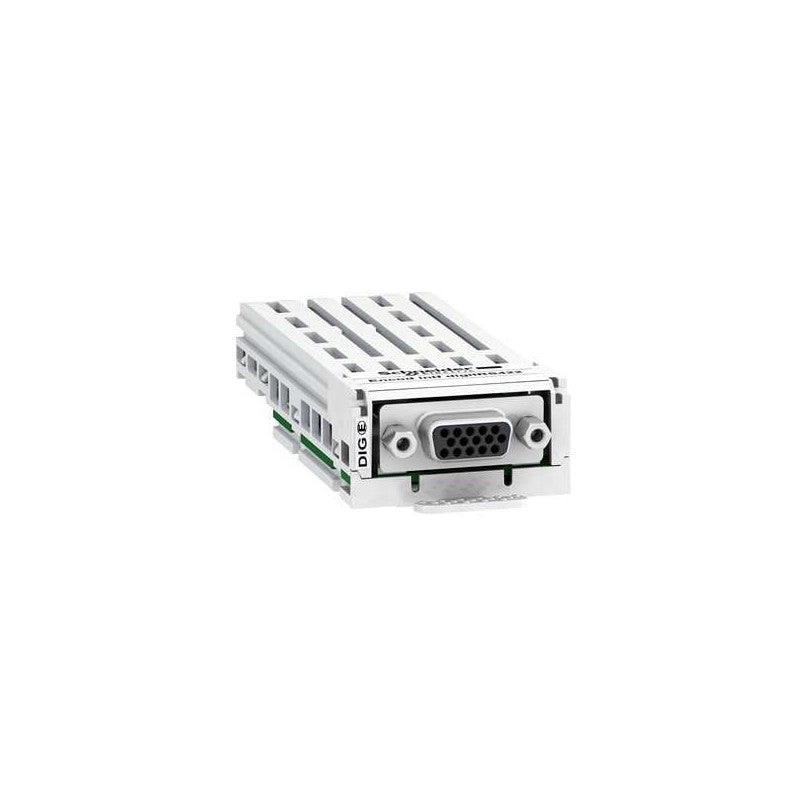

VW3A3420 Schneider Electric - Schneider Electric VW3A3420 Digital Encoder Interface Module. Digital encoder interface module with RS422 protocol, supporting EnDat 2.2, A/B/I incremental, and SSI absolute encoders, designed for Altivar Process ATV900 and ATV340 drives.

  • Brand: Schneider Electric
  • Category: Encoder Interface Module
  • Product Type: Digital Encoder Interface Module
  • Range of Product: Altivar
  • Range Compatibility: Altivar Process ATV900, Altivar Machine ATV340, Altivar Process Modular
  • Communication Protocol: RS422
  • Encoder Types: EnDat 2.2, A/B/I incremental (XCC1 type R/X), SSI absolute (XCC2 type SG, XCC3 type SB)
  • Rated Supply Voltage: 5 V DC / 12 V DC / 24 V DC
  • Supply Current: ≤ 0.25 A (5V), ≤ 0.1 A (12V), ≤ 0.05 A (24V)
  • Maximum Operating Frequency: 1000 kHz
  • Input Signal: TTL, Data+/Data- (EnDat/SSI), A+/A-/B+/B-/I+/I- (A/B/I), Temp+/Temp-
  • Input Impedance: 121 Ω
  • Output Signal: Clock+/Clock- (SSI/EnDat 2.2), Data+/Data- (EnDat 2.2)
  • Protection Type: Overload protection, Short-circuit protection
  • Connector Type: 1 female high density SUB-D 15
  • Weight: 0.15 kg
  • RoHS Compliant: Yes

Encoder signal interface for Altivar Process ATV900, ATV340, and Altivar Process Modular drives in precision motion control applications.
