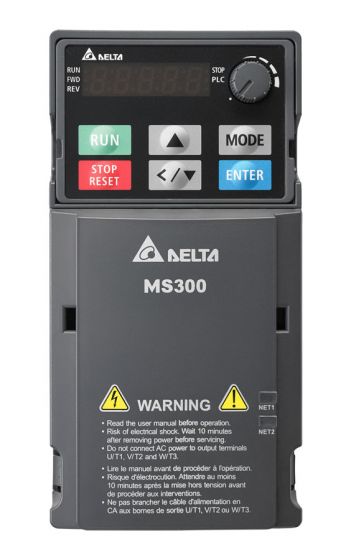

Model: VFD4A2MS43ANSAA
| Parameter | Value |
|---|---|
| Brand | Delta |
| Series | VFD-MS300 Series |
| Motor Output | 1.5 kW / 2 HP |
| Input Voltage | 3-phase 380-480 VAC (-15% to +10%), 50/60 Hz |
| Input Voltage Range | 323-528 VAC |
| Output Voltage | 3-phase, proportional to input |
| Rated Output Current | 4.2 A (Heavy Duty) / 4.6 A (Normal Duty) |
| Max Output Frequency | 0-599 Hz |
| Control Mode | V/F, SVC (Sensorless Vector Control) |
| Overload Tolerance | HD: 150% for 60 sec, 200% for 3 sec; ND: 120% for 60 sec, 150% for 3 sec |
| Motor Support | IM and PM motors |
| Built-in Brake Chopper | Yes |
| Built-in PLC | Yes (2K steps) |
| Built-in Communication | RS-485 (Modbus), USB |
| Optional Communication | CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT |
| STO Safety | Safe Torque Off (SIL2/PLd) |
| Multi-motor Control | Yes (4 IM motor parameters) |
| High-speed Pulse I/O | MI7 input 33 kHz / DFM output 33 kHz |
| PCB Coating | IEC 60721-3-3 class 3C2 |
| Protection Rating | IP20 |
| Frame Size | B1 |
| Operating Temperature | -10 to 40°C |
| Dimensions | 72 x 142 x 143 mm (W x H x D) |
| Certification | UL / CE / RoHS / TUV |
