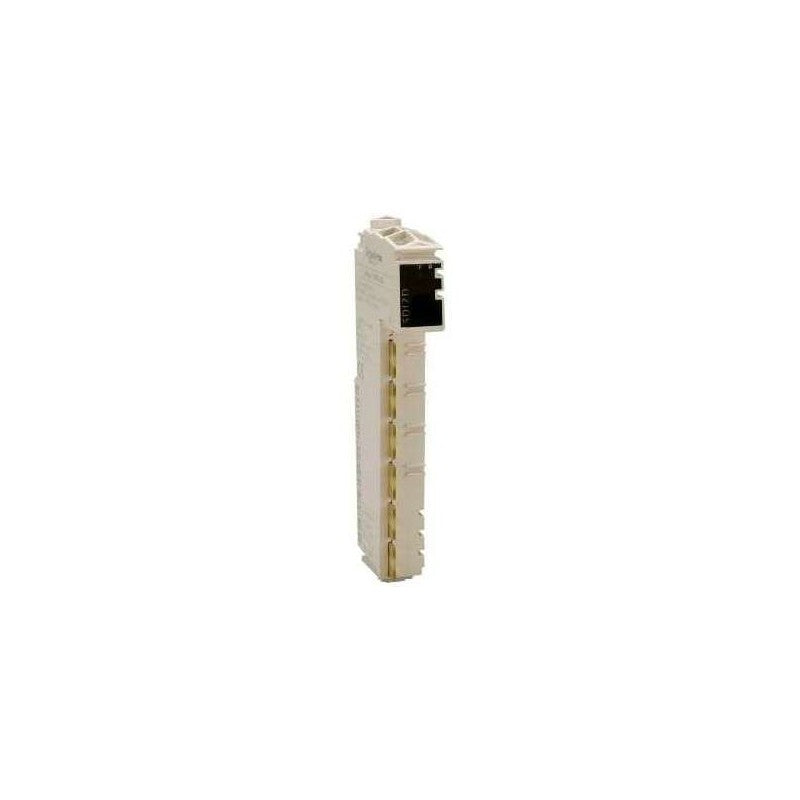

TM5SMM6D2L Schneider Electric - Modicon TM5 Mixed I/O Module, 4 DI + 1 AI + 2 DO Transistor + 1 AO, 24V DC. Mixed I/O module for Modicon TM5 system combining 4 discrete inputs, 1 analog input, 2 transistor discrete outputs, and 1 analog output in a compact form factor. Supports voltage and current analog signals with 12-bit resolution. Features sink input logic and source output logic at 24V DC.

• Brand: Schneider Electric
• Category: Mixed I/O Module
• Product Type: Mixed I/O Module
• Range of Product: Modicon TM5
• Discrete Input Number: 4
• Discrete Input Voltage: 24 V DC (20.4...28.8 V)
• Discrete Input Logic: Sink
• Discrete Input Current: 3.3 mA
• Input Impedance: 7.18 kOhm (digital), >= 1 MOhm (analog, +/-10V)
• Input Filtering: <= 2 us hardware, 1 ms default, <= 25 ms configurable
• Analog Input Number: 1
• Analog Input Type: Voltage +/-10 V, Current 0...20 mA / 4...20 mA
• Analog Input Resolution: 12 bits + sign (voltage), 12 bits (current)
• Sampling Duration: 300 us (analog input)
• Common Mode Rejection: 70 dB DC, 70 dB at 50 Hz
• Discrete Output Number: 2
• Discrete Output Type: Transistor
• Discrete Output Logic: Source
• Output Voltage: 24 V DC (20.4...28.8 V)
• Discrete Output Current: <= 0.5 A per output, <= 1 A total
• Peak Output Current: 14 A
• Switching Frequency: 100 Hz (resistive load)
• Leakage Current: 5 uA when switched off
• Analog Output Number: 1
• Analog Output Type: Voltage +/-10 V, Current 0...20 mA
• Analog Output Resolution: 12 bits + sign (+/-10V), 12 bits (0...20 mA)
• Conversion Time: 300 us (analog output)
• Response Time: <= 250 us (digital output), 1 ms (analog output)
• Measurement Error: < 0.08% FS at 25°C, < 0.15% FS at 25°C (output)
• Isolation: 500 Vrms AC (channel to bus), no insulation between channels
• Supply Voltage: 24 V DC (-15...+20%)
• Local Signalling: 1 LED green + 1 LED red (power), 4 LEDs (input status), 2 LEDs (output status)
• Colour: White
• Range Compatibility: Modicon LMC058, Modicon M258
• Country of Origin: Austria
• Width: 12.5 mm
• Length: 75 mm
• Depth: 99 mm
• Standards: GOST-R, cULus, CSA C22.2 No 213/142, UL 508, IEC 61131-2, CE

Provides combined digital and analog I/O in a single compact module for Modicon TM5 automation systems, ideal for applications requiring mixed signal processing in packaging, material handling, and machine control where space is limited.
