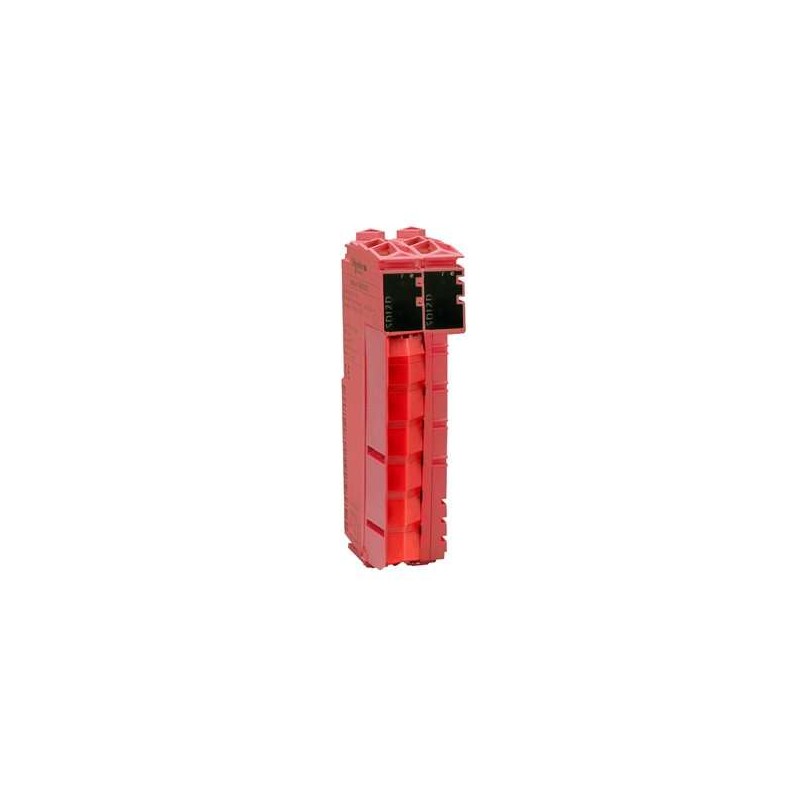

Schneider Electric TM5SDO4TFS | Industrial Automation Component

TM5SDO4TFS Schneider Electric - TM5SDO4TFS. Safety DC discrete output module for Modicon TM5 with 4 solid-state transistor outputs. Provides 24V DC source logic output at 0.5A per channel with 2A maximum per output common and 12A peak current. Certified to SIL 3 per IEC 61508 and IEC 62061, PL e per EN ISO 13849-1. Features short-circuit and overload protection, 500Vrms AC insulation between channel and bus, and 500Hz maximum switching frequency. Equipped with 8 status LEDs including power supply and safety status indicators.

• Brand: Schneider Electric
• Category: Safety Digital Output Module
• Product Type: Safety DC Discrete Output Module
• Product Series: Modicon TM5
• Number of Outputs: 4
• Output Type: Solid State (Transistor)
• Output Logic: Source
• Output Voltage: 24V DC (20.4 to 28.8V)
• Current per Channel: 0.5 A
• Max Current per Output Common: 2 A
• Peak Output Current: 12 A
• Switching Frequency: 500 Hz (resistive)
• Safety Level: SIL 3 (IEC 61508), SIL 3 (IEC 62061), PL e (EN 13849-1)
• MTTFd: > 100 years
• Protection Type: Short-circuit, Overload
• Isolation: 500 Vrms AC (channel to bus)
• Max Leakage Current: 10 uA (when off)
• Max Power Consumption: 0.25 W (bus), 1.3 W (internal)
• Status LEDs: 8 LEDs (power, safety, output status)
• Protection Rating: IP20
• Operating Temperature: -10 to 50 °C (vertical), -10 to 55 °C (horizontal)
• Green Premium: Yes
• Weight: 0.025 kg
• Warranty: 18 months

Provides safety-rated digital outputs in Modicon TM5 safety systems, ensuring safe control of actuators and field devices in machinery applications requiring SIL 3 and PL e safety performance levels.
