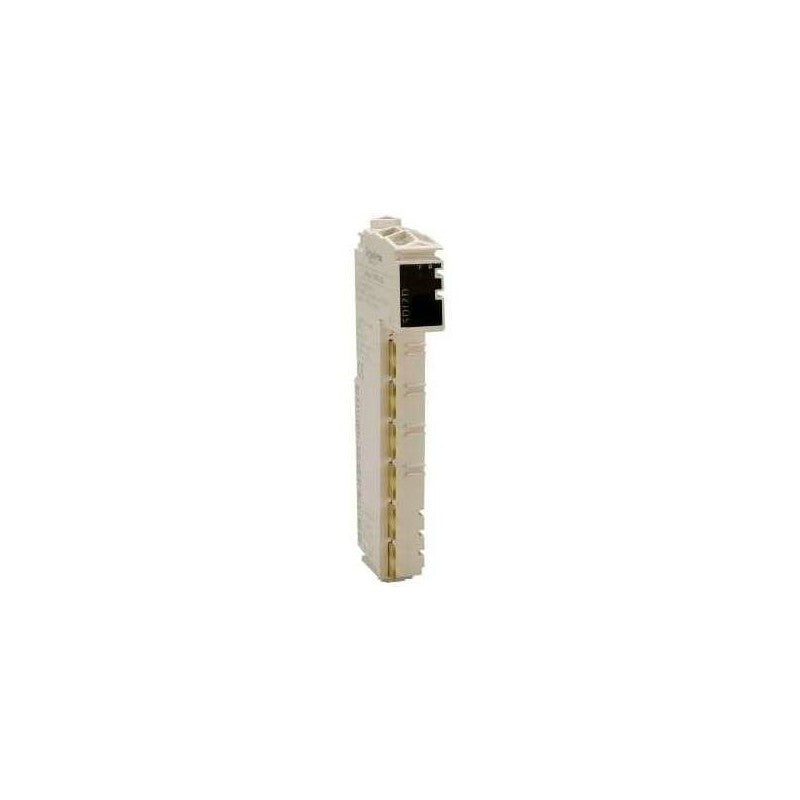

Schneider Electric TM5SDO16T | Industrial Automation Component

TM5SDO16T Schneider Electric - Modicon TM5 Discrete Output Module. Discrete output module from the Modicon TM5 series with 16 transistor (source-type) digital outputs at 24 V DC and 0.5 A per channel. Compatible with PacDrive LMC motion controllers and Modicon M258 logic controllers, featuring built-in protection against reverse polarity, overload, and short circuits.

• Brand: Schneider Electric
• Category: PLC Output Module
• Series: Modicon TM5
• Product Type: Discrete Output Module
• Number of Output Channels: 16
• Output Type: Transistor (Source)
• Rated Output Voltage: 24 V DC
• Output Voltage Range: 20.4-28.8 V
• Current per Channel: 0.5 A
• Peak Output Current: 3 A
• Max Current per Output Common: 8 A
• Switching Frequency: ≤500 Hz (resistive)
• Response Time: ≤300 µs
• Max Leakage Current (off): 5 µA
• Protection: Reverse polarity, overload, short-circuit
• Isolation: 500 Vrms AC (channel to bus)
• Compatibility: Modicon M258, LMC058, PacDrive LMC Pro/Pro 2/Eco
• Country of Origin: Austria
• Green Premium: Yes

Ideal for industrial automation and process control, motion control systems with PacDrive controllers, logic controller I/O expansion, and high-density digital output control in manufacturing.
