Schneider Electric TM5SDO12T | PLC & DCS Module

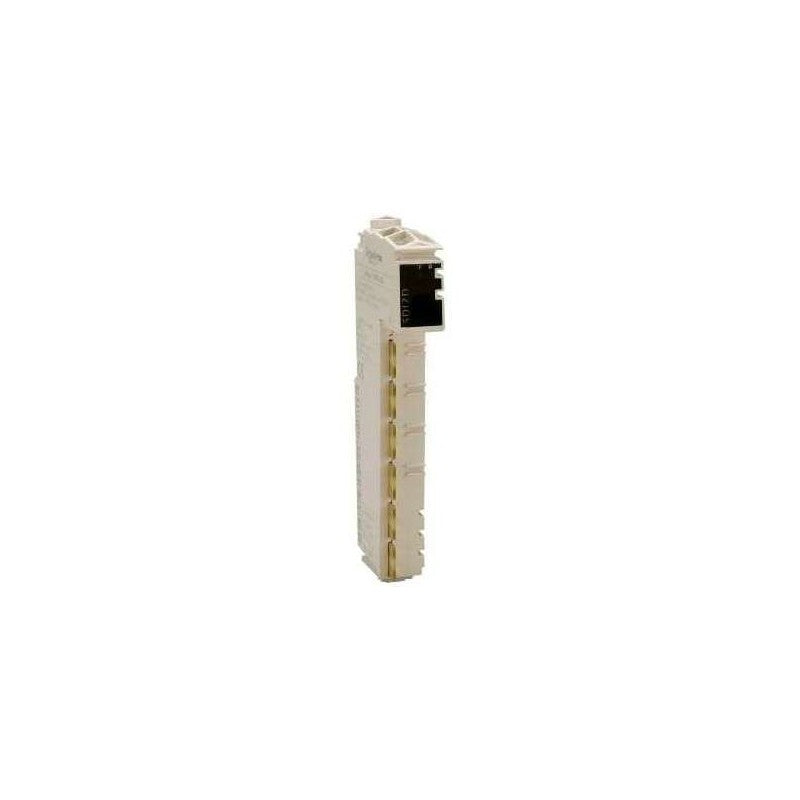

TM5SDO12T Schneider Electric - Digital Output Module Modicon TM5 - 12 Transistor Outputs (Source Type) - 24V DC - 0.5A per Channel. The Schneider Electric TM5SDO12T is a digital output module from the Modicon TM5 range, designed for use with Modicon LMC058, M258, and PacDrive LMC logic controllers. It provides 12 transistor outputs in source type configuration, each rated at 0.5A with 24V DC supply voltage. The module uses 1-wire connection and supports output voltages from 20.4 to 28.8V DC. Each output common supports up to 6A continuous current with 12A peak. Built-in protections include overload, reverse polarity, and short-circuit protection. The module features 500Vrms AC isolation between channels and bus, with a switching frequency up to 500Hz and response time of 300 microseconds or less. It is a Green Premium product with a carbon footprint of 84 kg CO2 equivalent, manufactured in Austria.

• Brand: Schneider Electric
• Category: PLC I/O Modules
• Range of Product: Modicon TM5
• Product Type: Discrete Output Module
• Output Type: Transistor (source type)
• Number of Output Channels: 12
• Output Voltage: 20.4-28.8 V DC
• Output Current per Channel: 0.5 A
• Current per Output Common: 6 A maximum (12 A peak)
• Connection Type: 1-wire
• Switching Frequency: 500 Hz maximum
• Response Time: 300 microseconds or less
• Off-state Leakage Current: 5 microamps
• Protection: Overload, reverse polarity, short-circuit
• Isolation Voltage: 500 Vrms AC (channel to bus)
• Supply Current for Sensors: 500 mA
• Current Consumption at 5V: 52 mA
• Current Consumption at 24V: 48 mA
• Power Dissipation: 2.04 W maximum
• Mounting Type: DIN rail
• Net Weight: 0.025 kg
• IP Rating: IP20
• Carbon Footprint: 84 kg CO2 eq (total lifecycle)
• Country of Origin: Austria
• GTIN: 00785901821939
• Sustainable Offer Status: Green Premium product
• Compatible Controllers: Modicon LMC058, M258, PacDrive LMC
• Standards: CSA, cULus

Providing 12 digital transistor outputs for Modicon LMC058, M258, and PacDrive LMC controller applications in industrial automation systems
