Schneider Electric TM5SDM12DT | PLC & DCS Module

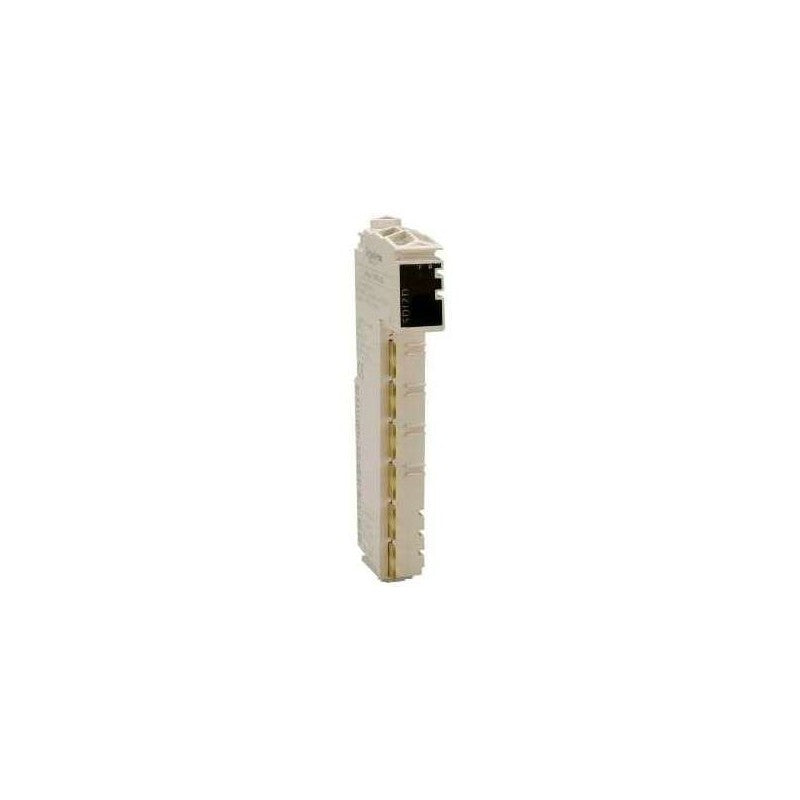

TM5SDM12DT Schneider Electric - Modicon TM5 Discrete I/O Module, 8 DI / 4 DO Transistor, 24V DC, 1-Wire. Discrete I/O module for Modicon TM5 system with 8 digital inputs and 4 transistor outputs. Operates at 24V DC with 1-wire connection. Features sink input logic and source output logic with built-in short-circuit, overload, and reverse polarity protection. Equipped with status LEDs for all I/O channels.

• Brand: Schneider Electric
• Category: Discrete I/O Module
• Product Type: Discrete I/O Module
• Range of Product: Modicon TM5
• Discrete Input Number: 8
• Discrete Input Voltage: 24 V DC
• Input Voltage Limits: 20.4...28.8 V
• Discrete Input Logic: Sink
• Discrete Input Current: 3.75 mA
• Input Impedance: 6.4 kOhm
• Input Filtering: <= 100 ms hardware, 0...25 ms configurable
• Discrete Output Number: 4
• Discrete Output Type: Transistor
• Discrete Output Logic: Source
• Output Voltage: 24 V DC (20.4...28.8 V)
• Current Per Channel: 0.5 A
• Current Per Output Common: <= 2 A
• Peak Output Current: <= 12 A
• Switching Frequency: <= 500 Hz (resistive load)
• Voltage Drop: <= 0.3 V at 500 mA (output)
• Leakage Current: 5 uA when switched off
• Response Time: <= 300 us (state 0 to 1 and 1 to 0 for output)
• Short-Circuit Protection: Yes
• Overload Protection: Yes
• Reverse Polarity Protection: Yes
• Power Dissipation: <= 1.52 W
• Current Consumption: 21 mA at 24V DC (all inputs On), 42 mA at 5V DC bus
• Local Signalling: 8 LEDs green (input), 4 LEDs yellow (output), 1 LED red + 1 LED green (power)
• Electrical Connection: 1 wire
• Product Weight: 0.025 kg
• Operating Temperature: 0...60°C (derating, horizontal), 0...55°C (no derating, horizontal), 0...50°C (vertical)
• Storage Temperature: -25...70°C
• IP Degree of Protection: IP20
• Operating Altitude: 0...2000 m
• Country of Origin: Austria
• Range Compatibility: Modicon LMC058, Modicon M258
• Product Certifications: CSA, C-Tick, CULus, GOST-R
• Standards: IEC 61131-2, UL 508, CSA 22-2 No 142, CSA 22-2 No 213

Provides digital I/O expansion for Modicon TM5 automation systems in packaging, material working, material handling, and machine control applications, enabling flexible and scalable remote I/O configurations.
