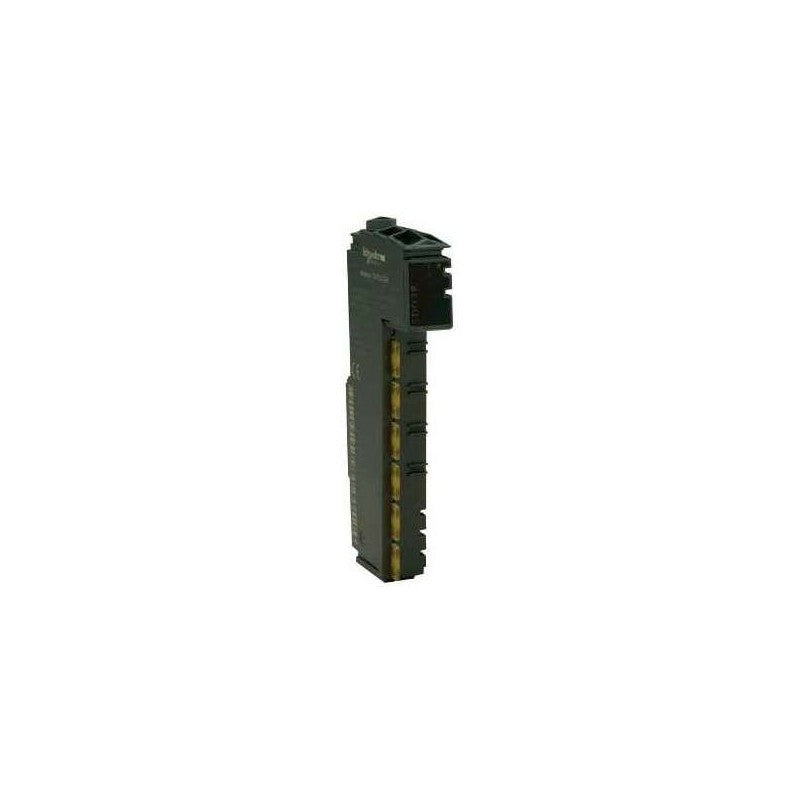

Schneider Electric TM5SDI6U | PLC & DCS Module
Schneider Electric TM5SDI6U | PLC & DCS Module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Schneider Electric

Schneider Electric TM5SDI6U | PLC & DCS Module

SKU: TM5SDI6U
(3)
$120.55
-13% $138.63 $120.55
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

TM5SDI6U Schneider Electric - Schneider Electric TM5SDI6U Discrete Input Module. Modicon TM5 discrete input module with 6 digital inputs, 100-120 V AC, 1 wire connection, designed for Modicon LMC058, M258, and PacDrive LMC motion controllers.

  • Brand: Schneider Electric
  • Category: PLC Input Module
  • Product Type: Discrete Input Module
  • Series: Modicon TM5
  • Number of Inputs: 6
  • Input Voltage: 100...120 V AC
  • Input Current: 10 mA
  • Input Filtering: ≤ 25 ms (configurable), ≤ 30 ms (hardware off), ≤ 15 ms (hardware on)
  • Isolation: 1500 V AC between channel and bus; no insulation between channels
  • Current Consumption: 42 mA at 5 VDC bus
  • Max Power Dissipation: 0.89 W
  • Electrical Connection: 1 wire
  • Compatible Controllers: Modicon LMC058, M258, PacDrive LMC
  • Dimensions: 99 x 12.5 x 75 mm
  • Weight: 0.025 kg
  • Local Signalling: 1 LED green/red (power), 6 LEDs green (input status)
  • Protection Rating: IP20
  • Operating Temperature: -10 to 50°C (vertical), -10 to 60°C (horizontal with derating)
  • Storage Temperature: -40 to 70°C
  • Operating Altitude: 0...2000 m
  • Certifications: CE, CSA, cULus, C-Tick, GOST-R
  • Standards: IEC 61131-2, UL 508, CSA C22.2 No 213, CSA C22.2 No 142

Digital input acquisition for Modicon LMC058, M258, and PacDrive LMC motion controllers in industrial automation systems.

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
★ ★ ★ ★ ★
