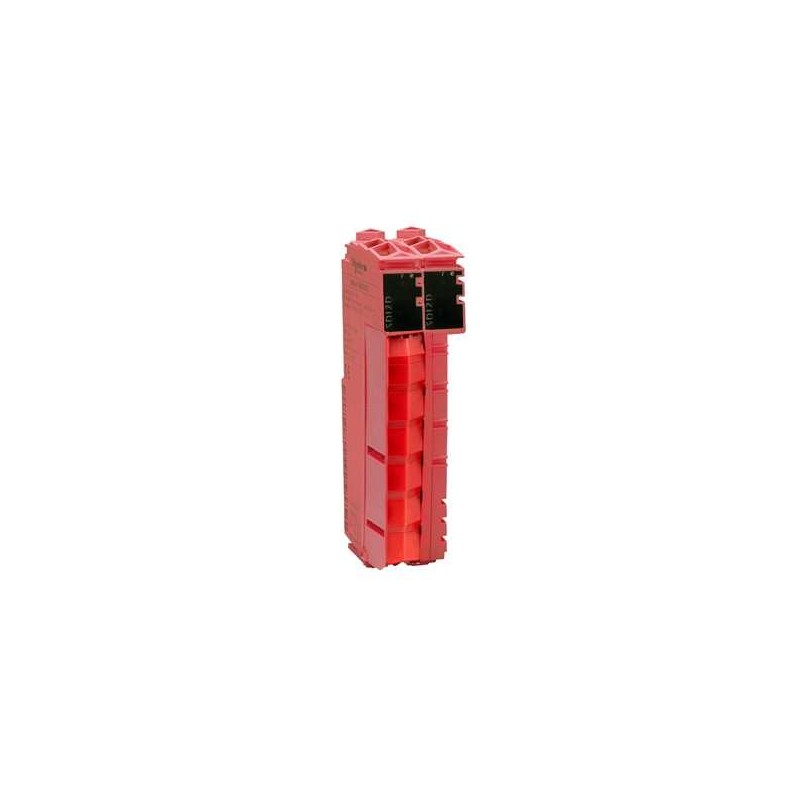

Schneider Electric TM5SDI2DFS | Industrial Automation Component

TM5SDI2DFS Schneider Electric - Modicon TM5 Safety DC Discrete Input Module, 2 Safety Inputs, 24V DC, Sink, 2 Pulse Outputs. Safety DC discrete input module for Modicon TM5 system with 2 safety-related digital inputs and 2 test pulse outputs. Operates at 24V DC with sink input logic. Features configurable input filters, short-circuit and overload protection. Compliant with PL e/SIL 3 safety standards.

• Brand: Schneider Electric
• Category: Safety Input Module
• Product Type: Safety DC Discrete Input Module
• Range of Product: Modicon TM5
• Discrete Input Number: 2 (safety-related)
• Discrete Input Voltage: 24 V DC
• Input Voltage Limits: 20.4...28.8 V
• Discrete Input Logic: Sink
• Discrete Input Current: 3.45 mA
• Input Impedance: 7 kOhm
• Voltage State 0 Guaranteed: <= 5 V
• Voltage State 1 Guaranteed: >= 15 V
• Input Filtering: <= 500 ms configurable, <= 150 ms hardware
• Pulse Outputs: 2 (test outputs)
• Maximum Supply Current for Sensors: 300 mA
• Maximum Power Consumption: 1 W internal, 0.25 W bus
• Protection Type: Short-circuit protection, overload protection
• Isolation: 500 Vrms AC (channel to bus), no insulation between channels
• Maximum Voltage Drop: < 0.6 V at 100 mA
• Local Signalling: 1 LED green + 1 LED red (power), 2 LEDs green/red (input status), 2 LEDs red (safety status)
• Electrical Connection: 2 wires
• Colour: Red
• Safety Level: PL e (EN ISO 13849-1), SIL 3 (IEC 61508), SIL 3 (IEC 62061)
• Range Compatibility: Modicon M258, Modicon LMC058, PacDrive LMC
• Product Compatibility: Motion controller, Logic controller, PacDrive LMC Pro 2/Pro/Eco
• Country of Origin: Austria

Provides safety-rated digital input channels for Modicon TM5 automation systems, enabling monitoring of safety devices such as emergency stop buttons, safety switches, and light curtains in packaging, material handling, and machine control applications.
