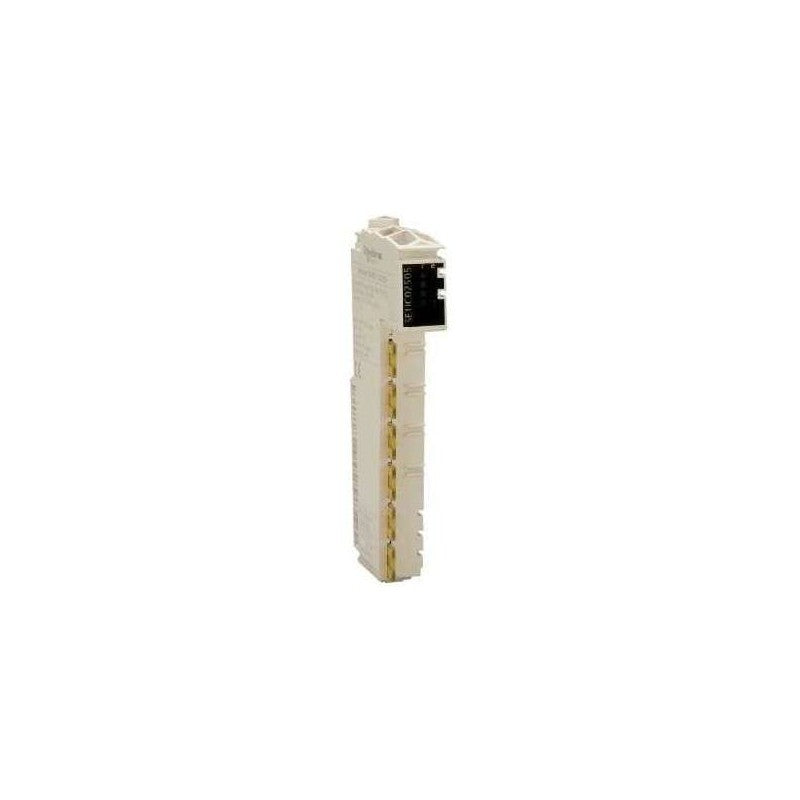

Schneider Electric TM5SDI2DF | PLC & DCS Module

TM5SDI2DF Schneider Electric - Counter Module for Modicon TM5 - 2 Inputs, 24V DC Sink, 50 kHz. The Schneider Electric TM5SDI2DF is a counter module for the Modicon TM5 series, featuring 2 fast discrete inputs with 24V DC sink logic and 3-wire connection. The module supports multiple functions including frequency meter, period measurement, event counting, upcounting/downcounting, and interval measurement with a counting frequency of 50 kHz. It is compatible with Modicon M258 logic controllers and LMC058 motion controllers, and provides 500 Vrms AC isolation between channels and the bus.

• Brand: Schneider Electric
• Category: PLC Modules
• Range of Product: Modicon TM5
• Product Type: Counter Module
• Discrete Inputs: 2
• Input Voltage: 24 V DC
• Input Current: 10.5 mA at 24 V
• Input Logic: Sink
• Counting Frequency: 50 kHz
• Functions: Frequency meter, Period measurement, Frequency generator, Upcounting, Downcounting, Interval measurement, Event counting
• Input Filtering: <=10 ms hardware, <=25 ms configurable by software
• Isolation: 500 Vrms AC between channel and bus, no isolation between channels
• Current Consumption: 30 mA at 5V DC bus, 34 mA at 24V DC I/O
• Power Dissipation: <=0.97 W
• Range Compatibility: Modicon M258, Modicon LMC058
• IP Degree of Protection: IP20
• Operating Temperature: 0-55 degrees C (horizontal), 0-50 degrees C (vertical)
• Net Weight: 0.025 kg
• Country of Origin: Austria
• GTIN: 00785901685272
• Certifications: CSA, GOST-R, cULus, C-Tick
• Sustainable Offer Status: Green Premium product
• RoHS Compliance: Compliant
• Warranty: 18 months

High-speed counting and frequency measurement in Modicon M258 and LMC058 automation systems
